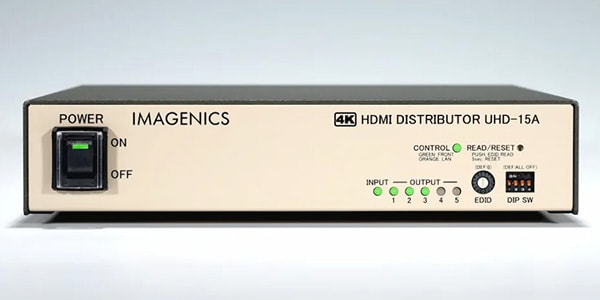

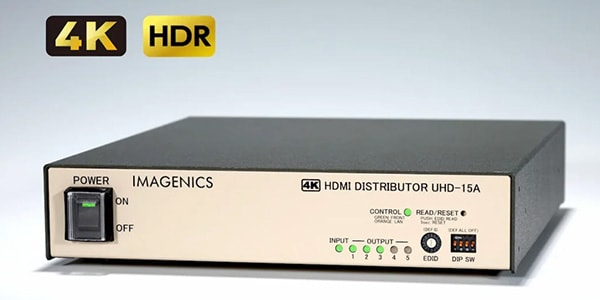

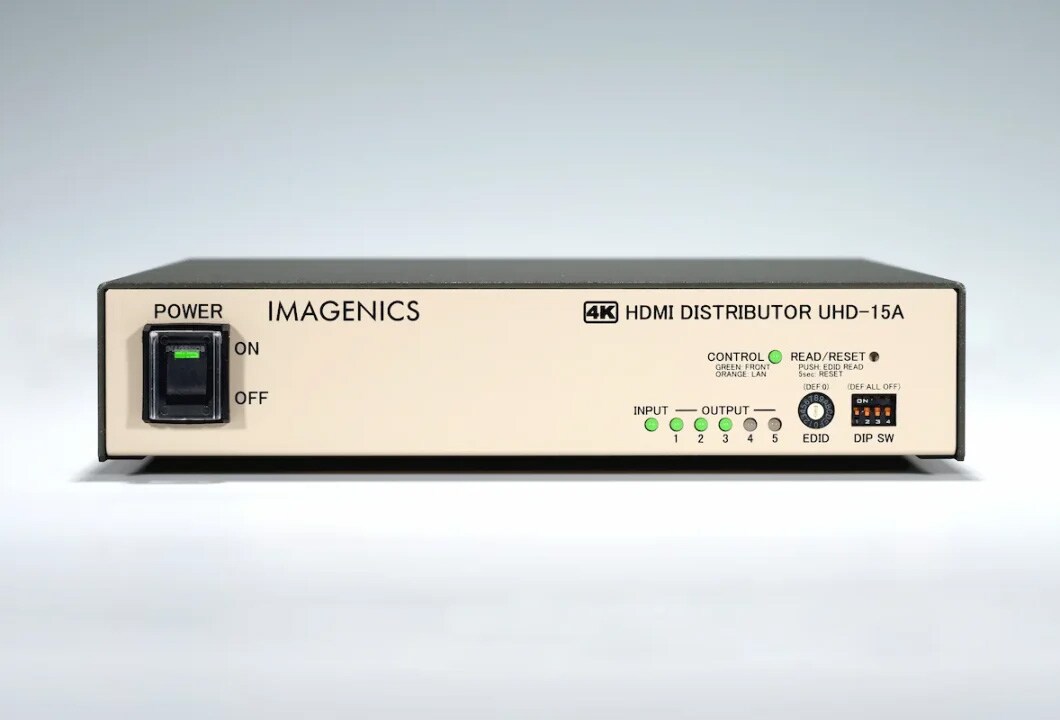

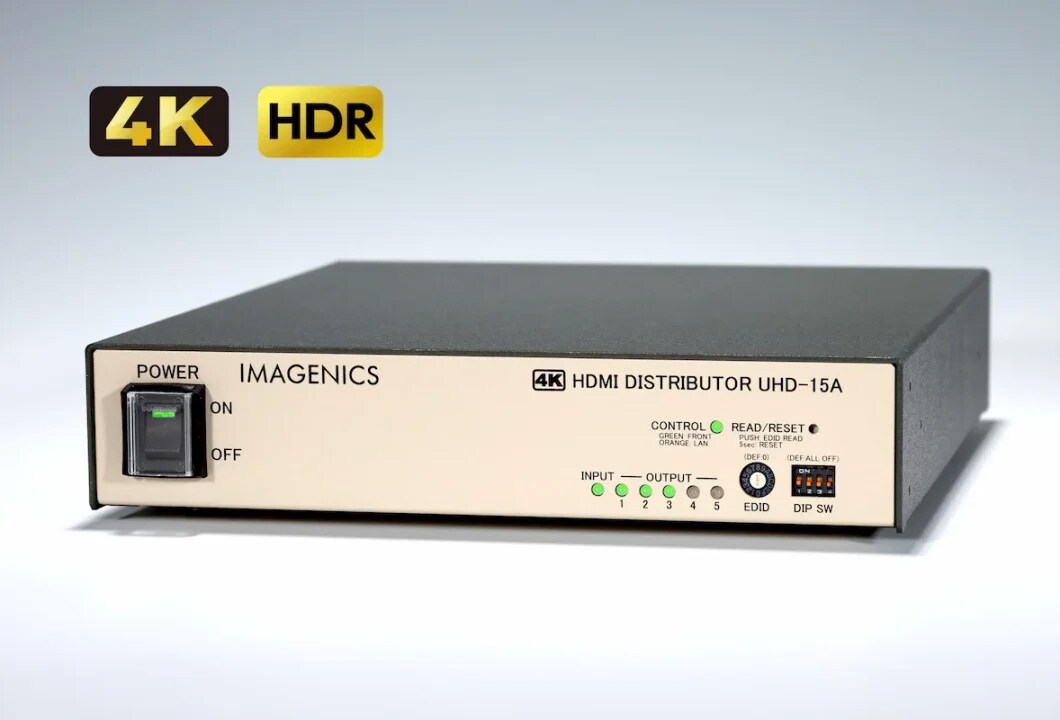

IMAGENICS / UHD-15A

＜＜Aug 2025 New Product！＞＞ This multi-functional HDMI splitter with one input and five outputs supports 4K resolution HDMI signals. Each output channel is equipped with 4K → FHD down-conversion and color space conversion.

■1 Input, 5 Output HDMI Splitter
■Video Signal Format:
TMDS Single Link Signal (HDMI and DVI)
Supported Resolutions: 480i to 1080p, 4K60/4:4:4 / VGA to UXGA and WUXGA (Reduced Blanking)
Supported Pixel Clock Rates: 25 MHz to 600 MHz
Supported TMDS Data Rates: 0.75 Gbps to 18 Gbps
HDCP 1.4/2.2 Compatible, Deep Color (up to 36-bit), HDR Compatible

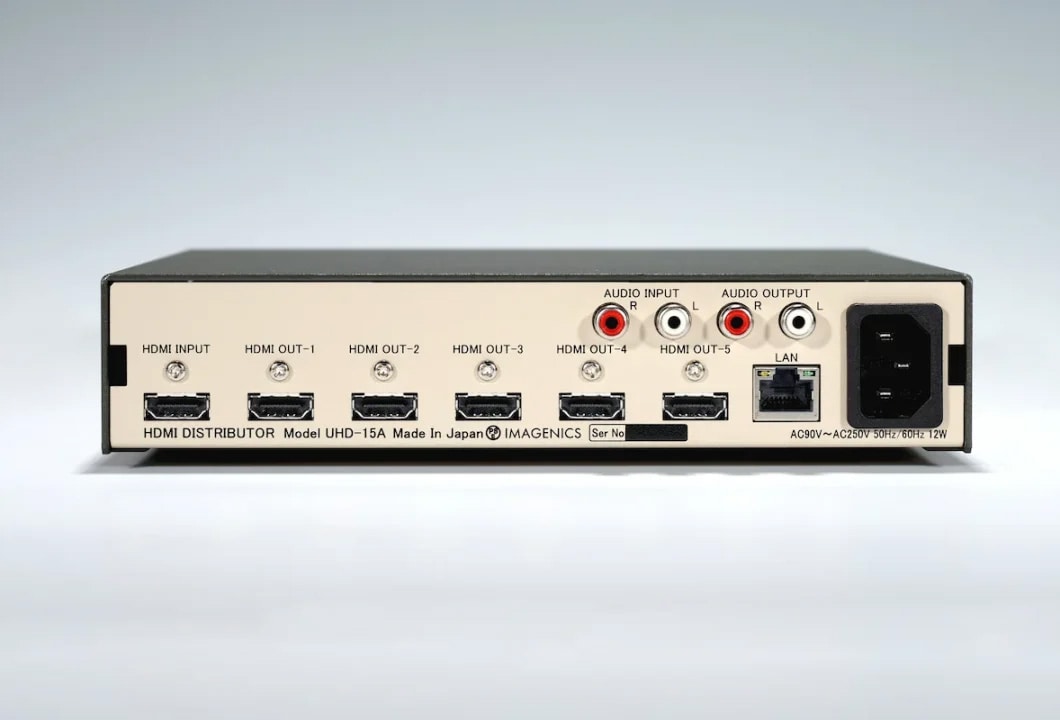

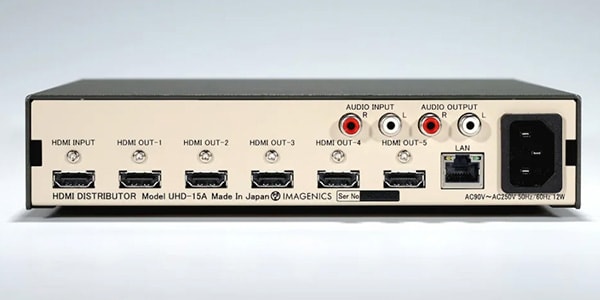

■Video Input Terminal: 1 x HDMI Type A 19-pin Connector
■Video Output Terminal: 1 x HDMI Type A 19-pin Connector, 5 Outputs
■Size: 210 (W) x 44 (H) x 230 (D) mm (excluding protrusions)
■Weight: Approximately 1.8 kg
■Accessories:
Domestic Power Cable (3P-3SL) 1 x 3P-2P conversion plug
6 x HDMI cable retention brackets (CL-2)
