IMAGENICS / CRO-DVC13

This converter has a built-in down-converter that converts DVI-D signals to composite video signals. [LF] The included conversion connector also supports HDMI signals, and in that case the embedded audio signal can be output as analog.

DVI (HDMI) Input Analog Composite Video Converter

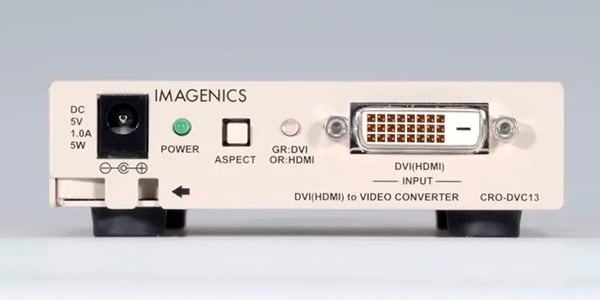

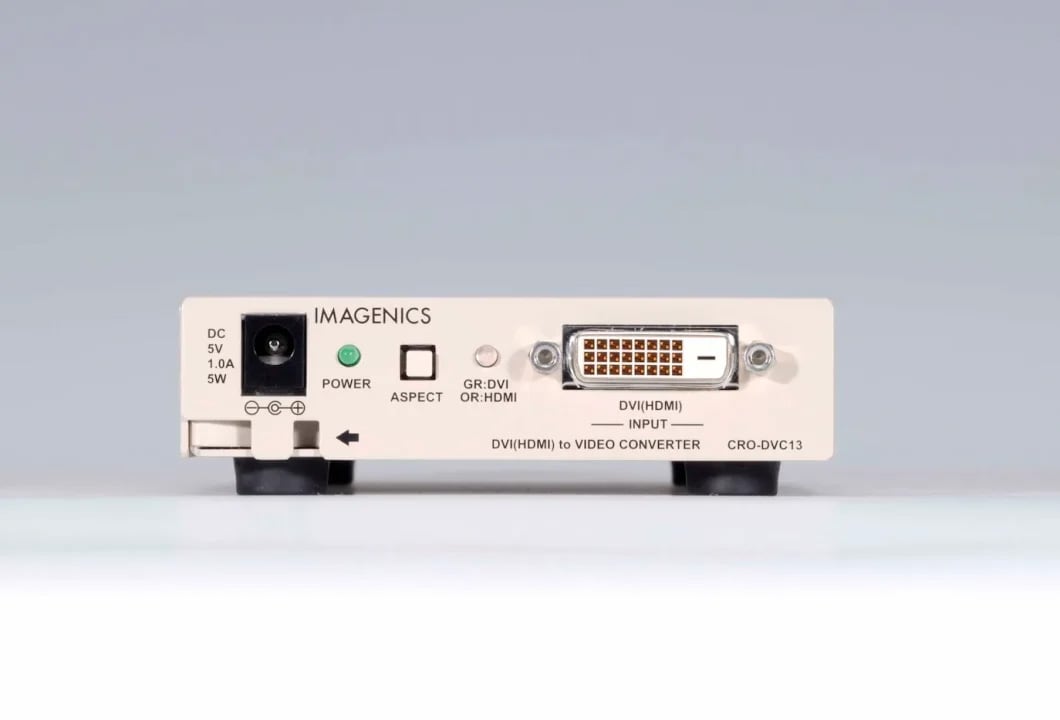

Input Signal: DVI Rev 1.0 compliant DVI-D 24-pin connector (single link) x 1
Input Format: VGA@60 to UXGA@60, WUXGA@60RB, and HDMI-compatible signals equivalent to D1 to D5

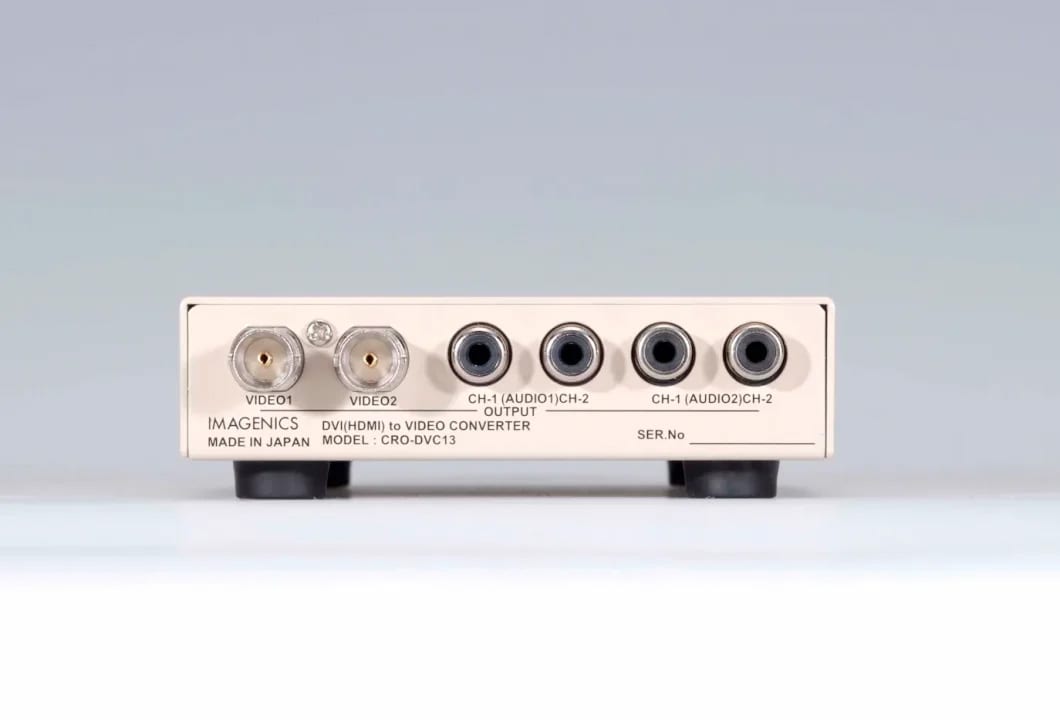

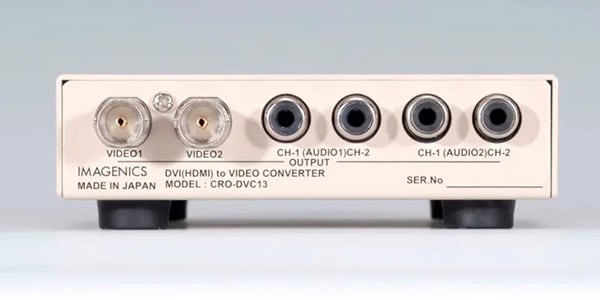

Video Output Signal: NTSC standard (SMPTE 170M compliant) x 1, 2-way distribution, BNC connector x 2
Video Output Level: 1.0V (p-p), 75Ω drive
Audio Output Terminals: Unbalanced 2-channel stereo audio x 1, 2-way distribution, RCA pin jack x 4
■Audio Output Level: -10dBu (-20dBFs, 10kΩ load)
■Audio Frequency Response: -1dB to +1dB from 20Hz to 20kHz
■S/N Ratio: 85dB or greater (A-weighted at 1kHz, reference -10dBu output)
■Crosstalk: 80dB or greater
■Distortion: 0.03% or less (-10dBu output at 1kHz)
■Power Supply: DC5V 1.0A
■Power Consumption: 5W (max)
■Weight: Approx. 550g
■Size: 100(W) x 25(H) x 150(D)mm (excluding protrusions)
■Accessories: 1 AC100V 27VA 50Hz/60Hz AC adapter for domestic use (5V 2.3A output)
1 DVI-D (male) to HDMI (female) conversion connector
*HDMI audio input supports linear PCM stereo audio only. Other HDMI audio formats are not supported.
*HDCP-protected video is not supported.
*PAL is not supported. We recommend using only Imagenics DVI/HDMI-related devices and cables. Mixing Imagenics products with other companies' (including overseas) products may result in performance not being maintained and unexpected malfunctions may occur. In such cases, operation of Imagenics products may not be guaranteed.

Please note that specifications and appearance may be changed without notice for improvement purposes.
""
