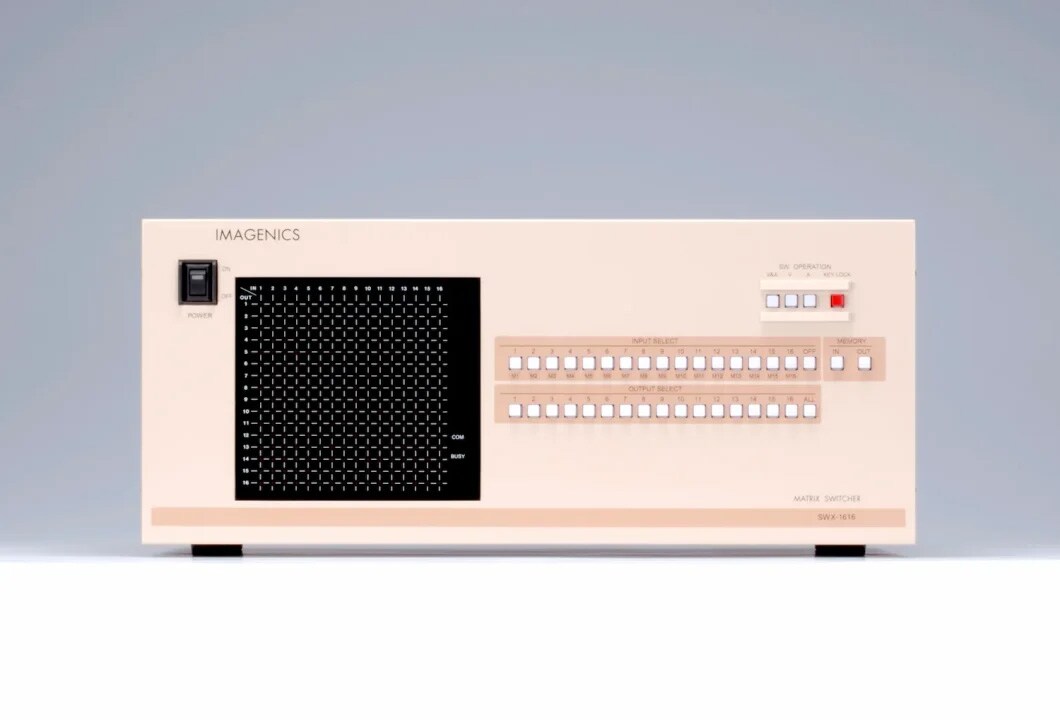

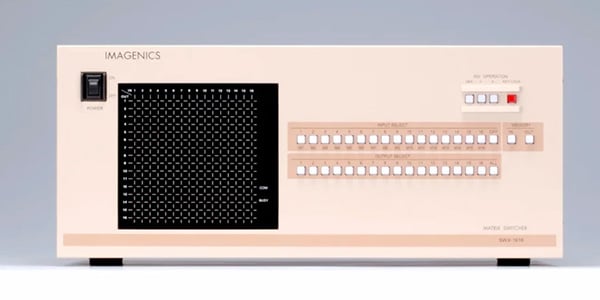

IMAGENICS / SWX-1616

Matrix switcher for composite video and audio (unbalanced) signals.

■Matrix Switcher
■Video Signal Type: Composite Video Signal
■Video Input: 1.0V(p-p) VBS/VS 75Ω (BNC) x 16
■Video Output: 1.0V(p-p) VBS/VS 75Ω (BNC) x 16
■Black-Burst Input: 0.45V(p-p) Black Burst Signal Loop-Through High Impedance (BNC)
■Video Frequency Response: 60Hz to 10MHz ±0.2dB
10MHz to 20MHz - -1dB to +0.3dB
■DG/DP: 0.5%, within 0.5°
■Video Crosstalk: 54dB or more (3.58MHz)
■Audio Signal Method: Unbalanced 2-channel (stereo) signal
■Audio Input: -10dBu 50kΩ stereo (RCA pin jack) 16 outputs
■Audio Output:
-10dBu (10kΩ or more load)

Low-impedance stereo (RCA pin jack) 16 outputs
■Audio Frequency Response: 10Hz to 50kHz +1dB to -1dB
■Audio Crosstalk: 80dB or greater
■Audio S/N Ratio: 85dB or greater
■Audio Distortion: 0.008% or less
■Maximum Audio Input Level: +18dBu

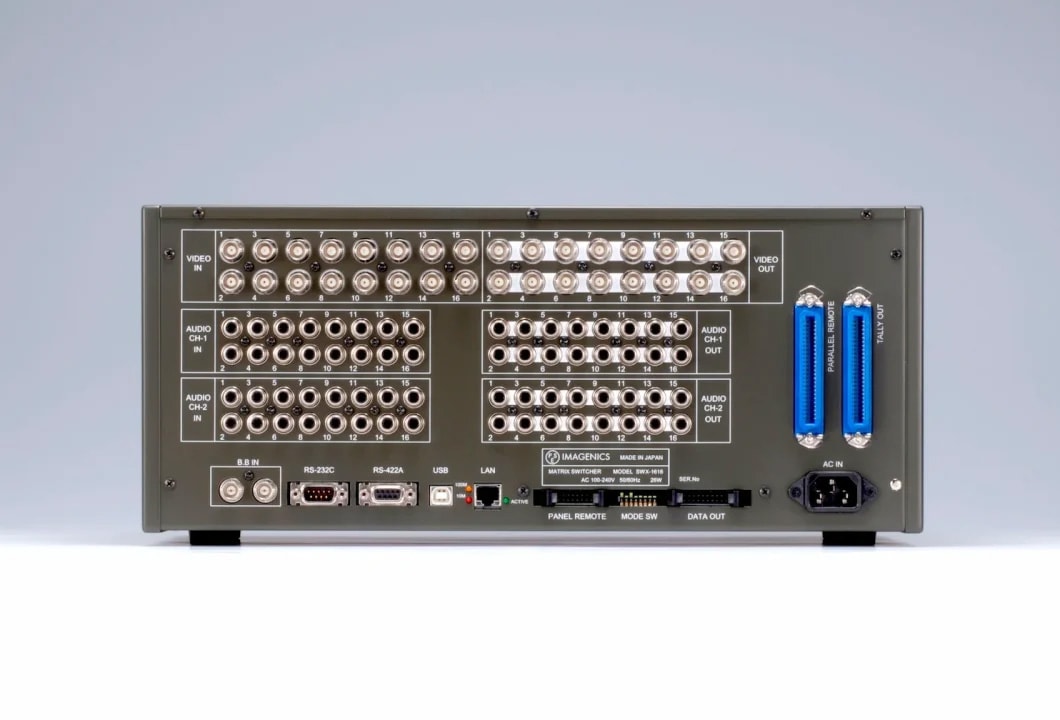

■External Control
RS-232C (Dsub 9-pin male)
RS-422A (Dsub 9-pin female)
10Base-T/100Base-TX (RJ-45)
Parallel Remote (Amphenol 50-pin female)
■Operating Temperature and Humidity Range: 0°C to 40°C, 20% to 90% RH (non-condensing)
■Storage Temperature and Humidity Operating temperature: -20°C to 70°C, 20% to 90% RH (non-condensing)
■Power supply voltage: AC 100V to AC 240V 50Hz/60Hz
■Power consumption: Approximately 26W
■Weight: Approximately 8.6kg
■Size: 422(W) x 177(H) x 290(D)mm (excluding protrusions)
■Accessories:
EIA19 rack mount brackets (1 set)
Japan-specific locking power cable (3P-3SL) (1)
3P-2P power adapter plug (1)
Power switch cover (1)
