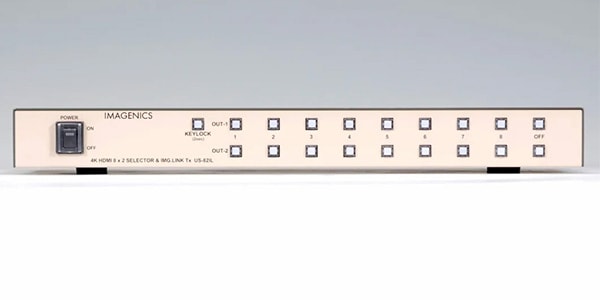

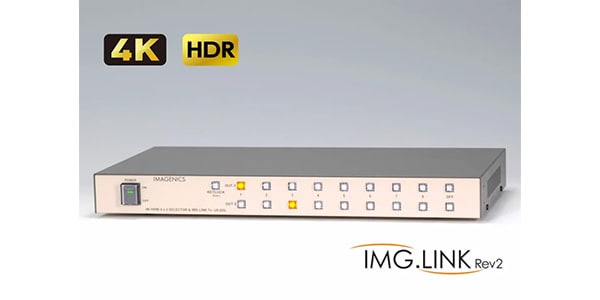

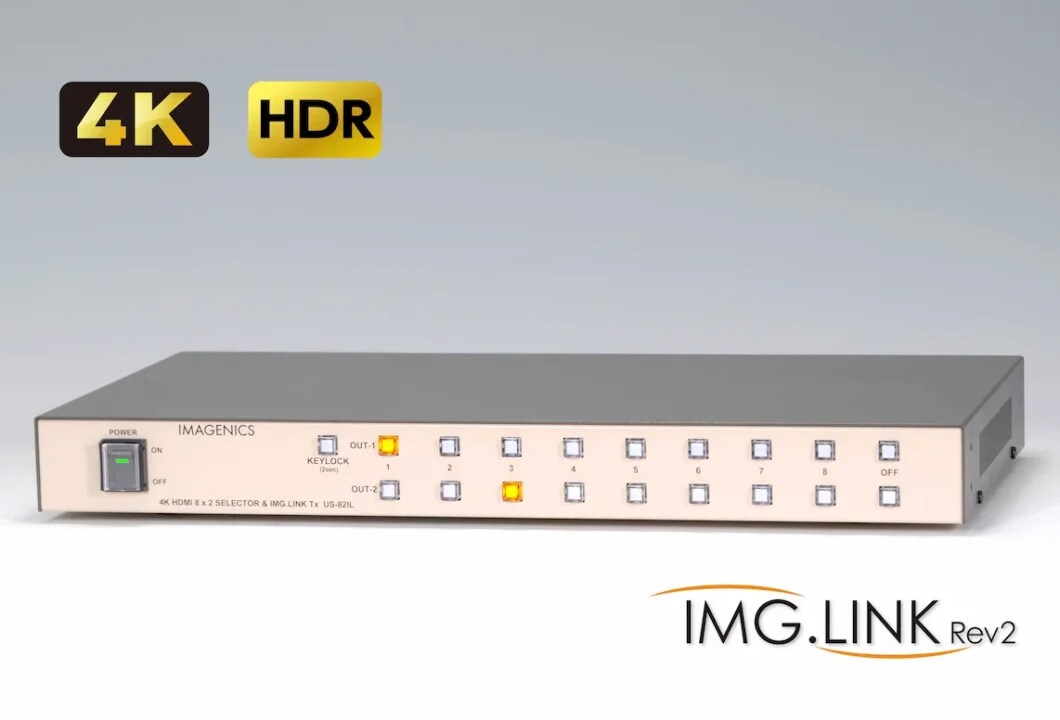

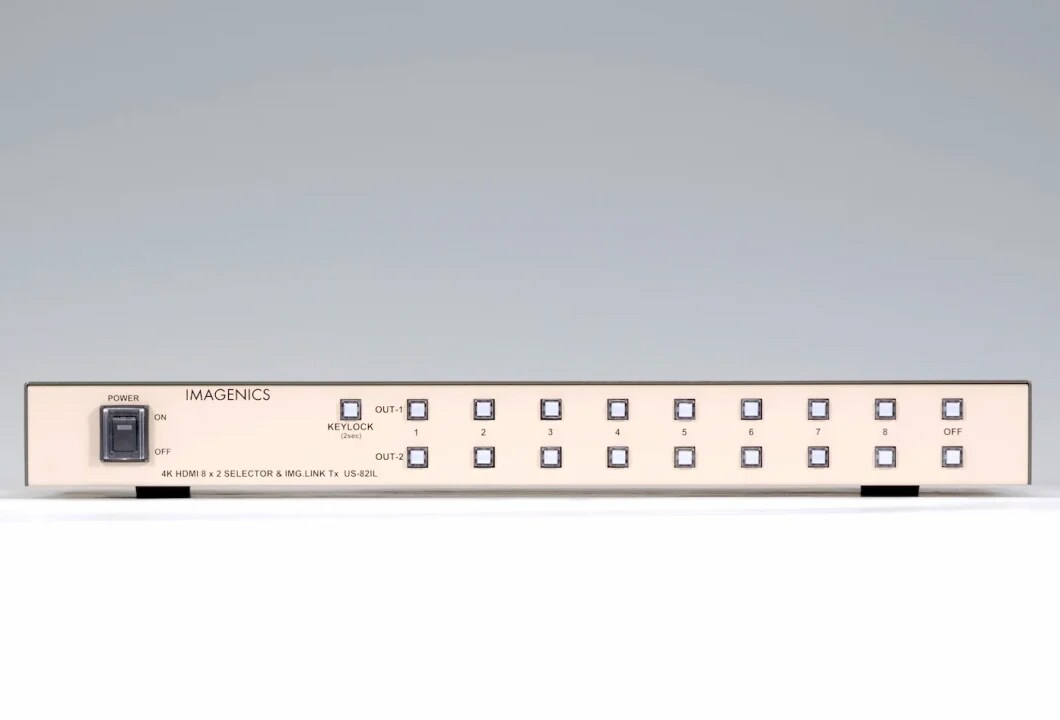

IMAGENICS / US-82IL

An 8x2 matrix selector for HDMI signals that complies with HDMI 2.0/1.4 and HDCP 2.2/1.4 standards.

■4K Full-Spec HDMI Matrix Switcher
■Video Signal Format
TMDS Signal (Digital RGB/YPbPr) Pixel Clock 25MHz-600MHz (TMDS Clock 25MHz-340MHz)
Automatically supports 4K, D1-D5 equivalent HDMI signals and PC signals from 640x480 to 4,096x2,160
Supports HDMI signals up to 36-bit deep color (4K60@422) with a data rate of 18Gbps )
Compatible with standard-compliant signals up to 24-bit full color (4K60@444)

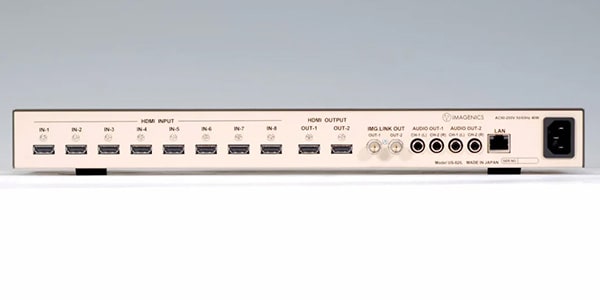

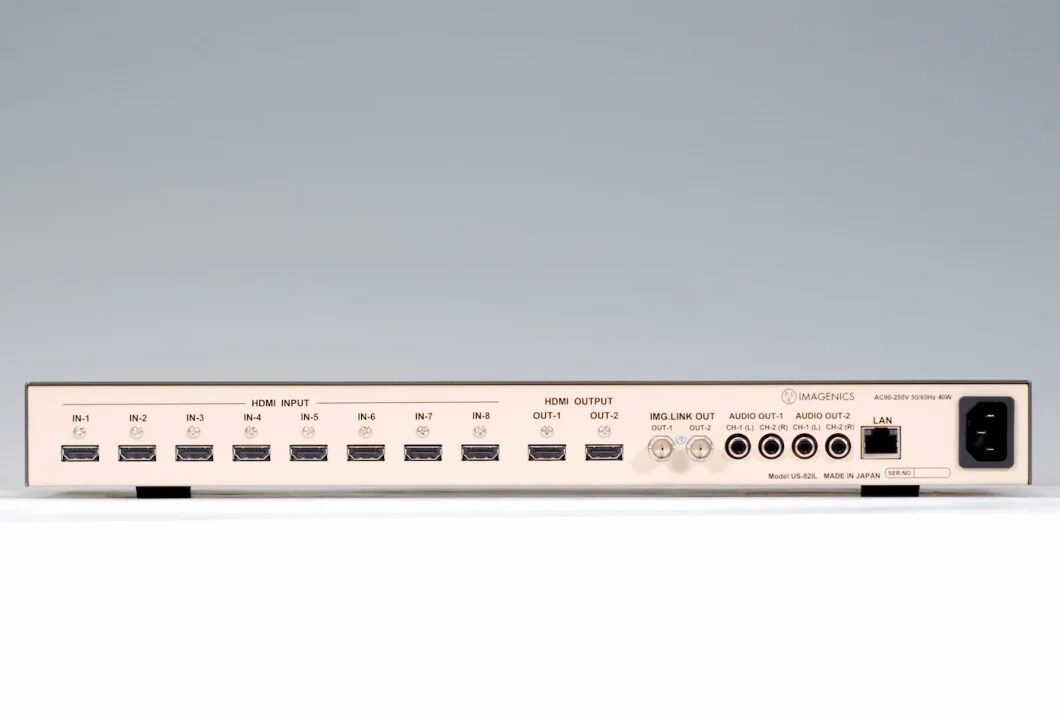

■HDMI Input:
8 HDMI-A 19-pin connectors (HDCP 1.4, 2.2 compatible, DVI signal input possible)
■HDMI Output:
2 HDMI-A 19-pin connectors (HDCP 1.4, 2.2 compatible, color space conversion and DVI signal output possible)
■Input Cable Compatibility:
PC (VESA), D5, etc., up to 6Gbps 2K video up to 30m (Our HDP-HDP) With a 30m HDMI cable
4K30, 60 (420), and other video formats up to 10.2Gbps: Up to 20m with our HDP-HDP 20m HDMI cable
4K60 (422, 444), and other video formats up to 18Gbps: Up to 10m with our HDP-HDP 10m HDMI cable
■Output Cable Length Range (HDMI Output)
PC (VESA), D5, and other video formats up to 6Gbps 2K: Up to 10m with our HDP-HDP 10m HDMI cable
4K30, 60 ( Supports video up to 10.2 Gbps, such as 4K (420), via a 5m UHP-5 HDMI cable.
Supports video up to 18 Gbps, such as 4K60 (422, 444), via a 3m UHP-3 HDMI cable.
■Built-in EDID emulation function (plug-and-play):
Select and set major CEA and VESA resolutions via LAN external control commands, or
copy and back up EDID data from the OUT-1 and OUT-2 connectors for use.
■Analog Audio Functions
Audio Output Terminal: -10dBu (10kΩ or greater load), low impedance unbalanced, 2 channels, 2 pairs (4 RCA pin jacks)
Audio Frequency Response: -1dB to +1dB from 20Hz to 20kHz
Audio Signal-to-Noise Ratio: 80dB or greater (1kHz A-weighted, -10dBu reference output)
Audio Crosstalk: 80dB or greater
Audio Distortion: 0.03% or less (10kΩ or greater load)
Maximum Audio Output Level: +10dBu (HDMI Envelope) (At 0dBFS with dead audio)
■Output Digital Serial Video Signal
Digital serial signal 1.0Vp-p 75Ω (2x BNC) using original re-encoding method
Video bitrate after original re-encoding: approximately 2.5Gbps NRZI signal (constant bit rate, audio is 9.216Mbps)
Original bidirectional communication link function, IMG.LINK Rev2 standard (VC-2HQ video compression)
*Only IMG.LINK Rev2 signals can be output. IMG.LINK Rev1 signals cannot be output.
Note that IMG.LINK Rev2 signals are compatible with all previous IMG.LINK distributors and ILS series switchers.
■ Coaxial transmission distance with CRO-URS2A
*See product page on manufacturer's website
External control functions: LAN 10BASE-T, 100BASE-TX x1, RJ45 x1 (automatic 100BASE-TX/10BASE-T detection)
Various operational settings for this unit and communication with the RS-232C terminal on the CRO-URS2A are possible.
■ Other functions:
Automatic color format conversion and down-conversion for each HDMI output terminal, EDID setting for each HDMI input terminal,
Reading of internal status list (text string from LAN), batch backup and reload of operational settings,
Input non-HDCP operation setting, sequential switcher operation, push-button switch notification function,
Various settings via shortcuts, FAN alarm notification via the power switch LED, and more.
■ Power Supply: AC90V to AC250V 40W
■ Size:
422(W) x 44(H) x 230(D) mm (excluding protrusions)
■ Weight: Approximately 3.5 kg
■ Accessories:
EIA19 1U rack mount brackets (1 set),
Japan-only power cable (3P-3SL) with locking mechanism (1),
3P-2P power adapter plug (1),
