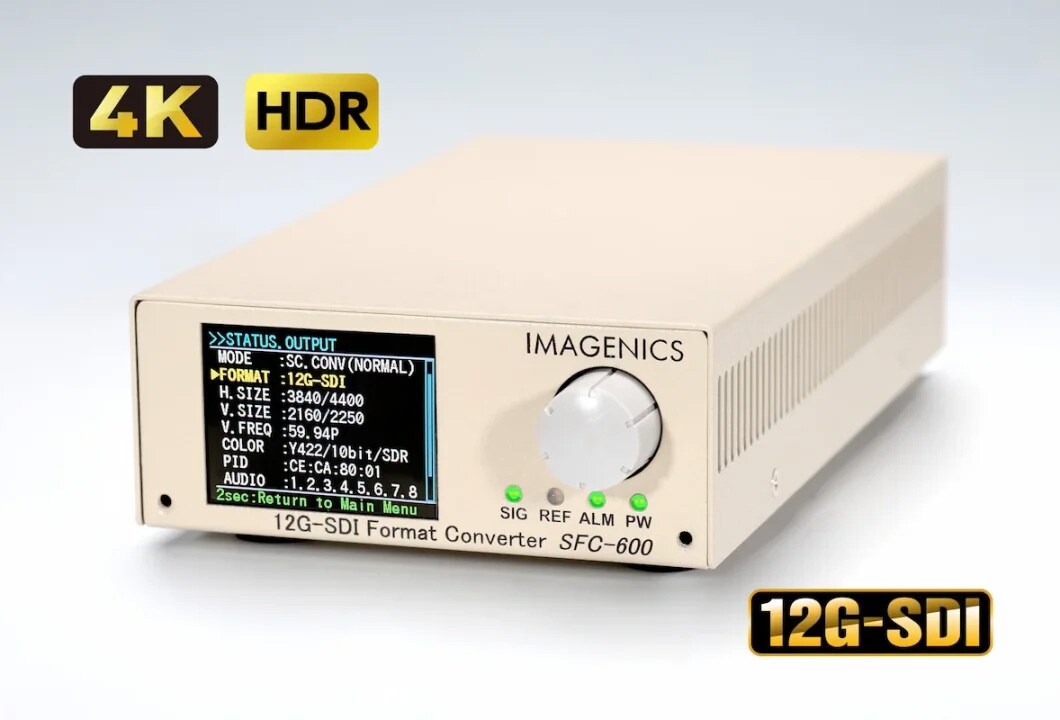

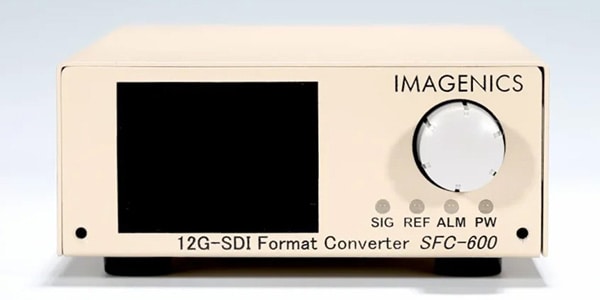

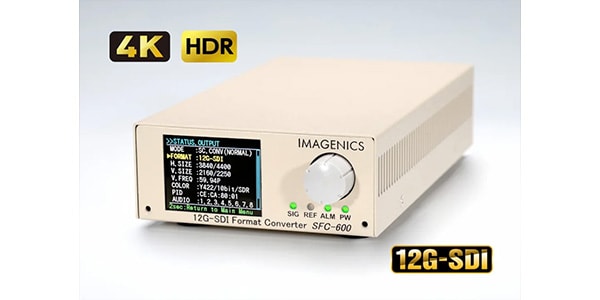

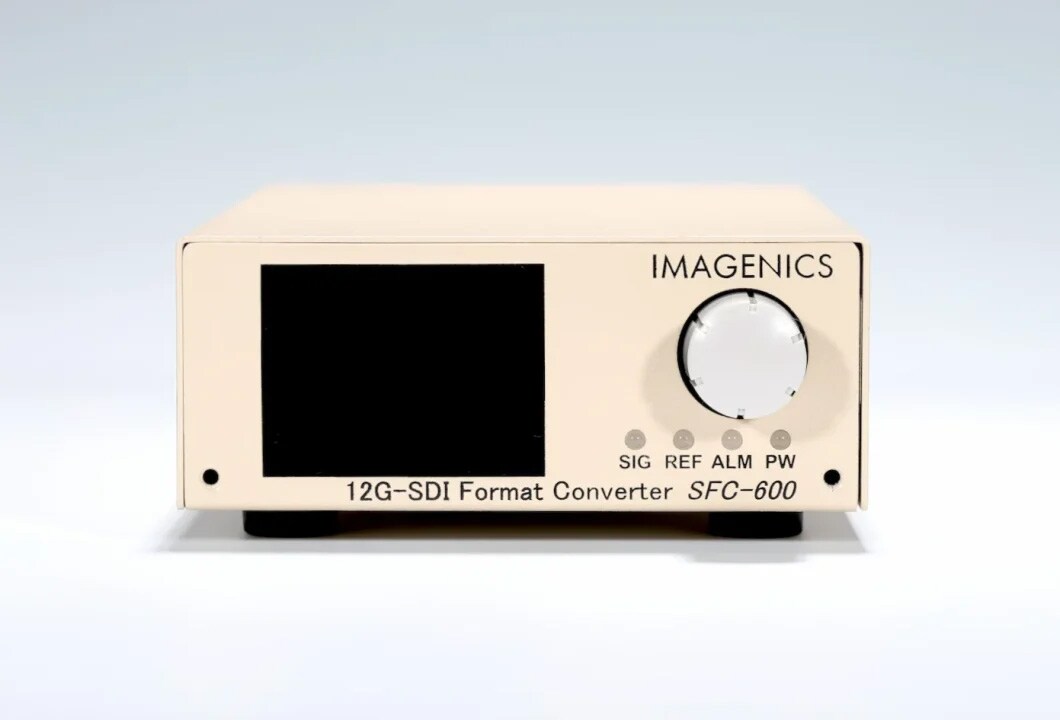

IMAGENICS / SFC-600

This high-performance format converter converts SDI signals up to 12G-SDI into each other. It synchronizes the output signal with the [LF] reference signal and automatically converts to the specified format, and can also pass through auxiliary packet data from the input signal.

■Format Converter
■SDI Input:
SMPTE ST 2082-1/2081-1/424/292-1 compliant, 0.8V (p-p), 75Ω, BNC x 1
Signal Distance Compensation: 12G-SDI (pathological signal) input: Automatic compensation up to 80m with L-5.5CUHD coaxial cable
6G-SDI (pathological signal) input: Automatic compensation up to 70m with L-5CFB coaxial cable
3G-SDI (pathological signal) input: Automatic compensation up to 160m with L-5CFB coaxial cable
HD-SDI (pathological signal) input: Automatic compensation up to 230m with L-5CFB coaxial cable

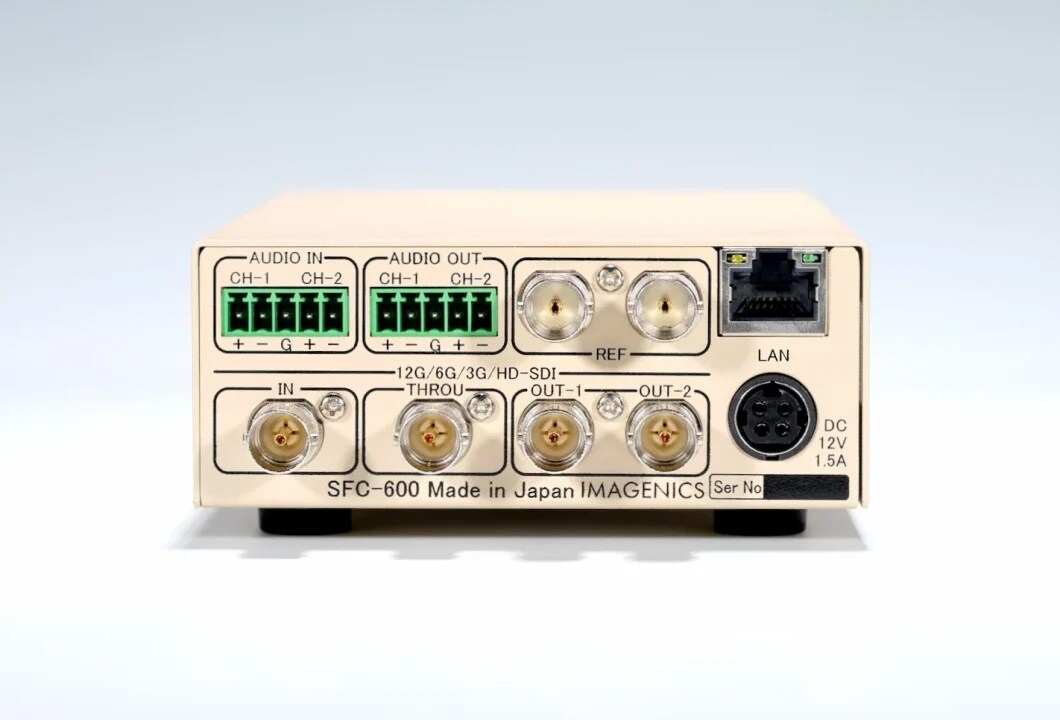

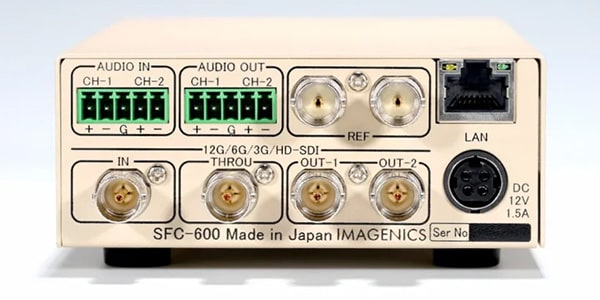

■SDI Through Output:
SMPTE ST 2082-1/2081-1/424/292-1 compliant, 0.8V(p-p), 75Ω, BNC x 1
■SDI Output:
SMPTE ST 2082-1/2081-1/424/292-1 compliant, 0.8V(p-p), 75Ω, BNC x 1 2-way distribution
■Output resolution:
2160p (59.94, 60, 29.97, 30),
1080p (59.94, 60, 29.97, 30, 50, 23.98, 24),
1080i (59.94, 60), 720p (59.94, 60, 50)
■Video/audio delay:
Approx. 17 ms to 34 ms (when both input and output are 60 Hz)
■Reference synchronization input: Tri-level synchronization signal or B.B. signal, 0.3V (p-p) to 0.6V (p-p), 1 system, BNC x 2, loop-through, high impedance
■ Reference sync phase adjustment: Up to ±540 lines of the output signal
■ Analog audio input/output signal:
Balanced or unbalanced, 5-pin terminal block (stereo),
1 input, 1 output
Balanced audio input: 1.23V (rms) (+4dBu), 600Ω, maximum input level 12.2V (rms) (+24dBu)
Unbalanced audio input: 245mV (rms) (-10dBu), 50kΩ, maximum input level 2.4V (rms) (+10dBu)
Balanced audio output: 1 .23V (rms) (+4dBu, 600Ω load), maximum output level 12.2V (rms) (+24dBu)
Unbalanced audio output: 245mV (rms) (-10dBu, 10kΩ load), maximum output level 2.4V (rms) (+10dBu)
Analog audio quantization: 48kHz, 24bit
■Audio level adjustment function:
Mute, -60dB to +20dB (1dB steps)
SDI audio delay setting: -15ms to 500ms (5ms steps)
■Other
Various digital video process adjustments Features include pseudo-seamless, zoom, audio mute, and aspect ratio adjustment.
External control: 10Base-T/100Base-TX, Auto-Negotiation, Auto-MDI/MDI-X, and one RJ-45 connector.
■Power supply: DC12V 1.5A 18W (max.)
■Size: 100(W) x 40(H) x 180(D) mm, approximately 680g (excluding protrusions).
■Accessories:
AC adapter (with lock) x 1 (12V 3A output),
Two 5-pin terminal plugs for analog audio input/output.
