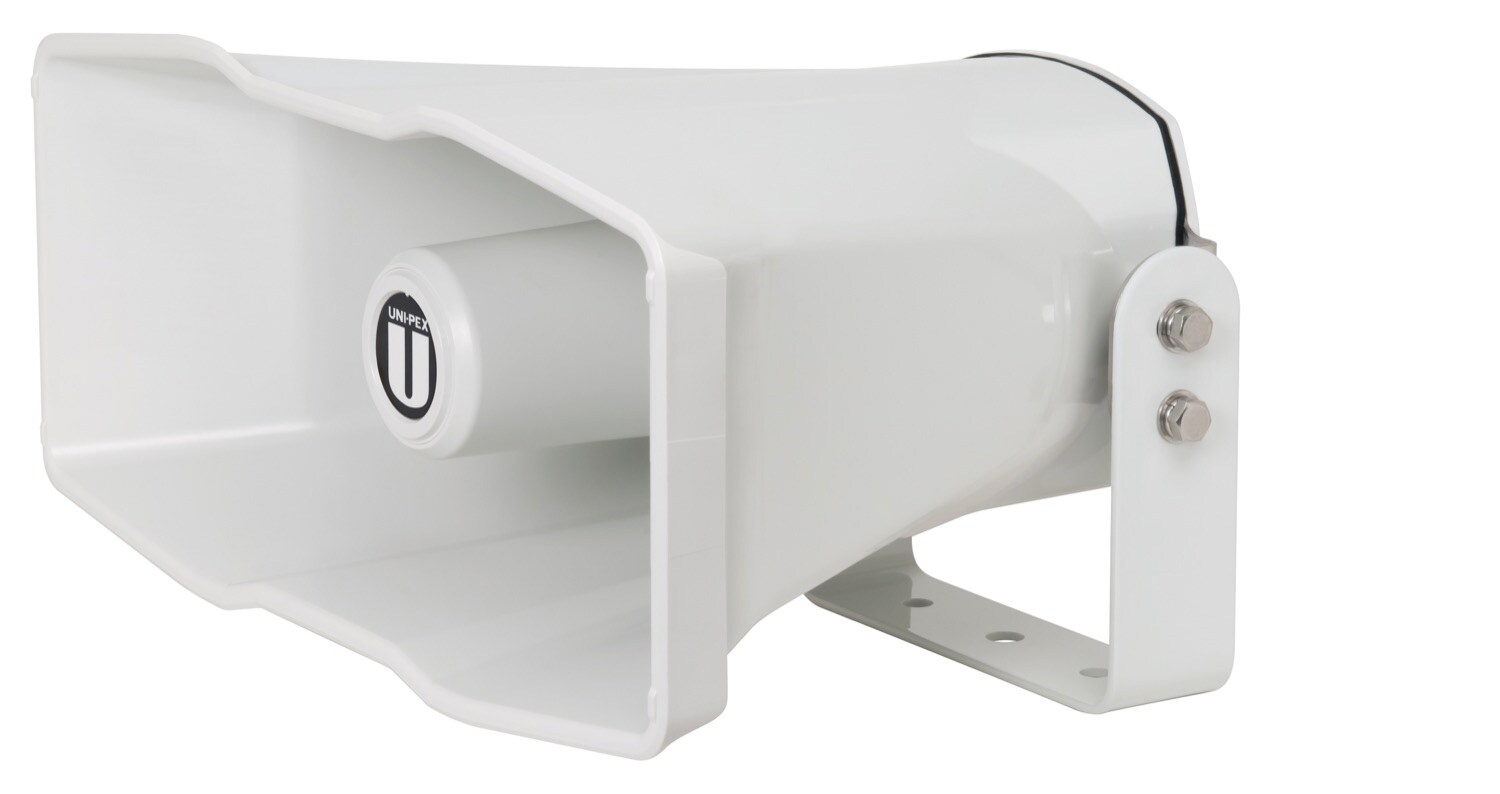

UNI-PEX / HK-392

The UNIPEX/HK-392 is a rectangular, medium-diameter separate horn for general-purpose loudspeakers. It features excellent corrosion resistance due to the use of stainless steel bolts and screws on the exterior.

■Specifications

* Joint: JIS C 5504 Type 1 (φ34.925mm) x 1

* Exterior: Horn mouth (ASA resin): Munsell 5GY8.5/0.5 approximate color silver gray, Bracket (SPHC): Munsell 5GY8.5/0.5 approximate color silver gray paint, Horn base (stainless steel)

* Mounting hardware: U-shaped bracket, L-shaped

* Diameter dimensions: 390mm x 190mm

* Overall length: 294mm (excluding protrusions)

* Low frequency limit: 250Hz

* Compatible driver units: Unipex driver units excluding P-15F

* Compatible unit cover -: UC-10, UCS-51A (excluding UC-7B and UC-8B)

* Weight: Approx. 2.2 kg (excluding accessories)

* Operating Temperature Range: -10°C to 55°C

* Applicable Standards: Conforms to JIS C 5504 Horn Speakers

* Accessories: Instruction Manual/Safety Guide x 1

* Features/Applications:
