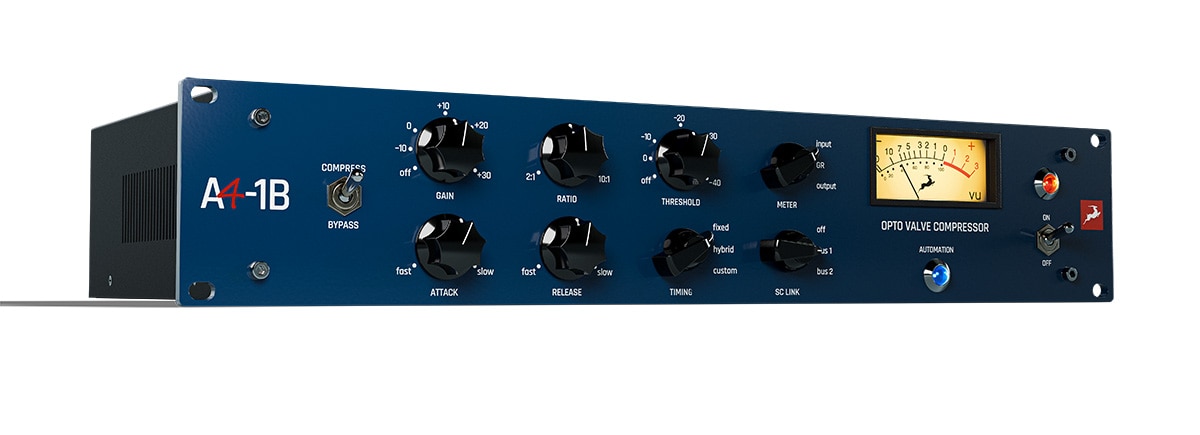

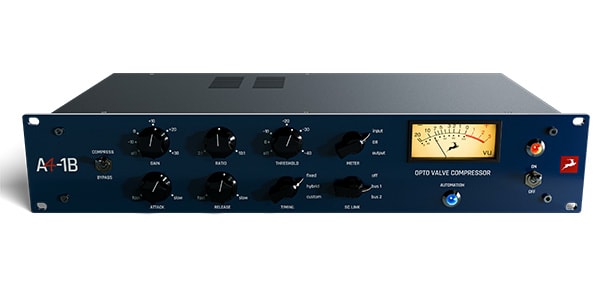

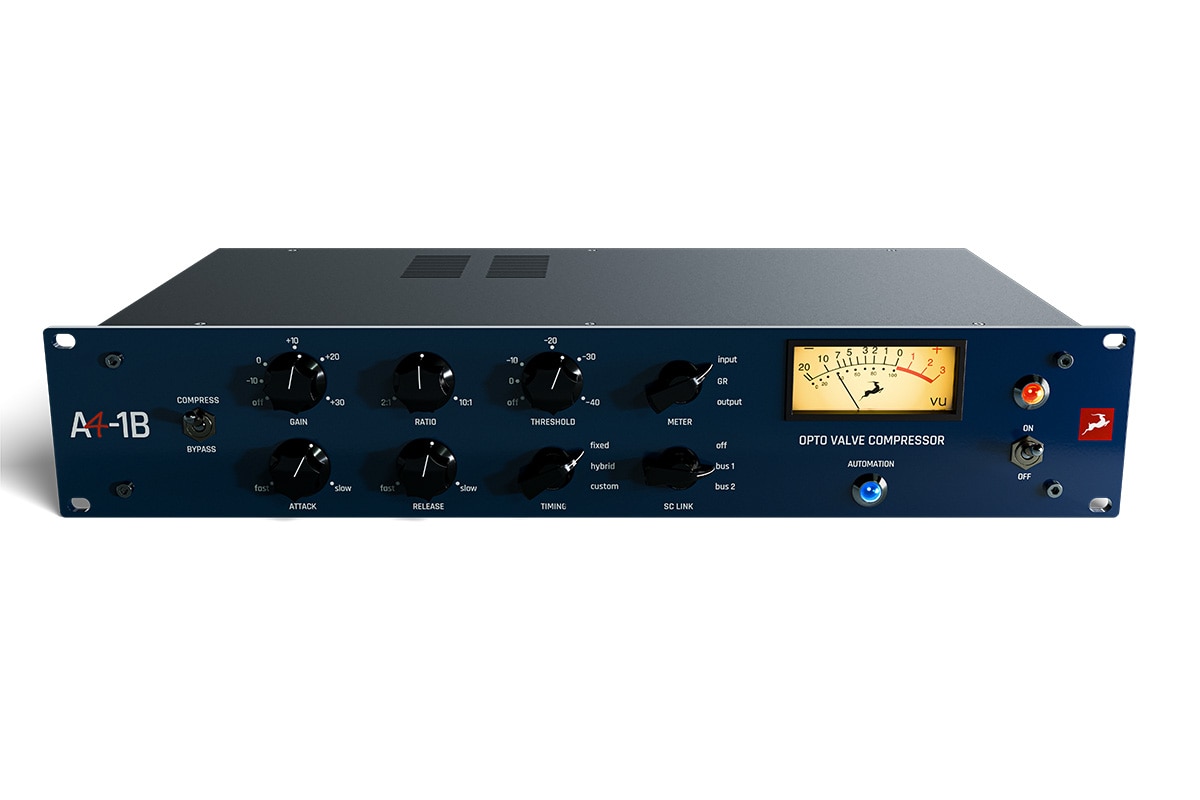

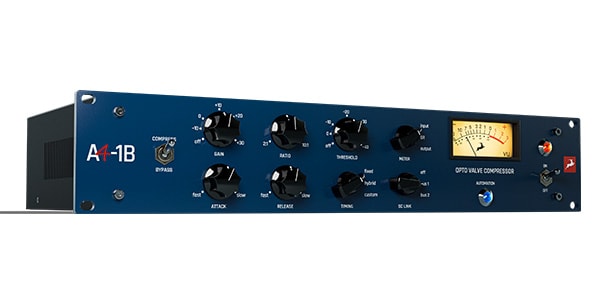

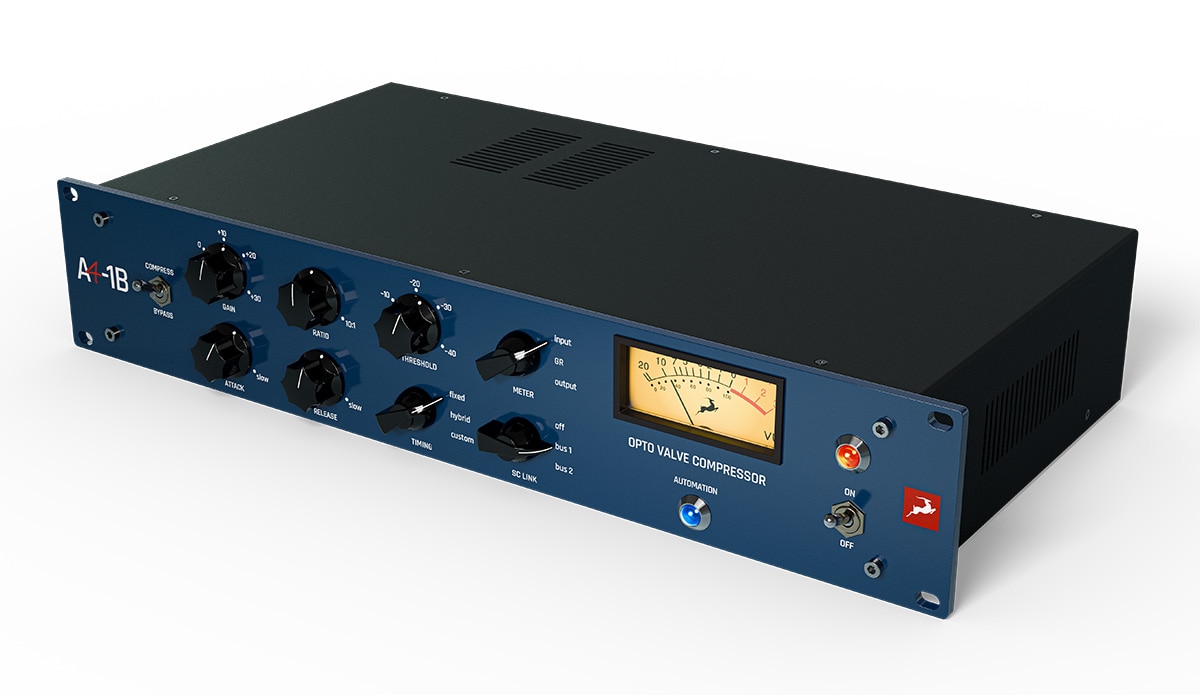

ANTELOPE AUDIO / A4-1B

A tube compression pedal that fuses traditional sound with cutting-edge technology.

【Input】

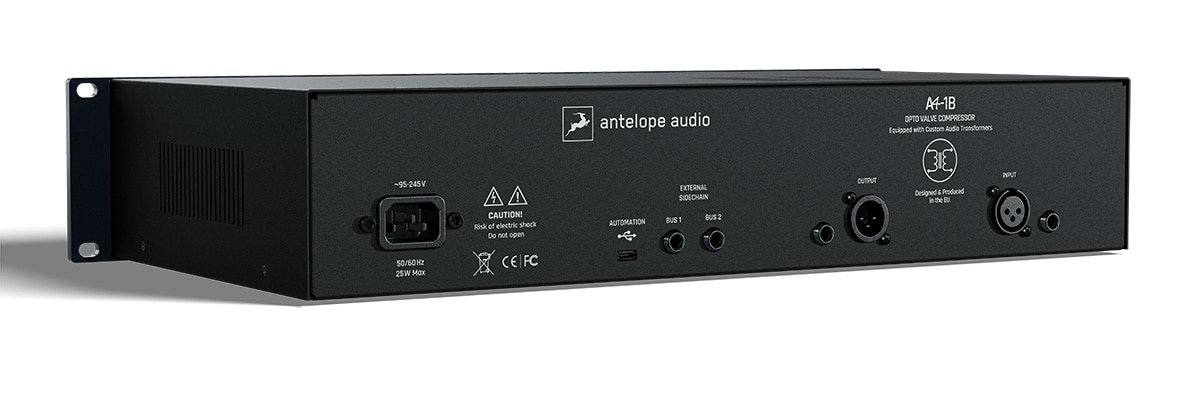

Connector: 1/4"" TRS phone, XLR female

Type: Balanced/Unbalanced

Impedance: 10kΩ

Maximum Level: >+24dBu (Balanced/Unbalanced)

【Output】

Connector: 1/4"" TRS phone, XLR female

Type: Balanced/Unbalanced

Impedance: 60Ω

Maximum Level: >+24dBu

【Compressor】

Threshold: -40dBu

Ratio: 2:1 to 10:1

Attack Time: 0.5ms to 300ms

Release Time: 50ms to 10s

Gain: 0 to +30dB

【System】

Frequency Response (Flat): 20Hz - 20kHz; ±1dB

Noise: < -80 dBu

USB Type-C port (for operation/updates)

【Power Supply】

Power Consumption: 15 W

Voltage: 95V/245V 50-60Hz

Operating Temperature: 0-50℃

Dimensions: 3.47"" x 18.98"" x 9.92"" (8.8 cm x 48.3 cm x 25.2 cm)

Weight: Net weight: 9.70 lbs (4.40 kg)

Package Weight: 14.33 lbs (6.50 kg)
