ALLPARTS / Replacement Body for Tele Deluxe SLBD-TDBO-RSP-F

Replacement body inspired by classic Fender designs. It is cut from two pieces of roasted sugar pine, and the roasting process makes it lightweight, easy to play, and extremely durable.

【Why Roasted?】
By roasting (heat treating) the wood blanks before manufacturing, we reduce the moisture content to approximately 7% and increase stability. It also creates a more resonant body with more sustain, faster attack, and a wider range of overtones.
Roasting the wood not only reduces weight, but also increases the visual depth of the wood grain, highlighting the uniqueness of each body.

■Guitar materials
■Made in America
■Body shape: Telecaster
■Wood: Roasted sugar pine
■Finish type: Unpainted

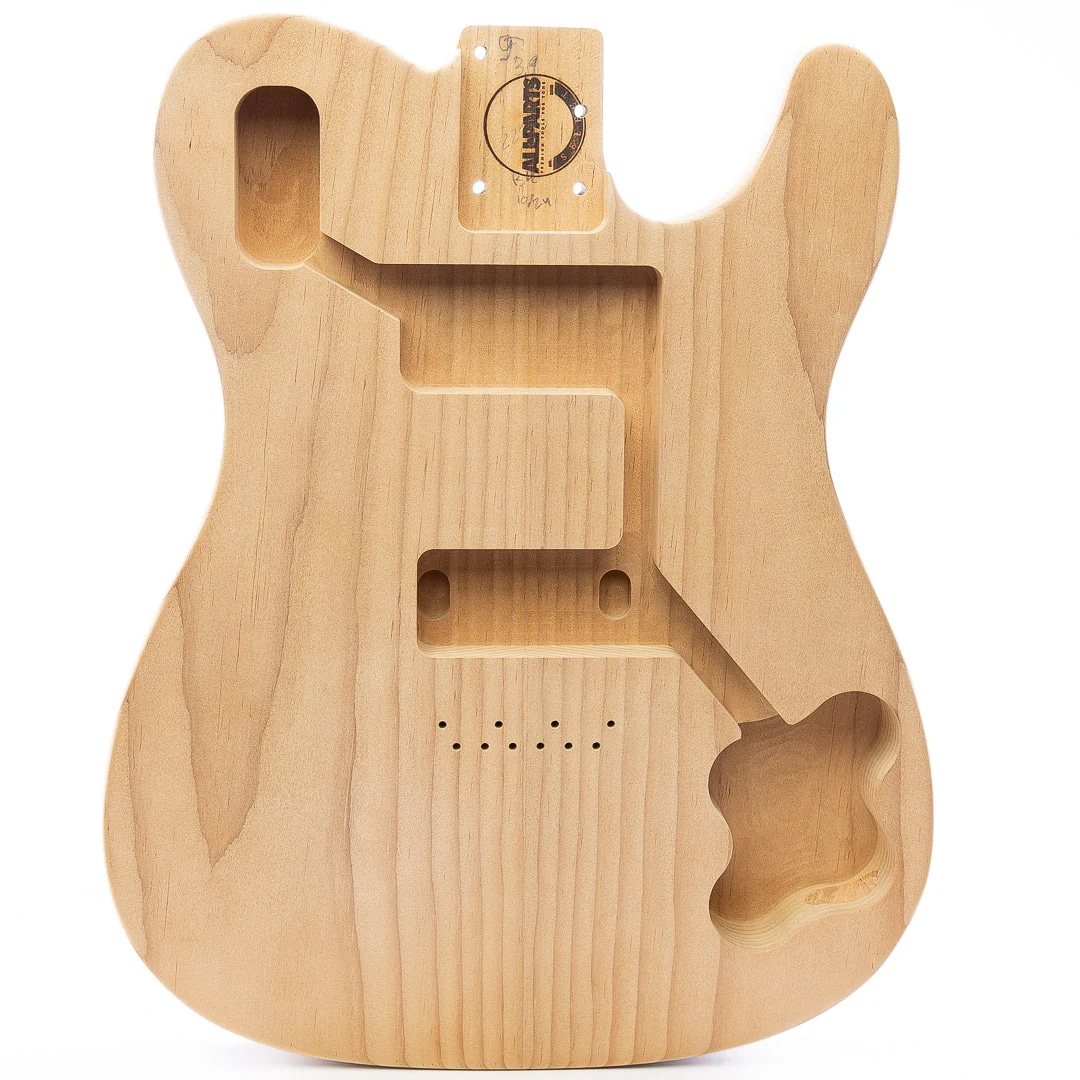

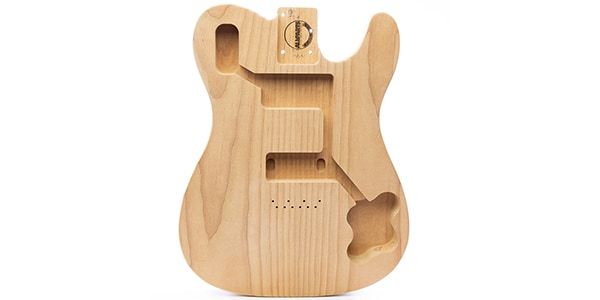

■Pickup routing: Dual humbucker
■Recommended bridge: Vintage spec 4-point Telecaster half (short) bridge (pre-drilled for convenient installation)

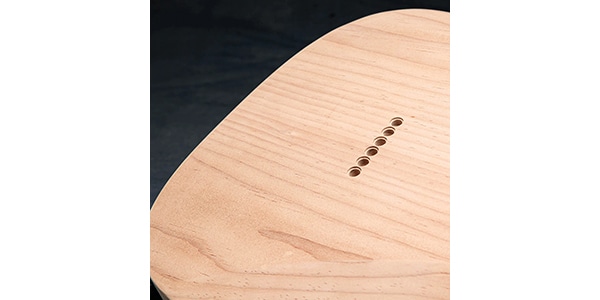

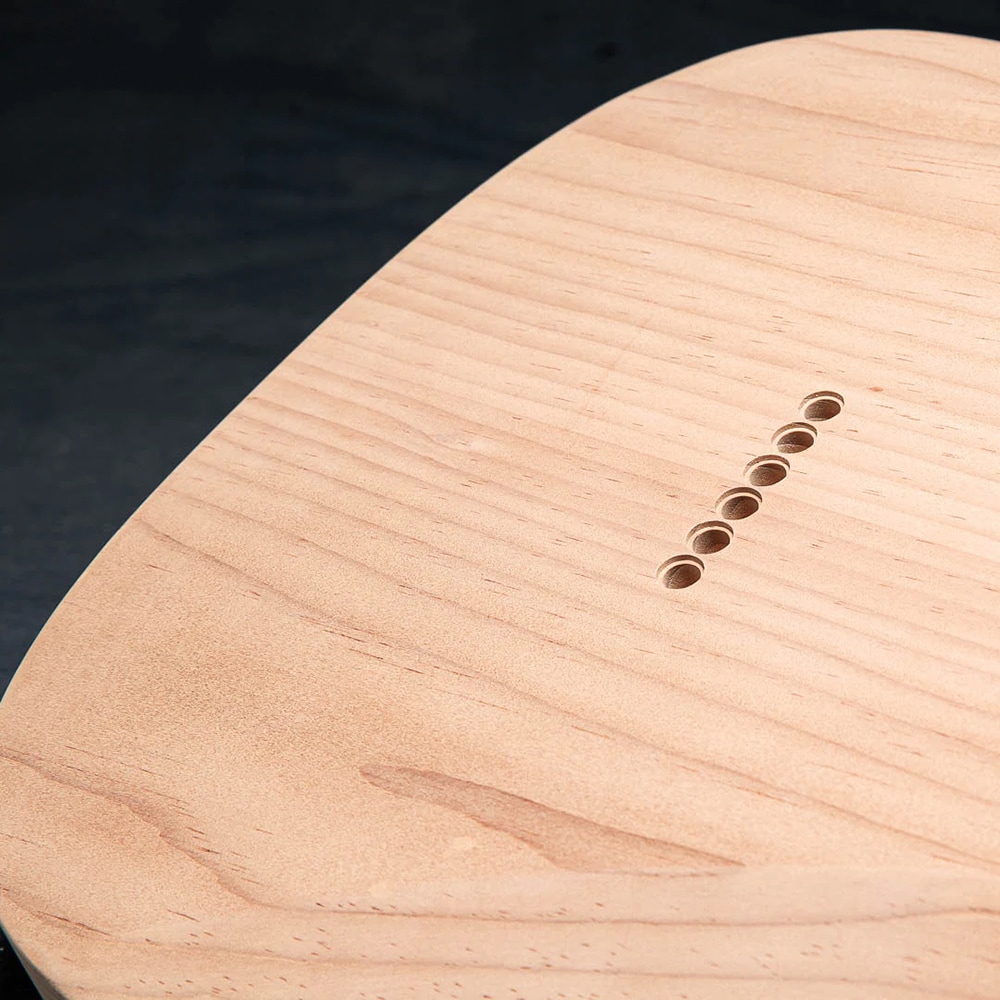

■Strings: Back through (pre-drilled holes for string ferrules, with dents for lip part)
■Average weight: 3.6 pounds (1.63 kg)

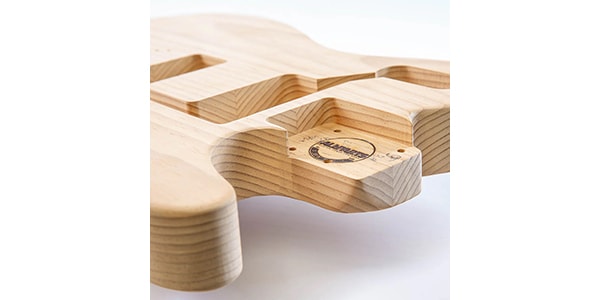

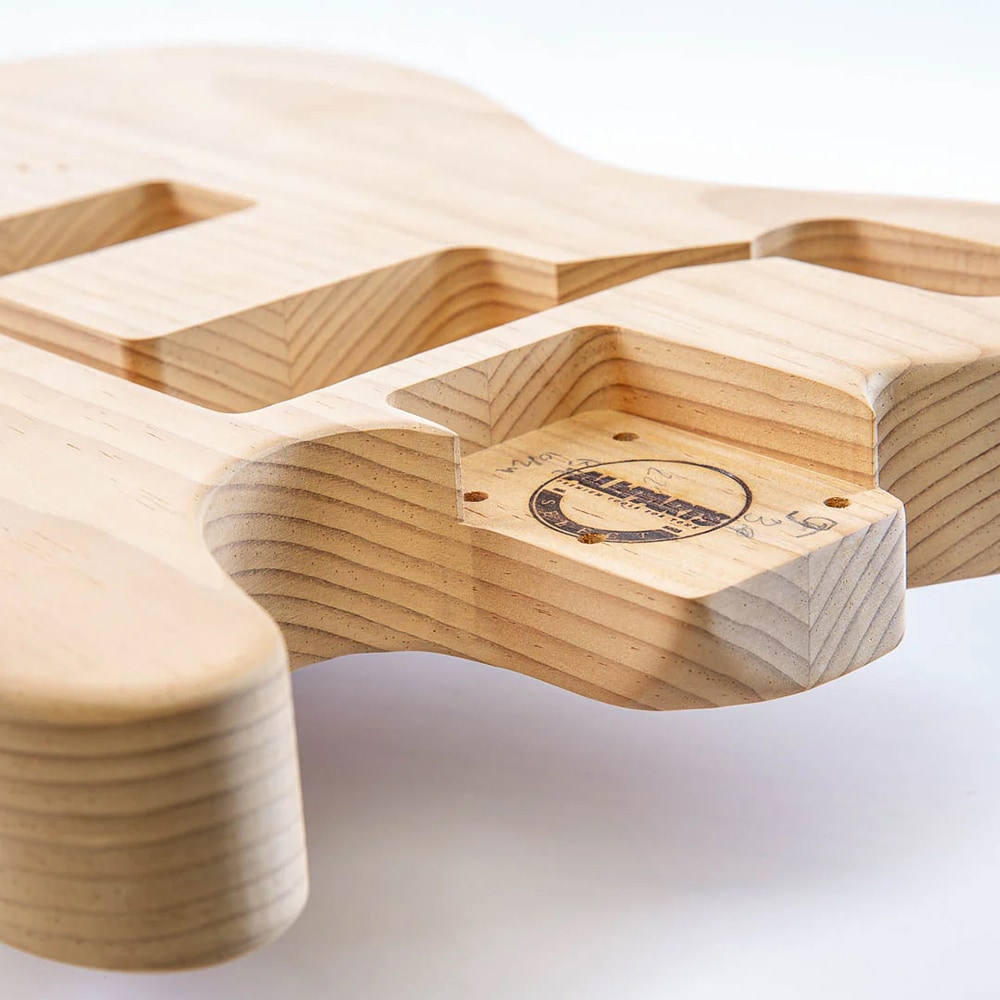

■Neck pocket width: 2-3/16 inches (approx. 55.56mm)
■Neck pocket depth: 5/8 inch (approx. 15.87mm)
■Neck pocket shape: Square (rectangle)
■Contoured heel adopted
■Waist cut (back cut) adopted

[Notes]
■Wood grain varies depending on the body. The image is for illustrative purposes only.
■Small dents or scratches may occur during the manufacturing process, but this is not a product defect. Finishing polishing may be required by the customer.
■Minor chips in the neck pocket may occur due to the router bit during the manufacturing process, but this is not a defect. It may be necessary for the customer to correct the problem by polishing or using filler.
■It is recommended to seal the unpainted body before assembly to protect it from the effects of moisture.
■ Roasted wood has a low moisture content, making it more susceptible to cracking. When drilling screw holes, we recommend measuring the inner and outer diameters of the threads in advance and selecting an appropriate drill bit. Also, refrain from forcibly tightening screws into holes drilled with a small drill bit.
