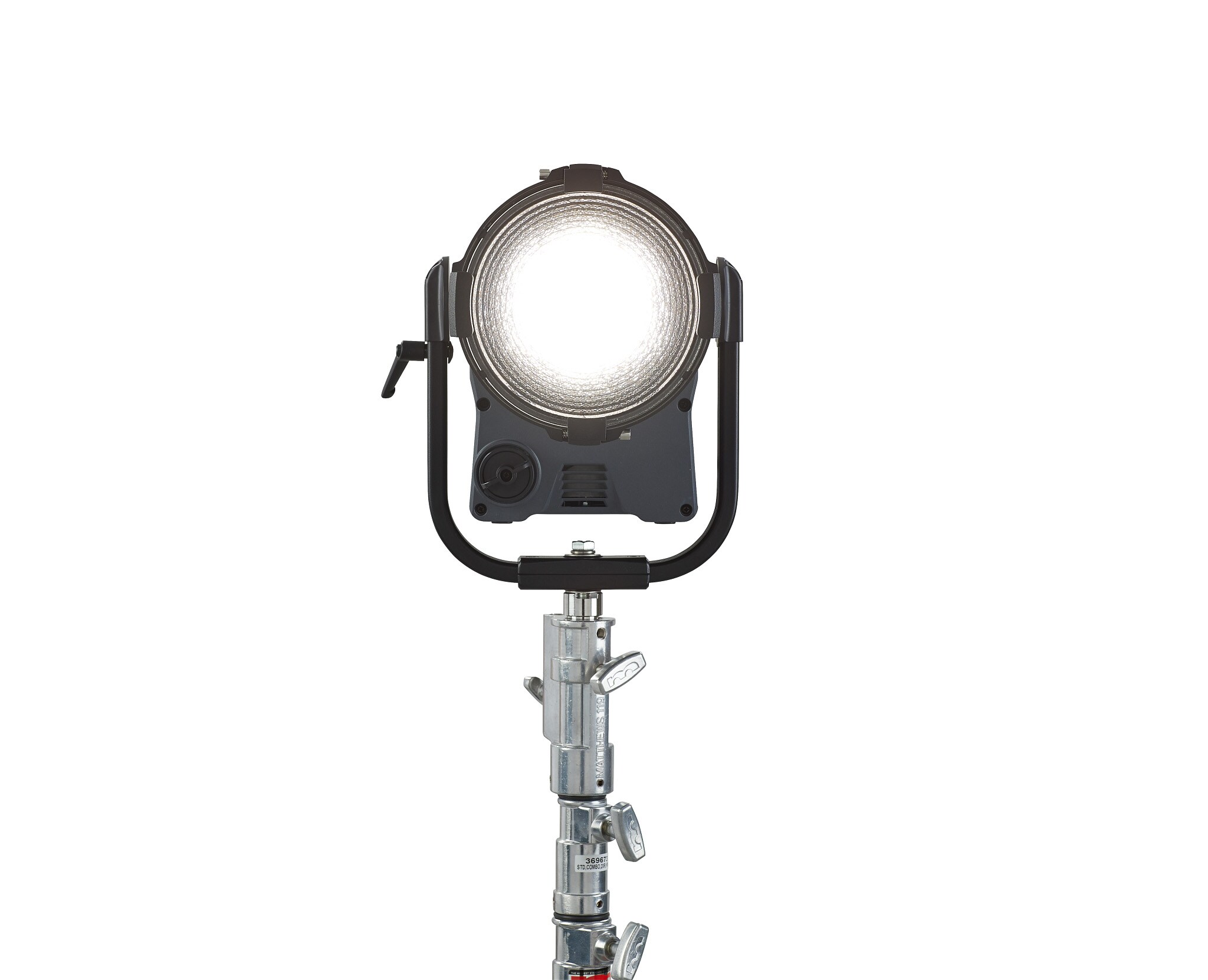

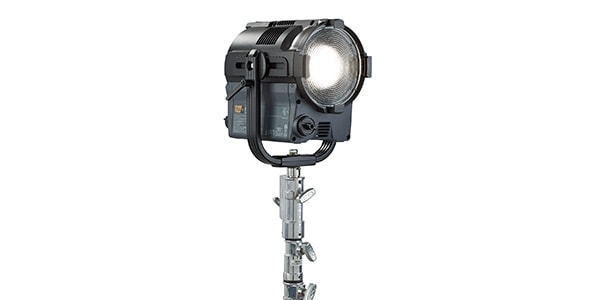

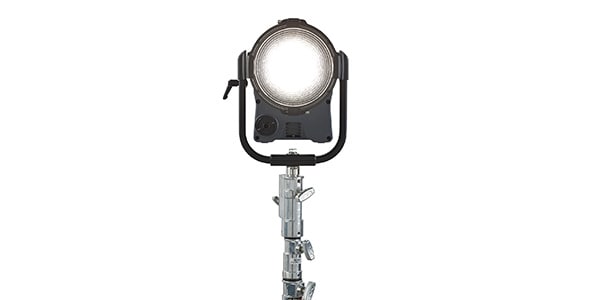

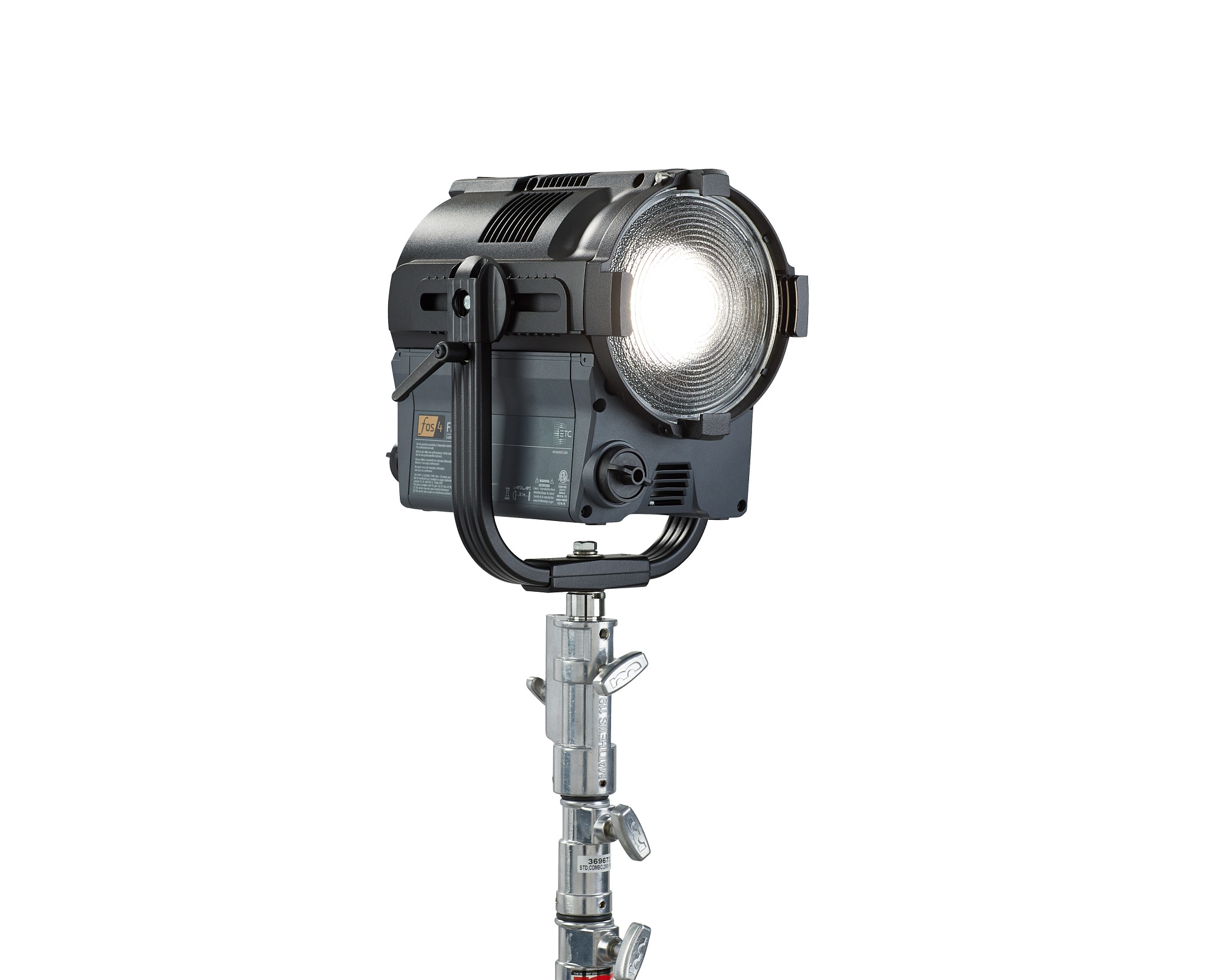

ETC / Fos/4 Fresnel 7-inch Daylight HDR

ETC's professional LED Fresnel projector for film, television, and studios features a Daylight HDR LED array and a 7-inch (178mm) glass Fresnel lens, delivering a high output of up to 9,703 lumens. Color temperature is adjustable from 1900 to 10450K. In addition to a wide manual zoom, it includes advanced control features suitable for studio use, such as Multiverse wireless DMX/RDM and NFC.

ETC FOS4FD7 / fos/4 Fresnel 7 Daylight HDR

■ Light Source
• Lumileds LUXEON C LED
• Daylight HDR 6-color LED array (Deep Red, Red, Mint, Cyan, Blue, Indigo)
• Maximum luminous flux: 9,703 lumens
• LED lifespan (L70): Over 54,000 hours
• LED array: Factory calibrated

■ Photometric Data
• Maximum luminous flux: 9,703 lm
• CRI: 3200K: 85 / 4500K: 92 / 5600K: 95
• TLCI: 3200K: 90 / 4500K: 96 / 5600K: 98
• SSI: 3200K: 67 / 4500K: 74 / 5600K: 72

■ Optical
• Glass Fresnel lens
• Manual zoom
• Beam angle: 13-55°
• Lens diameter: 178mm

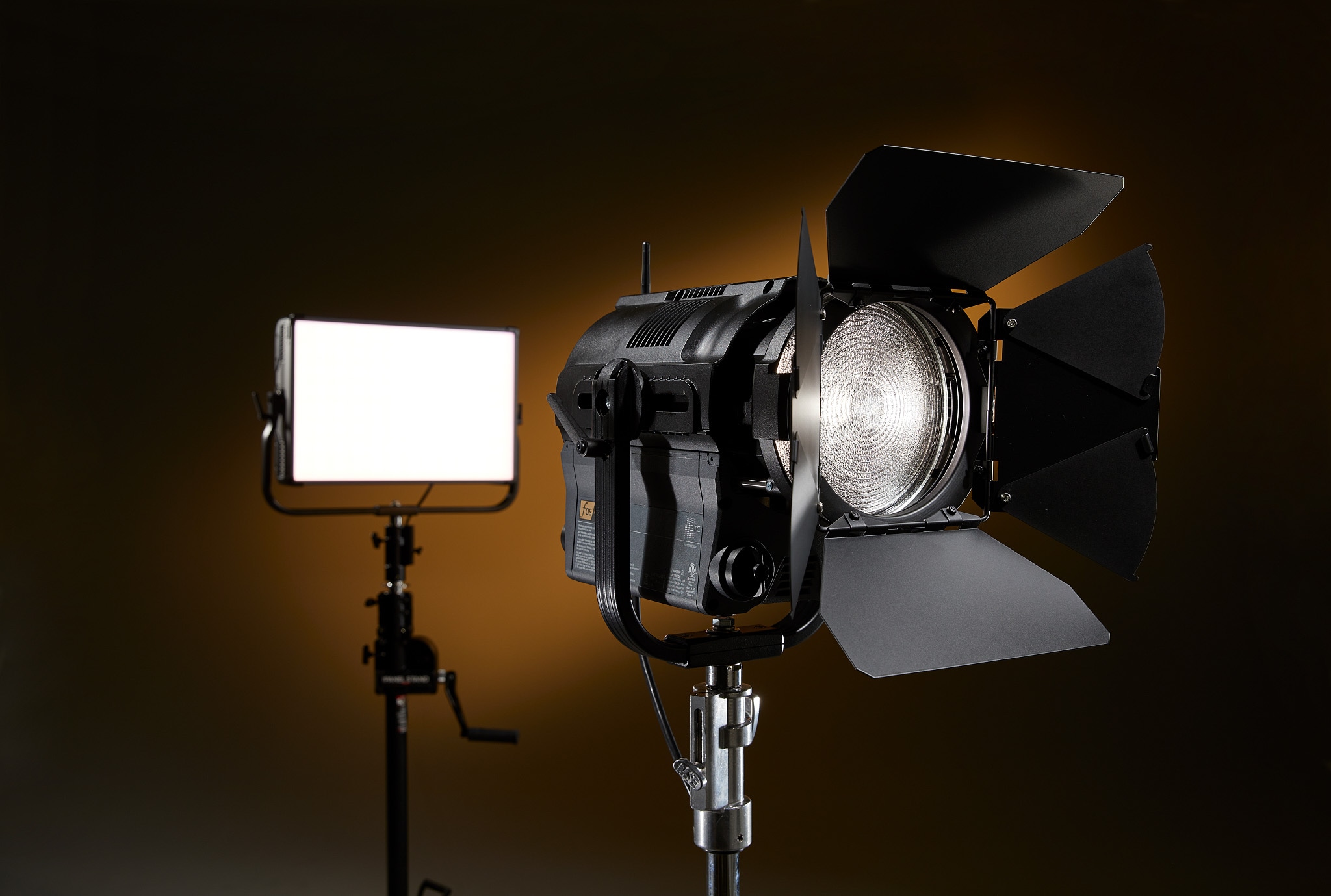

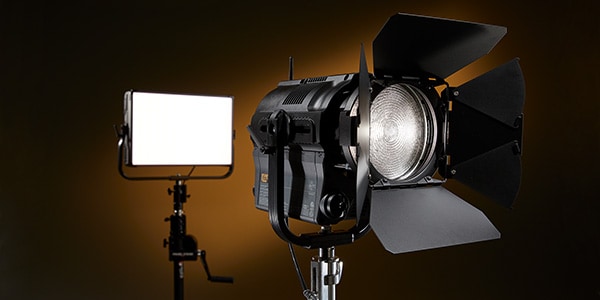

• Supports beam shaping with barn doors
• Camera flicker control: Supported
• PWM frequency: 5kHz / 25kHz

■ Effects
• Smooth LED dimming with 15-bit high-precision dimming
• Strobe
• Selectable dimming curve
• Red Shift function to replicate tungsten dimming
• Built-in effects: 12 types
• Presets: 12 types
• Sequence
• LED Droop Compensation
• Fan control

■ Color
• Daylight HDR 6-color mixing
• LED colors: Deep Red / Red / Mint / Cyan / Blue / Indigo
• Variable CCT: 1900-10450K
• Factory Calibrated LED Array
• Red Shift Function
• White Point Setting

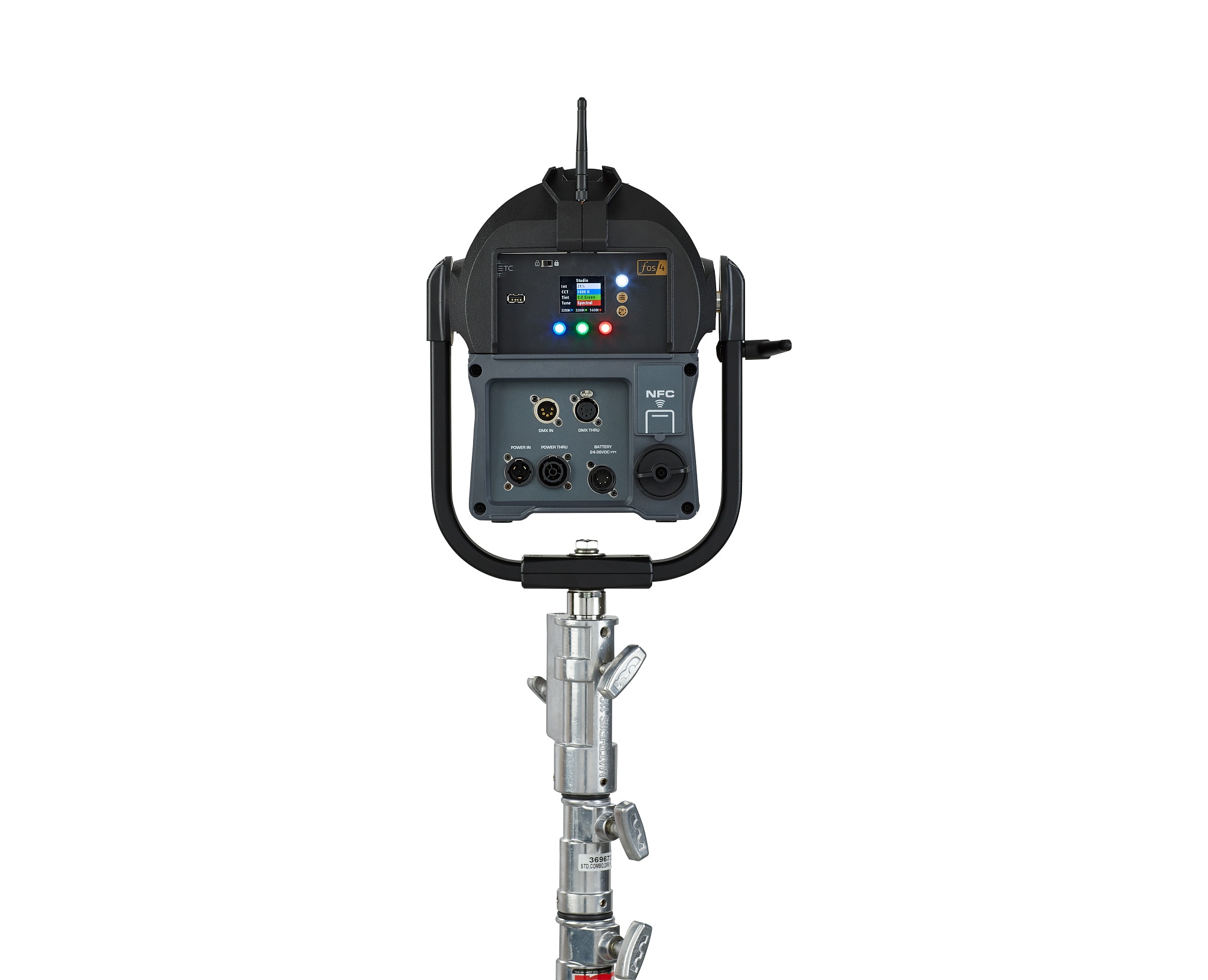

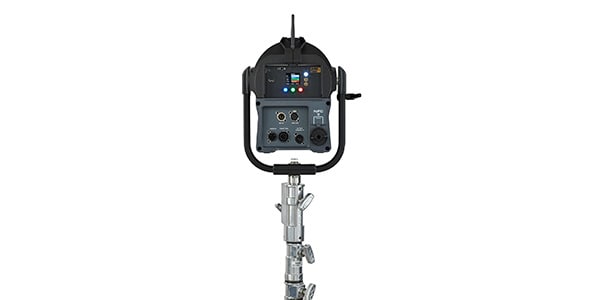

■ Control/Connections
• DMX512
• RDM
• City Theatrical Multiverse Wireless DMX/RDM
• DMX: 5-pin XLR
• DMX Modes: 7 modes
• DMX Channels: 1-12ch
• Wireless DMX Receiver: Built-in
• Full-Color LCD Display
• Local Control
• Presets: 12 types
• Sequence
• Built-in Effects: 12 types
• FixtureLink
• Multiverse Frequency: 2.400-2.480GHz
• Wireless Communication Range: Approx. 100m indoors / Approx. 500m line of sight (depending on usage environment)

■ Dimensions and Weight
• Height: 479mm
• Width: 299mm
• Depth: 356-505mm
• Weight: 11.1kg
• Lens Size: 7.5 inches

■ Electrical/Thermal Specifications
• Power Supply: AC100-240V, 50/60Hz
• DC Input: 24-36VDC
• AC Power Terminal: Neutrik TRUE1 TOP
• DC Input: 3-pin XLR
• Power Thru Compatible
• Power Consumption: 218.3W
• Number of Connectable Devices per Circuit: 6
• Number of Connectable Devices via Power In/Thru (15A): 5
• Operating Temperature: 0-40℃
• Cooling Fan: Built-in, Controllable
• LED Droop Compensation
• Operating Noise: 8.4-37.7dBA
• Protection Rating: IP20

■ Accessories (INCLUDED ITEMS)
• Yoke
• Color Frame
• Quick Card
• Power Cable
• 28mm Junior Pin
