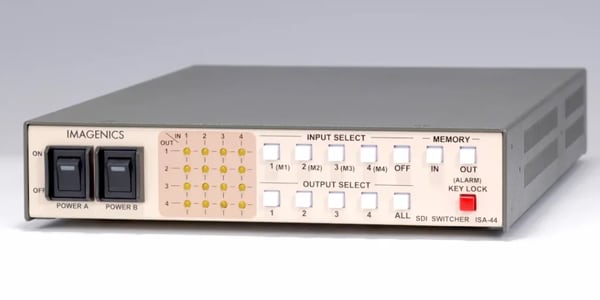

IMAGENICS / ISA-44

3G/HD/SD-SDI matrix switcher with power redundancy and monitoring functions. This is a 4-input, 4-output matrix switcher that supports multiple standards such as 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI.

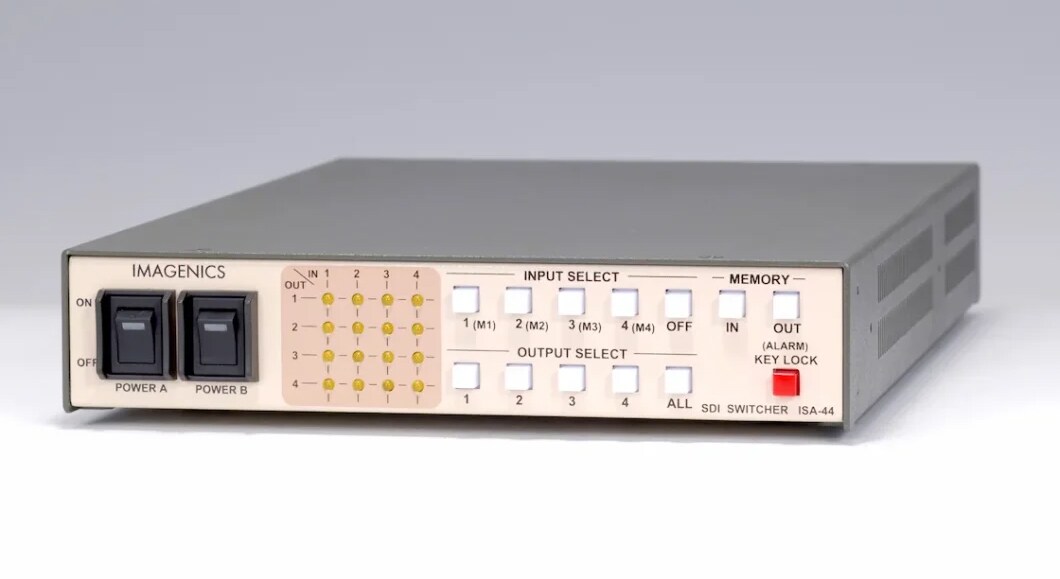

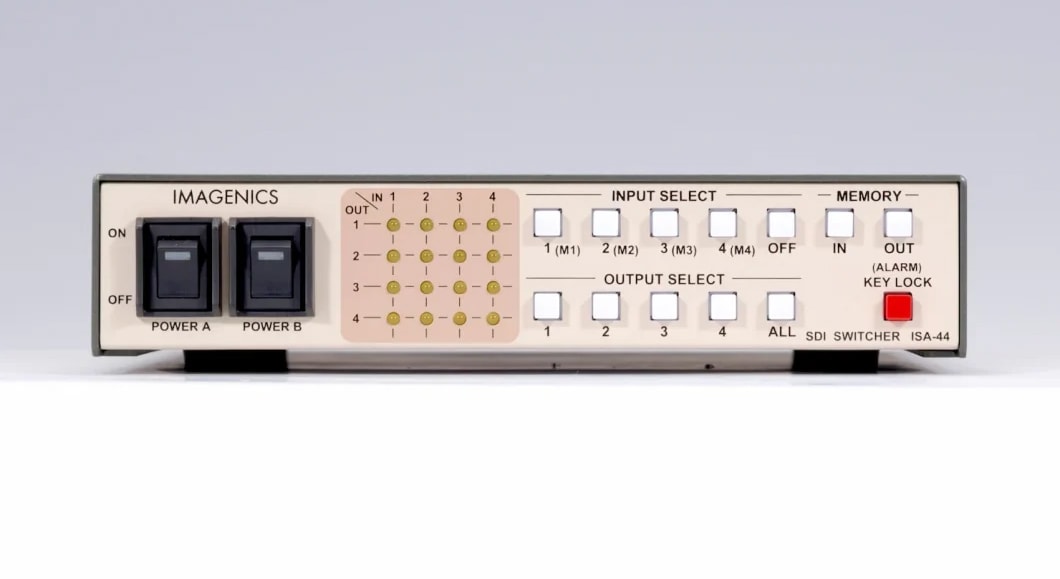

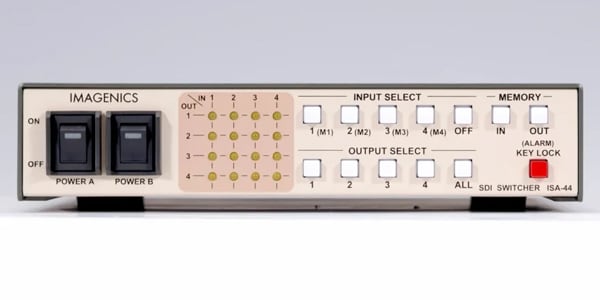

■4 input 4 output SDI matrix switcher

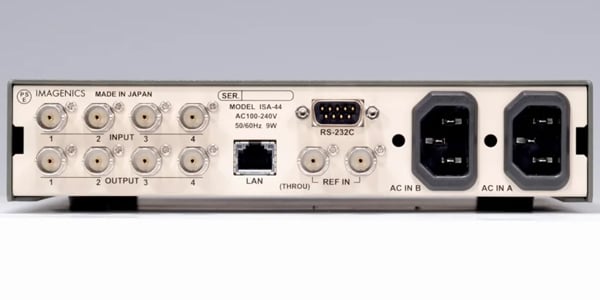

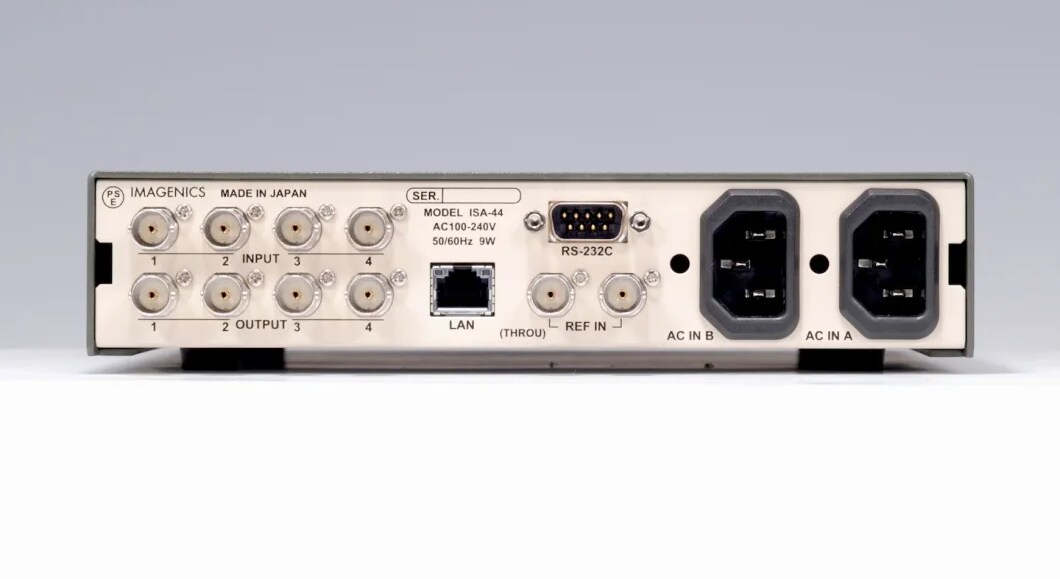

■Input: NRZI/NRZ signal 0.8V (p-p) 75Ω 4 systems (BNC)
■Output: NRZI/NRZ signal 0.8V (p-p) 75Ω 4 systems (BNC)
■Signal compensation range:
Automatic compensation up to 70m with 5CFB coaxial cable equivalent when inputting 3G-SDI (pathological signal)
Automatic compensation up to 100m using 5CFB coaxial cable equivalent when inputting HD-SDI (pathological signal)
Automatic compensation up to 200m using 5C2V coaxial cable equivalent when inputting SD-SDI (pathological signal)
Reference synchronization input:
Binary/three-level sync signal or black burst signal 0.3V(p-p) to 0.6V(p-p)
*3G-SDI only supports black burst signals
1 system BNCx2 loop through high impedance
■External control method:
10Base-T/100Base-TXRJ-45
RS-232C (D-sub 9 pin male fitting screw: inch)
■Other functions
SDI signal reclocking function
Output slew rate switching function by automatic input signal discrimination
Input selection information backup function
Blanking switch function with reference synchronization (SMPTE RP168-2002 compliant)
(DVB-ASI cannot use the blanking switch function)
Mixed input of 3G/HD/SD is possible (format conversion is not possible)
Dual power supply
SNMP trap sending function (power supply monitoring, input/output carrier monitoring, reference monitoring)
■Power supply (AC priority):
AC100V~AC240V50Hz/60Hz
■Power consumption: 9W (maximum)
■Mass: Approximately 2.7kg
■SIZE: 210(W)x44(H)x300(D)mm *Excluding protrusions
■Accessories:
2 power cables with locking mechanism for domestic use (3P-3SL)
Power supply 3P-2P conversion plug 2 pieces
2 power switch covers
