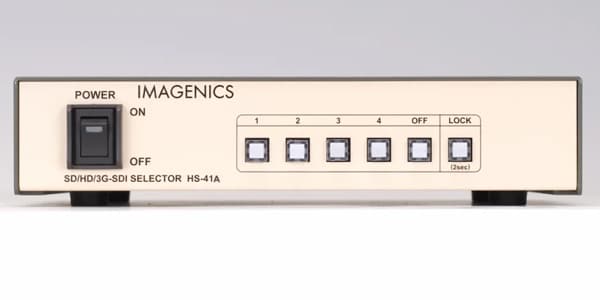

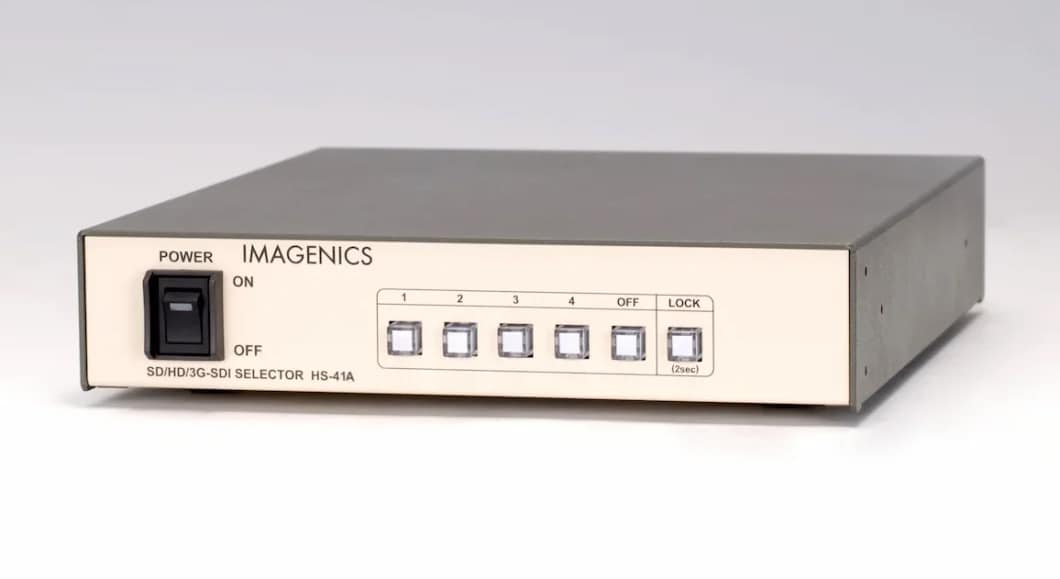

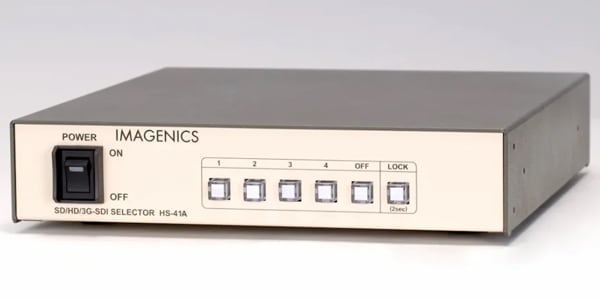

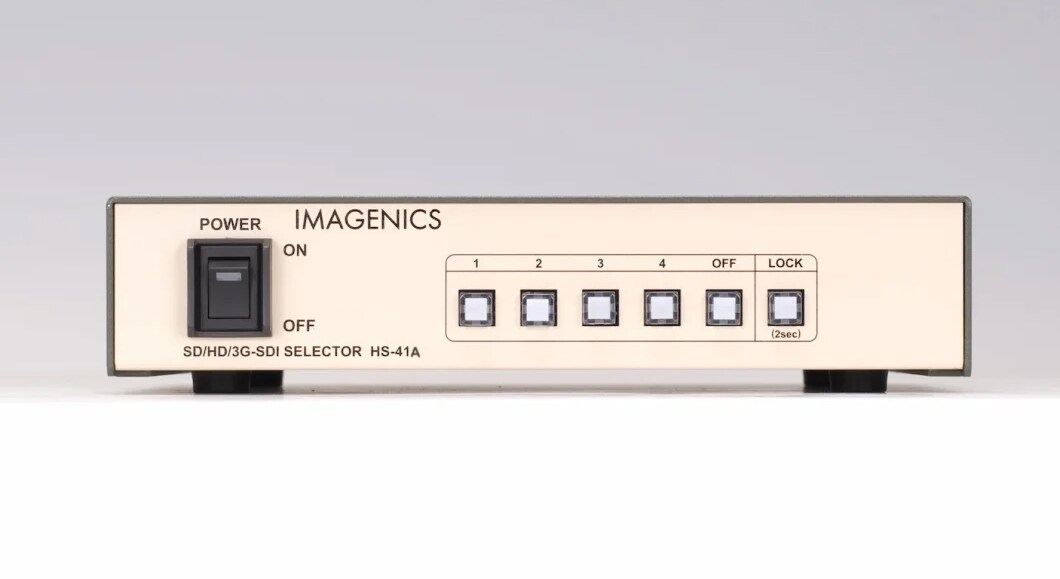

IMAGENICS / HS-41A

4x1 (2 distribution output) signal selector for 3G/HD/SD-SDI signals compliant with MPTE standards. In addition to normal switch operation, it is also equipped with an auto scan mode, which allows it to automatically switch to a number with a valid input signal.

■4 inputs 1 output SD/HD/3G-SDI signal selector
■Compatible standards:
SMPTE424M (SMPTEST424, 3G-SDI system), SMPTE292M (HD-SDI system),
SMPTE259M-C (SD-SDI system), DVB-ASI compliant
■Input signal:
NRZI/NRZ signal 0.8V (p-p) 75Ω 4 lines (BNC)
■Output signal:
NRZI/NRZ signal 0.8V (p-p) 75Ω 1 system 2 distribution (BNC)
■Signal compensation distance:
Automatic compensation up to 100 m using 5CFB coaxial cable equivalent when inputting 3G-SDI (pathological signal)
Automatic compensation up to 150 m using 5CFB coaxial cable equivalent when inputting HD-SDI (pathological signal)
Automatic compensation up to 250 m using 5C2V coaxial cable equivalent when inputting SD-SDI (pathological signal)

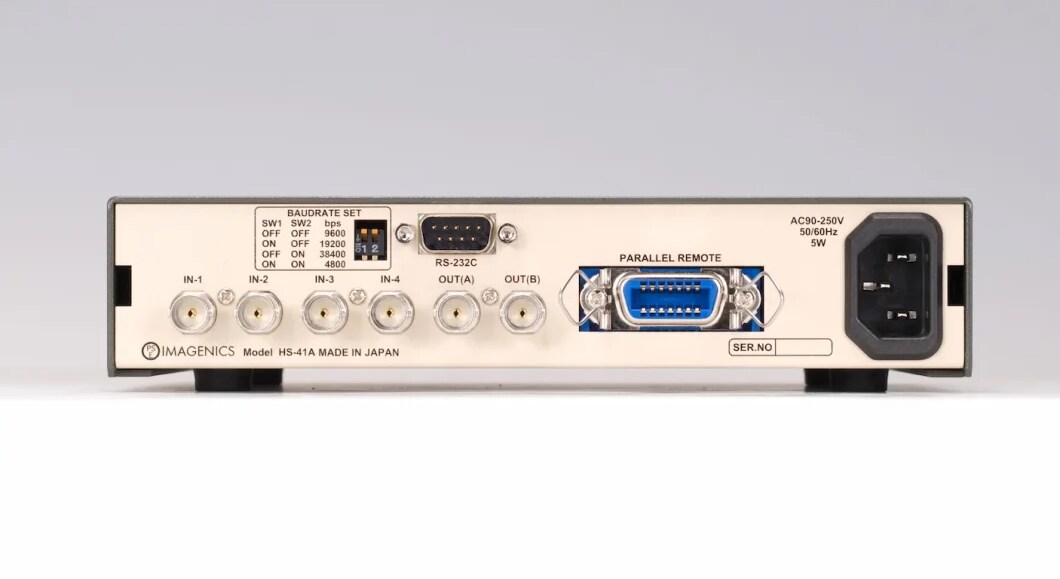

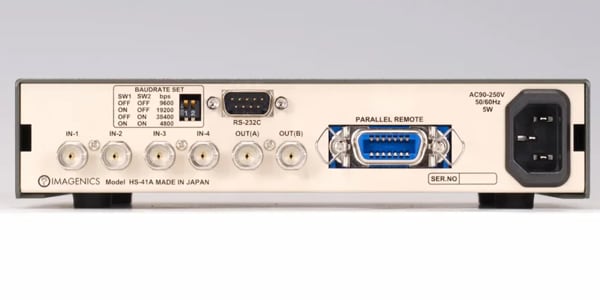

■External control
RS-232C: RS-232C compliant full duplex D-SUB9 (male) 1 system
Baud rate: Selectable from 4,800, 9,600 (initial value), 19,200, 38,400bps using rear DIP-SW
Flow control: No flow control (cannot be changed)
Communication format: 8 bits of data, 1 stop bit, no parity (cannot be changed)
Parallel remote:
Amphenol 14 pin (female) 1 system
Contact control equivalent to all front switches
Supports tally output using open collector
Can be extended up to 20m
■Other features:
Front parallel remote independent key lock function
Input detection display function, final state backup function (semi-permanent)
Automatic selection (auto scan mode) function by input video detection
others
■Power supply:
AC100V~AC250V50Hz/60Hz
■Power consumption: 5W (maximum)
■Mass: Approx. 2.2 kg
■SIZE: 210(W)x44(H)x230(D)mm *Excluding protrusions
