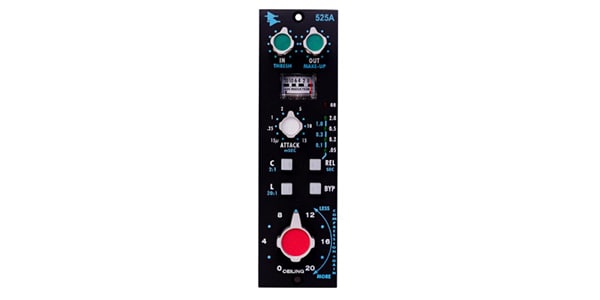

API / 525A

The API/525A is a FET compressor/limiter in the 500 series that inherits the sound of the legendary 525. In addition to variable attack and 7-stage release, it features Ceiling Control, which simultaneously adjusts compression amount and compensation gain. Recommended for those seeking traditional tone and flexible operation.

■ Discrete FET Compressor/Limiter

■ 500 Series

The ""525 Discrete Compressor,"" which first appeared in the early 1970s and was reissued over 20 years ago, has become one of the most trusted vintage-style compressors in the industry. Based on the powerful circuitry of the original 525, the newly introduced ""525A"" maintains the discrete audio path while expanding its functionality to accommodate even more applications in modern studios. Skillfully combining API's proprietary transformers and 2510 and 2520 op-amps, it maintains the original sonic characteristics while achieving the reliability, durability, and consistent quality common to all API products.



* Adjustable attack time from 15 microseconds to 15 milliseconds (New Feature)

* Selectable 7-step release mode (0.05 seconds to 2.0 seconds) (New Feature)

* Unique ""Ceiling Control"" function that simultaneously adjusts threshold and makeup gain

* Classic 1970s style analog gain reduction VU meter

* Traditional API discrete output circuit

* Equipped with 2520 and 2510 op-amps

* Proprietary API output transformer

* Balanced input/output support

* Hardware bypass

■Product Specifications

Input Impedance: 80kΩ (Balanced)

Output Impedance: 75Ω (Transformer type, Balanced)

Maximum Input Level: +27dBu

Maximum Output Level: +28dBu

Attack Time: 15μsec to 15msec

Release Time: +0.05, 0.1, 0.2, 0.3, 0.5 1.0, 2.0 sec

Slope: Compression/2:1, Limiting/20:1

Maximum Gain Reduction: 25dB

Metering: Illuminated analog gain reduction dB meter with gain reduction LED indicator

Frequency Response: ±0.5dB, 20Hz-40kHz

S/N Ratio: 112dB

Power Consumption: 3 watts

Dimensions: Approx. 3.81cm x Approx. 13.34cm x Approx. 17.78cm

Weight: Approx. 0.68kg
