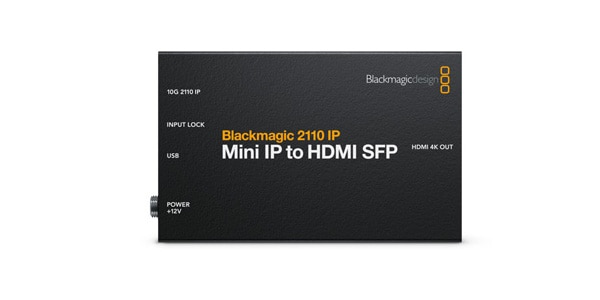

Blackmagic Design / Blackmagic 2110 IP Mini IP to HDMI SFP

Blackmagic 2110 IP Mini IP to HDMI SFP lets you monitor 2110 IP video and audio on any HDMI monitor or TV over long distances.

■Converter

【Connections】
■Connections：
HDMI Video Outputs：1
■HDMI Audio Outputs：1
■SMPTE ST-2110 IP Video Inputs：
1 x 10G Ethernet
■SMPTE ST 2110 IP Audio Inputs：
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
■Ethernet：
1 x 10Gb/s RJ‑45 PoE++ connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
■Computer Interface
1 x USB-C 3.0 for configuration and firmware updates.

【Video Standards】
■HDMI HD Video Standards：
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97,
1080p30, 1080p47.95, 1080p48, 1080p50,
1080p59.94, 1080p60


■HDMI Ultra HD Video Standards：
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
■HDMI 4K Video Standards：
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
■SMPTE Compliance：
SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40.
■HDMI Color Precision：4:2:2
■HDMI Color Space：YUV

【IP Video Compliance】
■SMPTE 2110-20 (Uncompressed Video)：IGMP v2
■SMPTE 2110-21 (Traffic Shaping)：
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
■SMPTE 2110-30 (PCM)：
Audio Conformance level: Level C
■SMPTE 2110-40 (Ancillary Data)：
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
■Codec：
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
■Precision Time Protocol：
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
■NMOS IS-04 Discovery and Registration：
v1.3.2
Peer-to-peer via mDNS/DNS‑SD
■NMOS IS-05 Connection Management：
v1.1.2
■NMOS BCP-002-01：
Natural Grouping
■NMOS BCP-004-01：
Receiver capabilities
■Displays：
1 x IP Input Lock LED indicator light

*The warranty period for this product is one year from the manufacturer.
