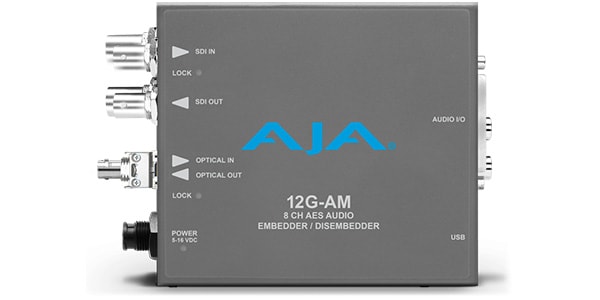

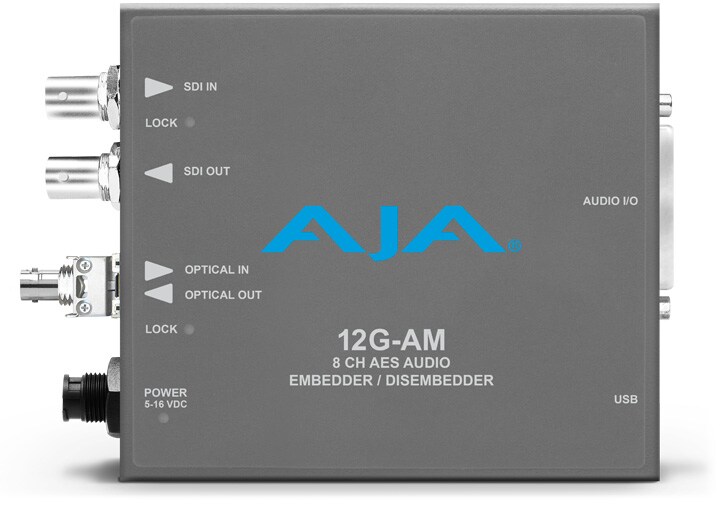

AJA Video Systems / 12G-AM-T-ST

12G-SDI compatible, 8-channel AES embedder/disembedder with ST fiber transmitter SFP.

■12G-SDI compatible, 8-channel AES embedder/disembedder
■Video formats:
(4K) 4096 x 2160p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD) 3840 x 2160p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(2K) 2048 x 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i50, 59.94, 60
(HD) 1280 x 720p50, 59.94, 60* (SD) 625i50, 59.94, 60
(SD) 625i50
(SD)525i59.94
RGB and YCbCr, 4:4:4/4:2:2, 10-bit
Note: For details on supported resolutions/frame rates, please refer to “12G-AMVideoFormat” in the manual available for download from the AJA.com12G-AM product page: Support menu or from the Document menu.
Digital video input:
12G-SDIBNC x 1, SMPTE 259/292/424/2081/2082
Single-link SD/HD/2K/UltraHD/4K
Single-link 3G-SDI Level A and B-DL, SMPTE425
■ Digital video outputs:
2G-SDIBNC x 1, SMPTE259/292/424/2081/2082
Single-link SD/HD/2K/UltraHD/4K
Single-link 3G-SDI Level A and B-DL, SMPTE425
■Fiber output (12G-AM-T-ST)
1 x 12G-SDIFiberST connector, SMPTE297/259/292/424/2081/2082
Nominal wavelength: Tx1260nm (min), 1310nm (normal), 1360nm (max)
Optical Output:-5dBm(min), 2dBm(max)
Attenuation ratio: 3.4dB (min.)
■Cable equalization:
(Belden 1694A coaxial)
12Gbps, 65m
6Gbps, 125m
3Gbps, 190m
1.5Gbps, 200m
270Mbps, 405m
■Video Path Delay:
Video output is reclocked at the same frame rate as video input and video output is delayed. If there is no input, the video output will not be projected.
Video latency (time measured between video input and video output connector)
12G=3.2μsec
6G=3.2μsec
3GlevelA=3.2μsec
3GlevelB-DL=6.3μsec
HD(1.5Gb)=6.3μsec
SD(270Mb)=17.2μsec
■Audio Input/Output
AESPCM audio is converted with 1 x 25-pin D-Sub female connector, 8-channel input, 8-channel output selectable in pairs
Included breakout cable (25-pin D-Sub male connector x 1)
Breakout connector XLR female input x 4 (AES3110ohm)
Breakout connector XLR male output x 4 (AES3110ohm)
■Audio data format:
AES3-2003
■Embedded Audio
SMPTE272M(SD):20-bit, synchronized at 48kHz
SMPTE299M(3G/HD):24-bit, 48kHz sync
Embedded audio can be pass-through, deleted, or overwritten
Supports up to 16 channels
Note: Supports up to 8 channels of embedded audio in 2048x1080p/psf29.97 and 30 formats
■Embedded Pass Audio Latency
(time measured between audio input and video output connectors)
1500μsec(SRCON)
400μsec(SRCOFF)
■Disembedded Path Audio Latency:
(time measured between video input and audio output connectors)
210μsec
■User Interface
External DIP switches
USB connection to operate MiniConfig software application to configure the device via Mac or Windows
■Weight: 0.3 kg
■Power supply
+5-16VDC, 10 watts, power adapter included
■Operating Environment
Safe operating temperature: 0°C to 40°C (32°F to 104°F)
Safe storage temperature (with power off): -40°C to 60°C (-40°F to 140°F)
Operating relative humidity: 10% to 90% (non-condensing)
Operating altitude: <3,000 m (<10,000 ft)
