TK AUDIO / T-Komp

The TK AUDIO/T-Komp is a dual-mono compressor whose compression ratio changes according to the input level. It features two operating modes and a blend function, allowing for everything from smooth volume adjustments to punchy sound shaping. It's recommended for those who want flexible control over drums and mix buses.

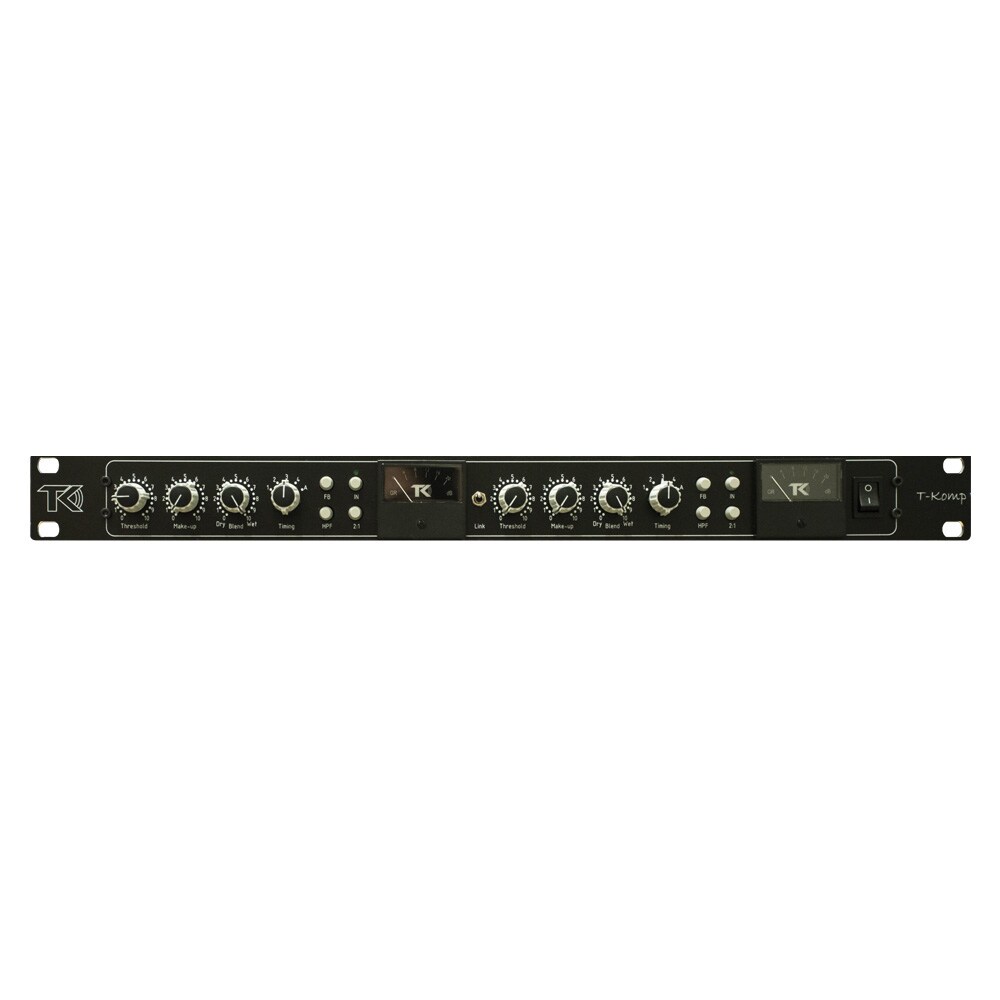

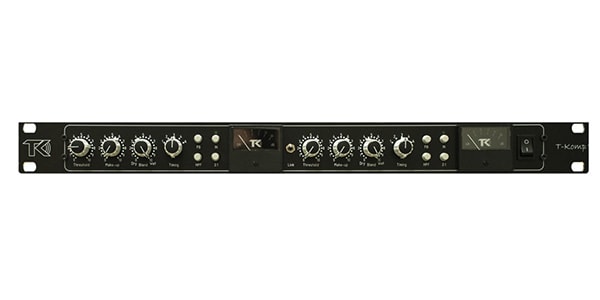

■ Dual Mono Compressor, 1U

? Level-dependent Vari-Mu type ratio setting

? Two adjustable ratio oranges for different applications

? Feedforward and feedback modes

? Five RMS detection speed settings

? Blend control

The T-Komp is a uniquely designed dual mono compressor that brings the ratio curve of a classic variable-mu compressor to modern recording. The ratio is level-dependent, meaning the compression ratio increases as the input level increases. This offers a highly versatile compressor design.

For greater flexibility, the T-Komp features two ratio oranges: a range up to 20:1, ideal for smashing instruments, especially drum tracks, and a narrower range up to 2:1, perfect for bus compression.

Furthermore, the T-Komp offers two selectable modes: a feedforward mode for a punchy, modern response, and a feedback mode for a smoother, more musical response.

The RMS detector detection speed of the T-Komp can be set using five controls called Timing controls. The fourth setting is the slowest, which is the same setting as the 160-VU compressor. The speeds from there to the first setting are progressively faster. The fifth setting is a program-dependent adaptive mode. In this mode, the RMS detector functions faster for fast signals and slower for slow signals to prevent unwanted low frequencies.

Input impedance: 24kohm

Output impedance: 50ohm

Max in/output level: +26dBu

Frequency response: 20Hz to 20kHz +/- 0,1dB

Signal to noise ratio @ 0dBu: better than 94dB

THD: level and compression dependent, mostly even harmonics



Threshold

Make-up gain: 0 to +20dB

Blend control: from dry to wet

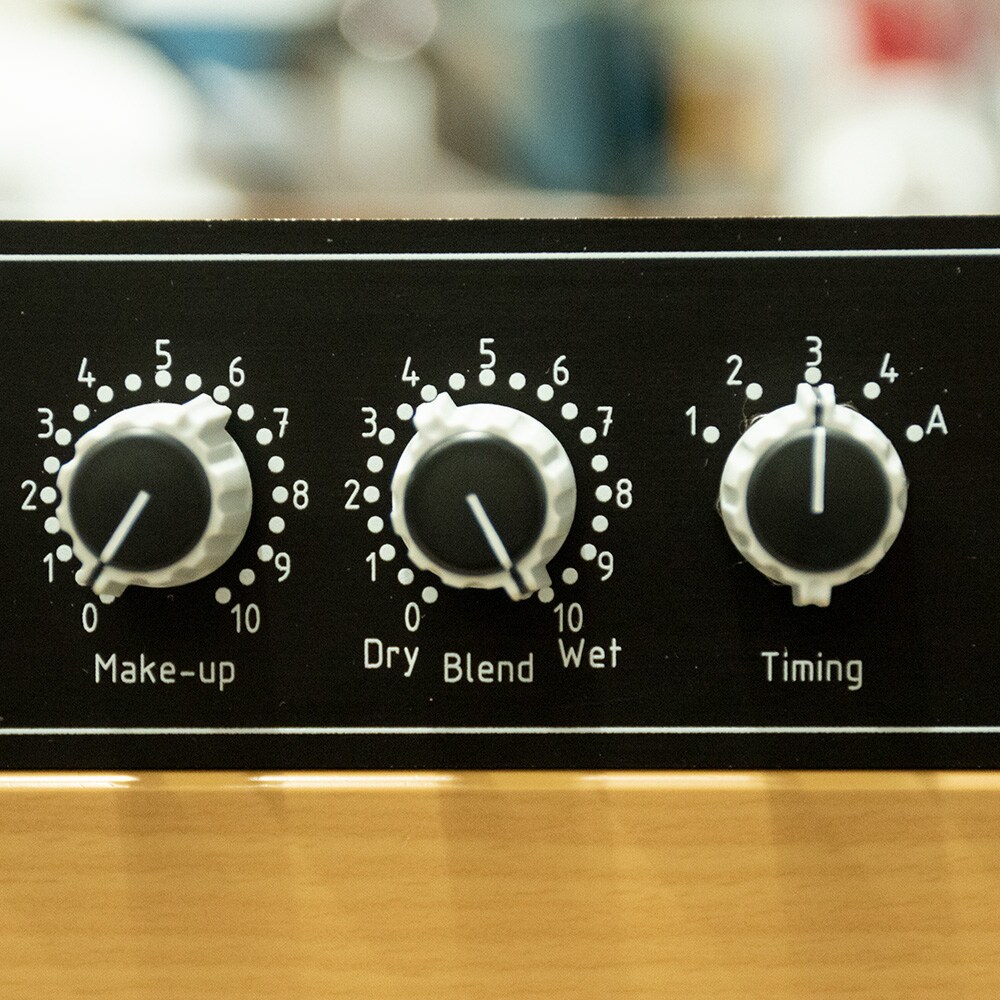

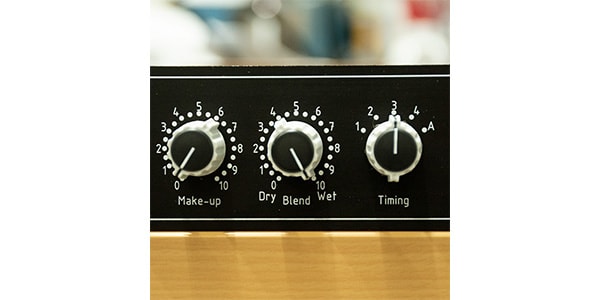

Timing

fast

medium fast

medium slow

slow (160VU)

program dependent adaptive mode



FB: selects feed-back mode

HP filter: 150Hz, -6dB octave

In: compression in/out

2:1: selects a more narrow ratio range

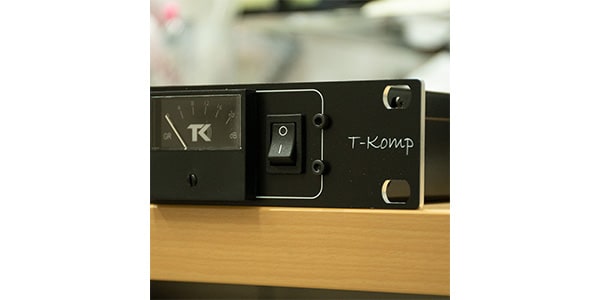

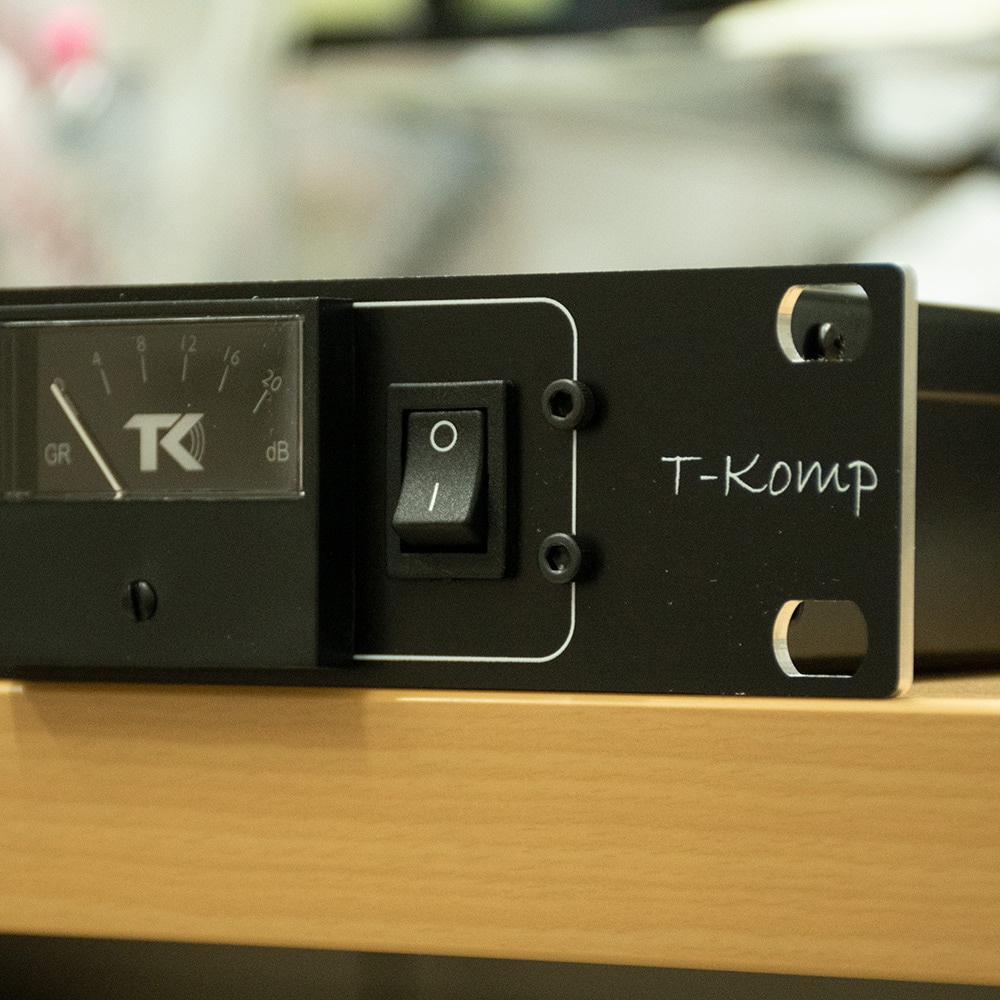

Gain reduction meter

Link switch

115v or 230v, selectable
