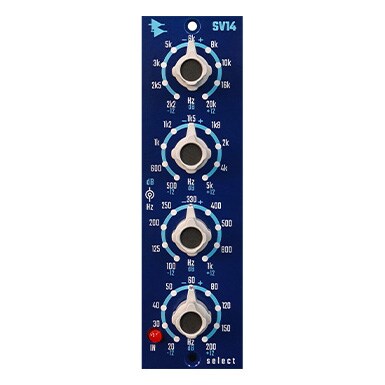

API / SV14

The API SV14 is an EQ module that faithfully redesigns the APSI 562 EQ, which API sold from the 1970s to the 1980s and enjoyed great popularity. It achieves a high headroom of +24dB and a clean yet warm sound.

■ API 500 Module

■ 4-Band Parametric Equalizer

The SV14 is a simple 4-band EQ module compatible with the 500 series, but its circuit design is rooted in API's history.

It faithfully redesigns the APSI 562 EQ, which API sold from the 1970s to the 1980s and enjoyed great popularity, achieving a high headroom of +24dB and a clean, warm sound.

It also features an in/out switch, transformer-balanced output, boost/cut, and dual concentric knobs for continuous frequency control.

Product specifications

Connectors API 500 Edge Connector VPR Alliance Compliant

Input Impedance 15KOhms Balanced

Output Impedance 75 Ohms, Transformer Balanced

Bandwidth +/- 0.5dB, 20Hz - 50kHz

THD+N @ 1kHz, +4dBu <0.02%

Maximum Level +24dBu

Signal-to-Noise Ratio 115dB

EQ Bands 4 bands, all +/-12dB Peak/Dip type

Lo 20Hz - 200Hz

Lo-Mid 100Hz - 1kHz

Hi-Mid 500Hz - 5kHz

Hi 2kHz - 20kHz

Power Consumption +/- 16 VDC @ 35 mA

Unit Size: 3.8 cm x 13.3 cm x 17.8 cm

Shipping Size 11.4cm x 16.5cm x 25.4cm

Unit weight 680g

Shipping Weight 907g
