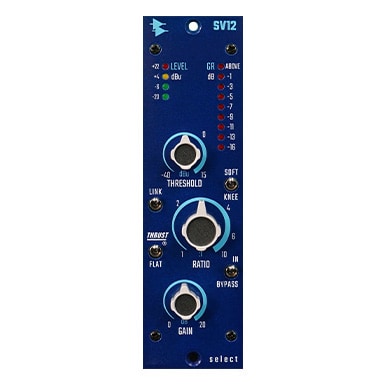

API / SV12

The API SV12 is a dynamics module that incorporates the dynamics circuitry of the ATI Paragon live analog mixing console into the 500 series while maintaining the original quality.

■ API 500 Module

■ Compressor

With its simple interface and full LED meter displaying output/gain reduction, this module is designed for intuitive and visual ease of use.

The ATI Paragon console's dynamics, which provide reliable reduction without generating unwanted artifacts or distortion, have long been a hidden gem that has garnered many fans. The SV12 faithfully inherits the warm yet clean texture that enhances the tone of your tracks.

Equipped with API's patented THRUST circuit, it suppresses high frequencies and delivers a smooth sound. The two channels can be linked and used as a stereo compressor with RMS power summing.

This module is highly recommended for anyone seeking a high-quality, versatile dynamics processor that offers superior sound quality and reliability.

Product specifications

Connectors API 500 Edge Connector VPR Alliance Compliant

Input Impedance >20KOhms Balanced

Bandwidth +/- 0.5dB, 20Hz - 30kHz

THD+N @ 1kHz, + 4dBu <0.03%

Maximum Level +24dBu

Signal-to-Noise Ratio 112dB

Meter -20 to +22 dBu Output Level, 0 to -16 dB Gain Reduction

Threshold Range -40dBu to +15dBu

Ratio Range 1:1 to 10:1

Makeup Gain Range 0dB to +20dB

Hard or Soft Knee switchable -

Flat or Thrust side chain filter switchable -

Attack Time Program and Control Adaptive, 10mSec to 40mSec

Release Time Program and Control Adaptive, 30mSec to 400mSec

Power Consumption +/- 16 VDC @ 100mA

Unit Size 1U 500 Module, 3.81cm x 13.34cm x 17.78cm

Shipping Size 11.43 cm x 16.51 cm x 25.40 cm

Unit weight 0.45kg

Shipping weight 0.68kg
