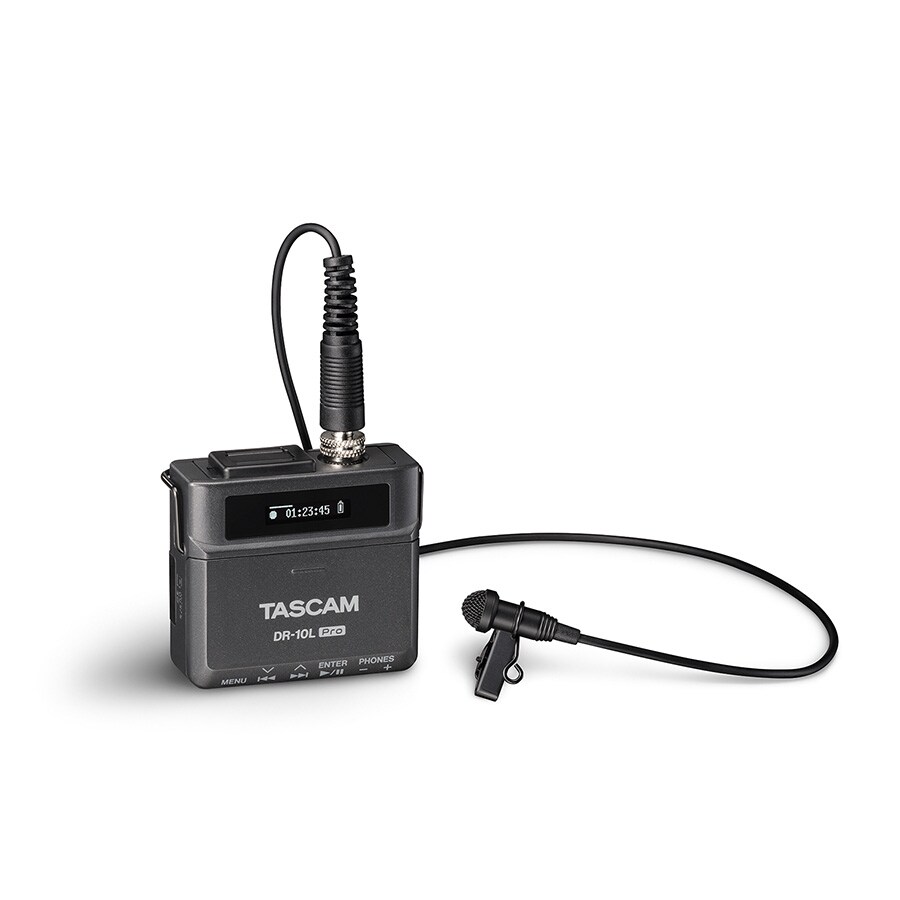

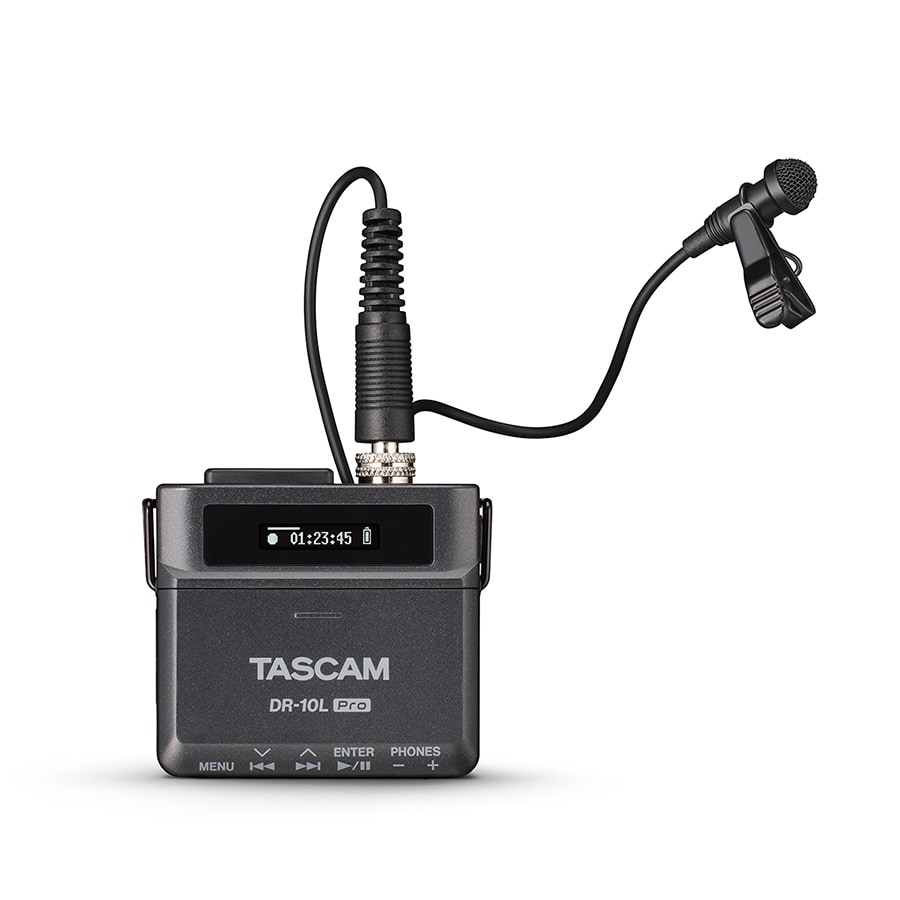

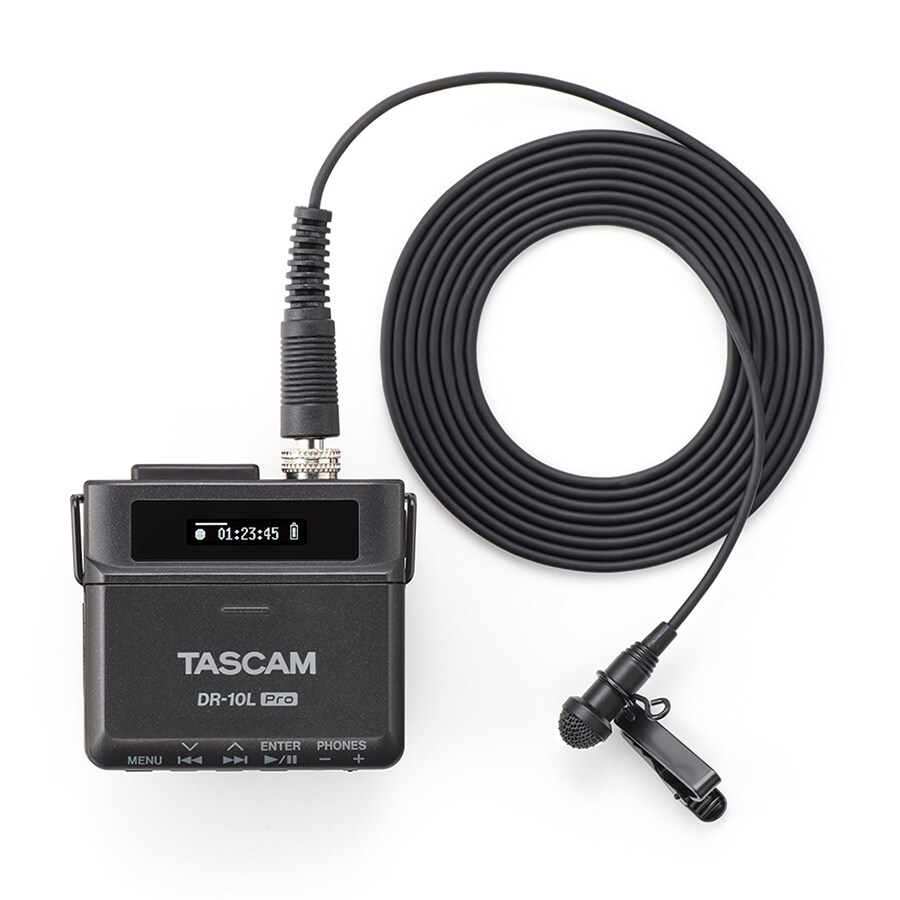

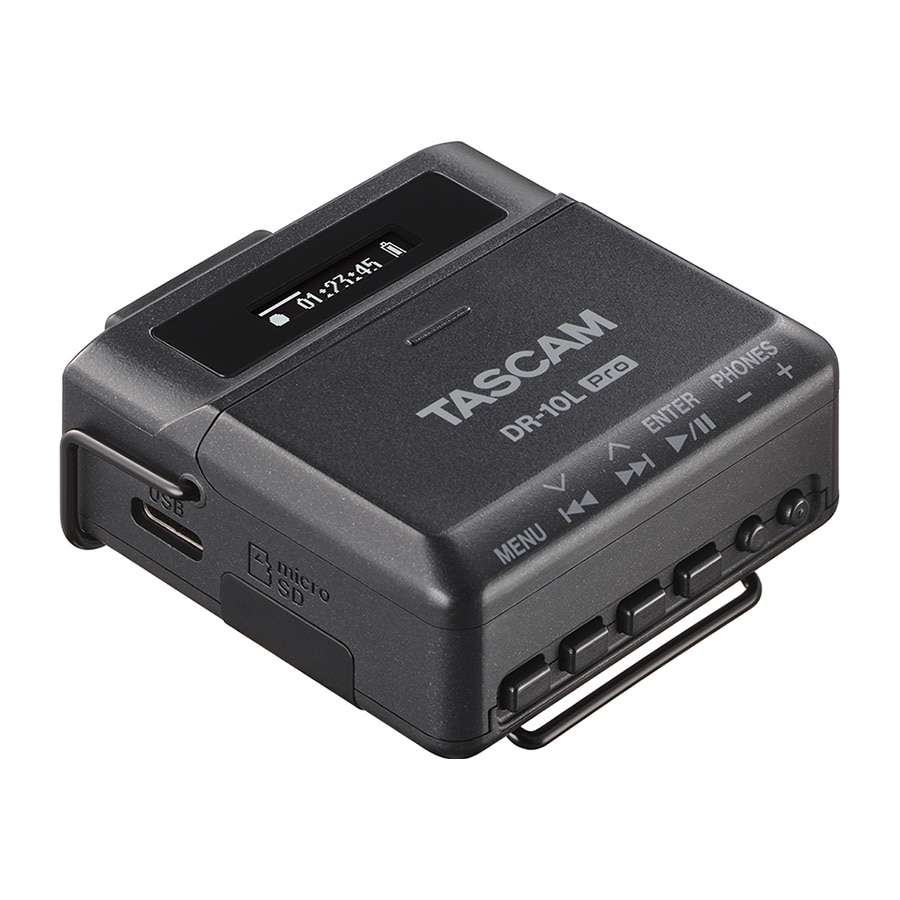

TASCAM / DR-10L Pro pin microphone field recorder

Clear, reliable, ultra-compact pin microphone field recorder for clear, reliable recording of voices, with 32-bit float recording to help you record everything from whispers to shouts.

Field Recorder

[Recorder section specifications].
■Recording media:
microSD card (64MB to 2GB), microSDHC card (4GB to 32GB), microSDXC card (64GB to 512GB)
Recording and playback format
WAV (BWF): 44.1k/48kHz, 16/24-bit, 32-bit float
MP3: 44.1k/48kHz
Recording: 128k/192kbps
Playback: 32-320kbps.
Analogue audio input ratings

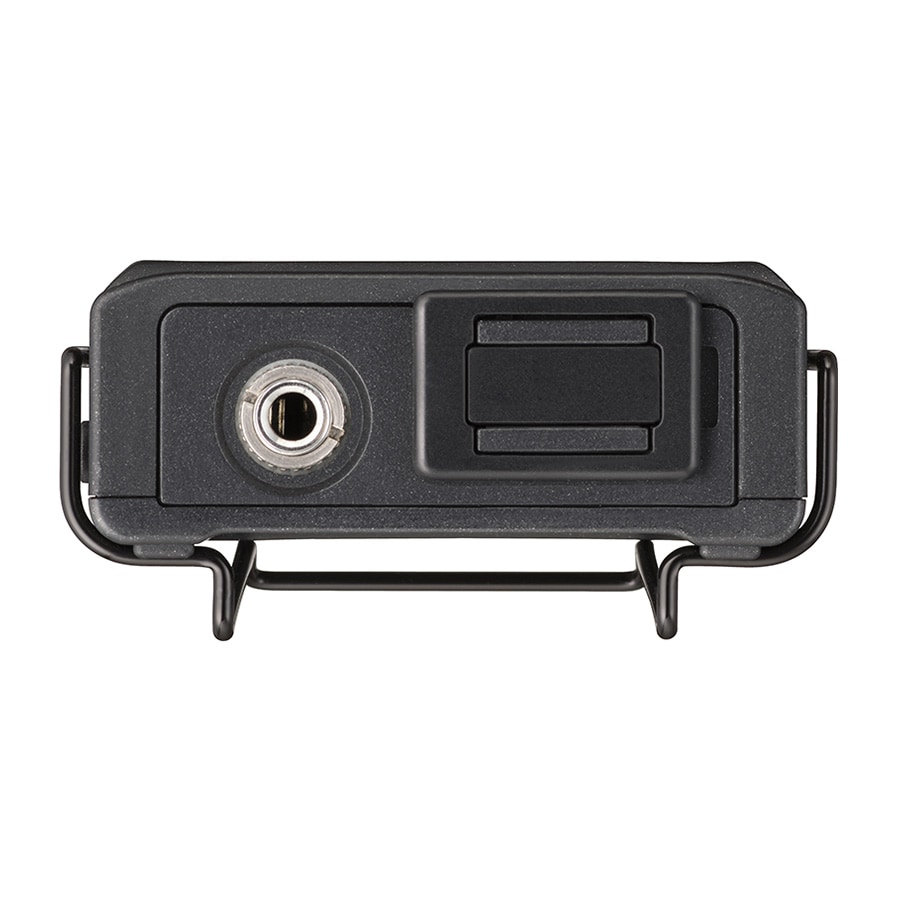

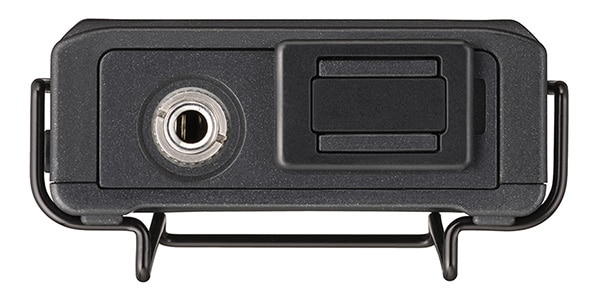

Input terminal
Connector: 3.5mm (1/8") mini TRS (with screw lock)
Maximum input level: -11dBV
Microphone input gain: 7.5dB to 38dB
Input impedance: 2kΩ min.

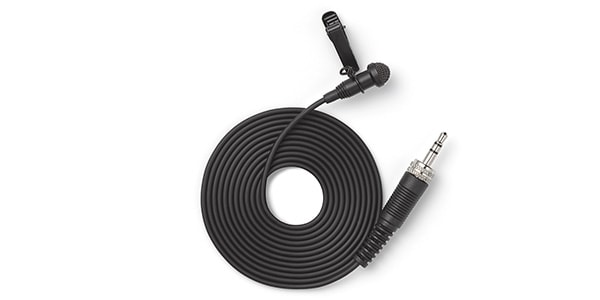

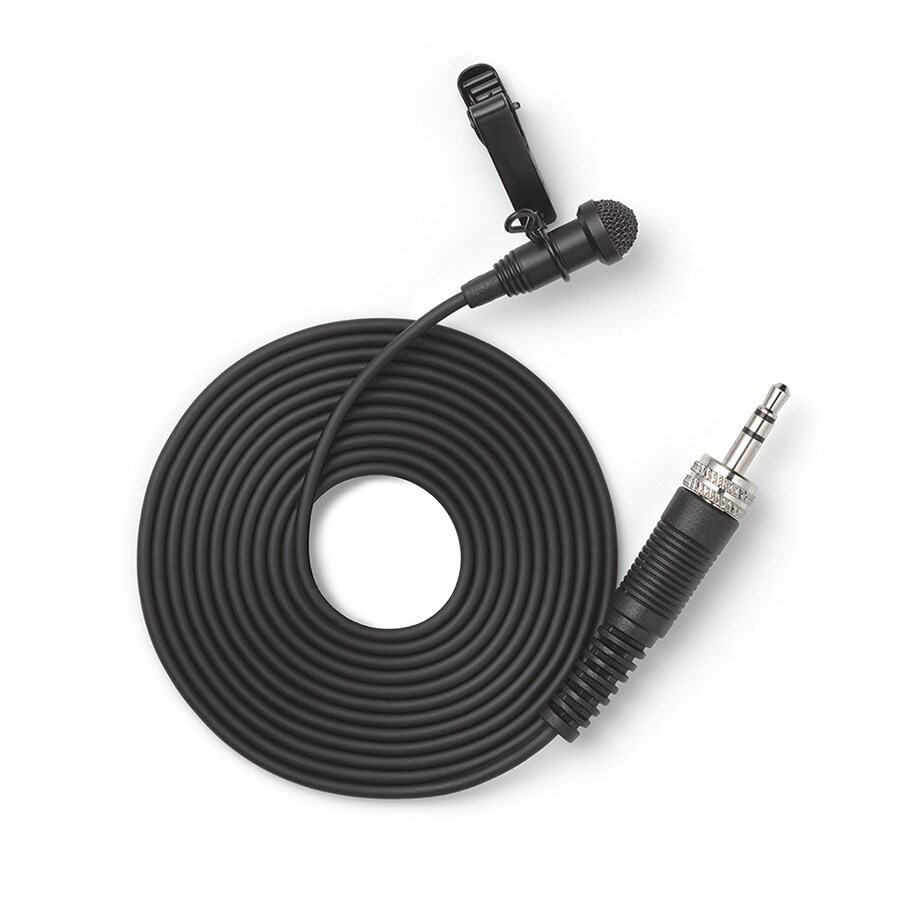

Included microphone (TM-10L)
Microphone sensitivity: -42dBV/Pa
Maximum input sound pressure: 115dBSPL
Cable length: 1.6m
Analogue audio output rating

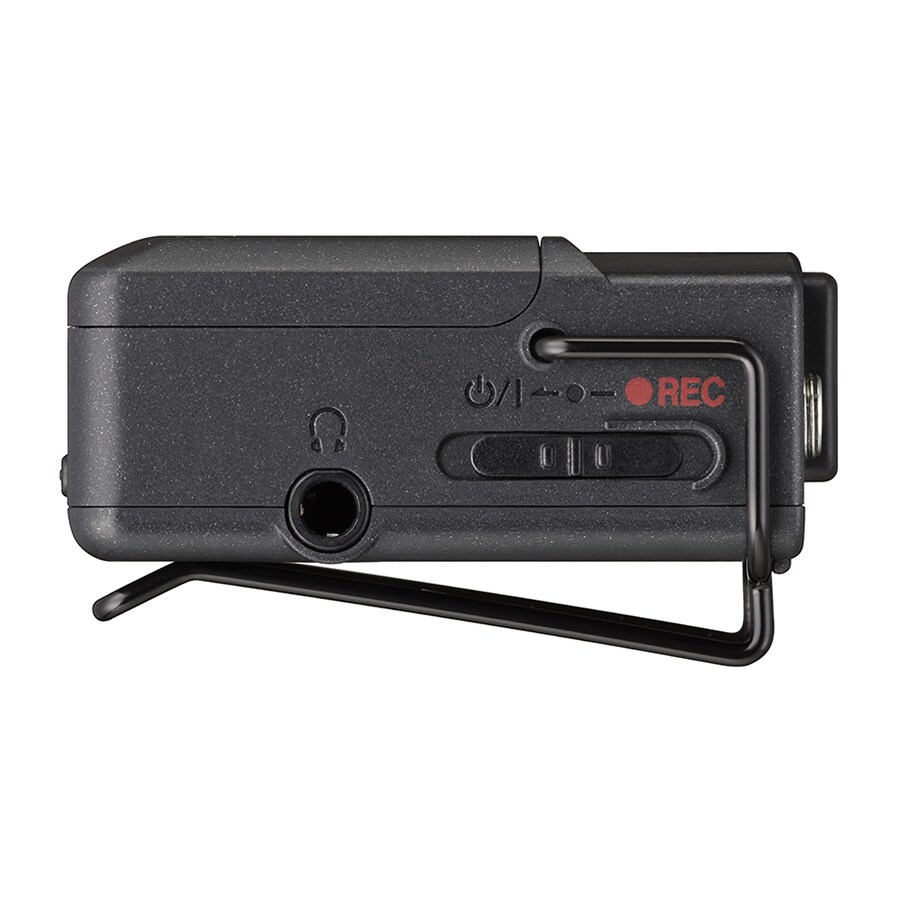

Headphone output
Connector 3.5mm (1/8") stereo mini jack (audio output is DUAL MONO).
Maximum output 10mW + 10mW (THD + N 0.1% or less, at 32 Ω load)
Control input/output ratings.

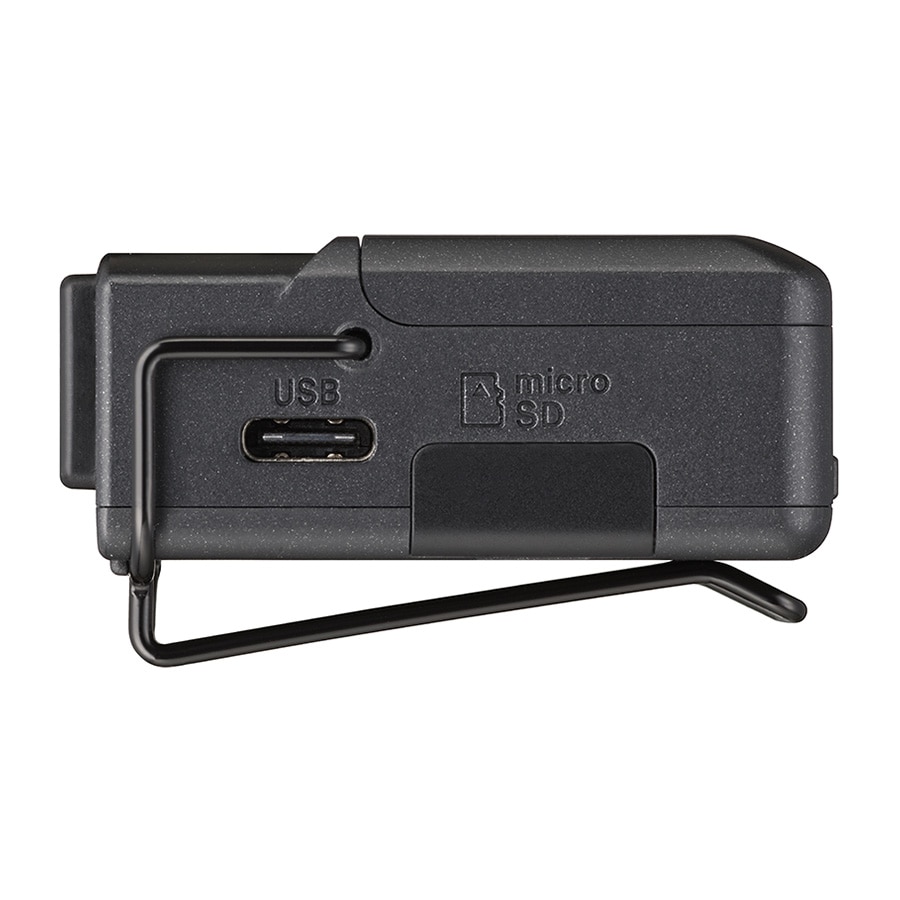

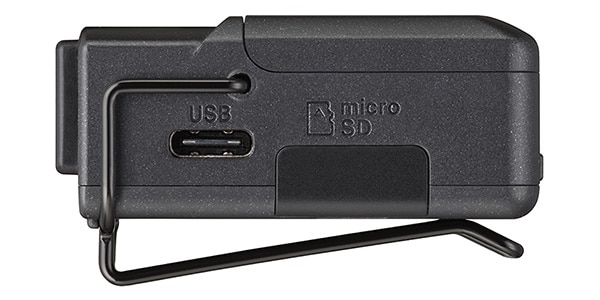

USB connector
Connector Type-C
Format USB2.0 HIGH SPEED mass storage class
Bluetooth device connection terminal Dedicated to Bluetooth adapter (AK-BT1).
Microphone bias voltage 2.3V
Power source AAA batteries x 2 (alkaline, nickel-hydrogen or lithium batteries, sold separately), USB bus power from PC
Power consumption (battery) 0.3W (at maximum)
Current consumption (USB bus power) 0.1 A (at maximum)
Rechargeable lithium battery for storing date and time information x 1 (built-in)
Dimensions (excluding projections) 53 (W) × 50.7 (H) × 21.4 (D) mm
Weight 65 g (including battery) / 43 g (not including battery)
Operating temperature 0 - 40°C (32 - 104°F)

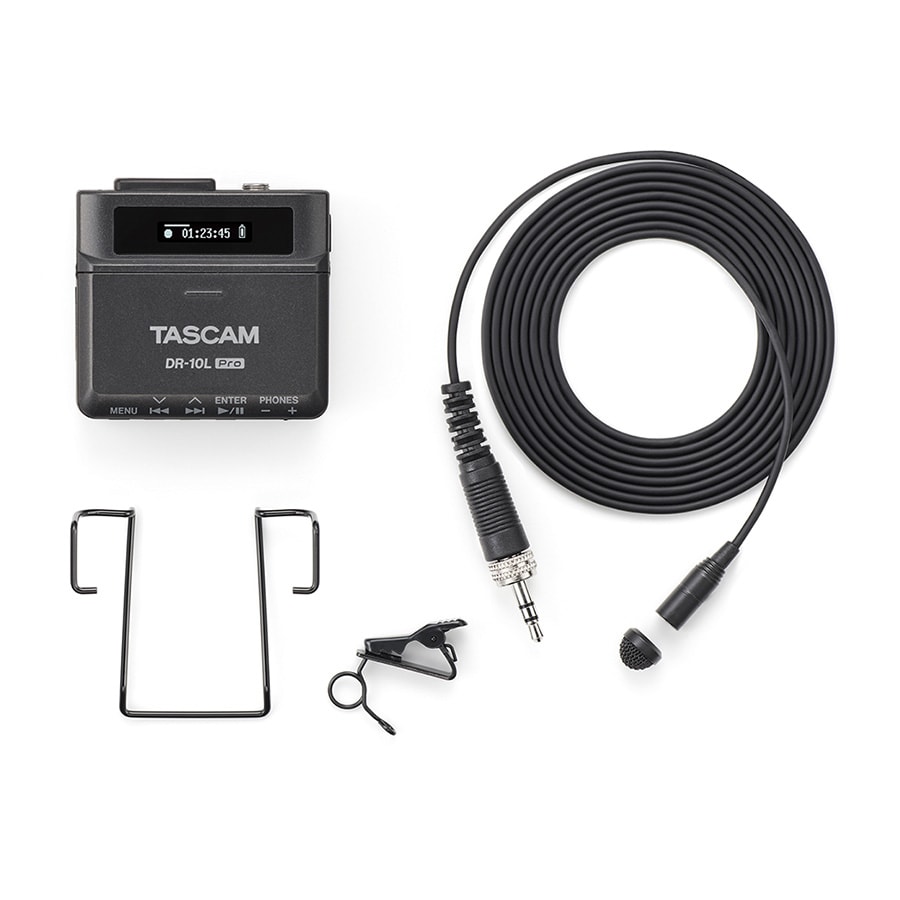

■ Included items:
DR-10L Pro × 1

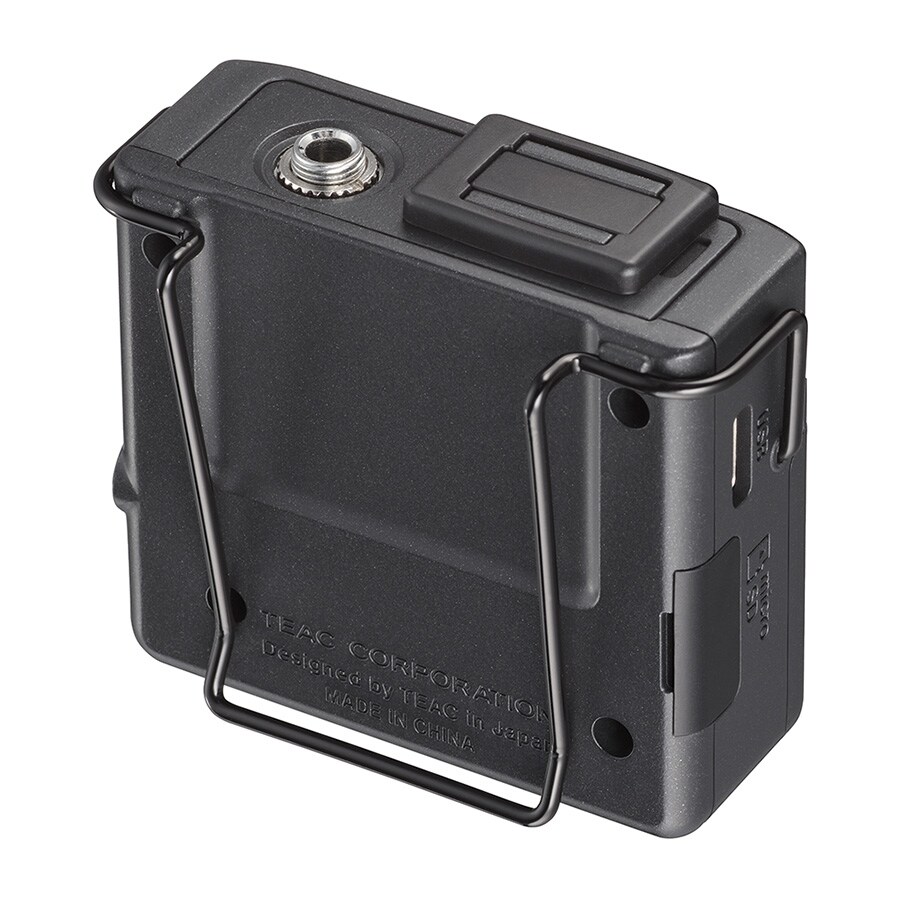

Belt clip × 1
USB cable (Type A ? Type C) x 1
TM-10L
- Labelled microphone x 1
- Microphone clip × 1
- Windscreen x 1
1 Start-up guide (with warranty card)
TASCAM ID registration guide x 1
1 iZotope RX Elements download card
