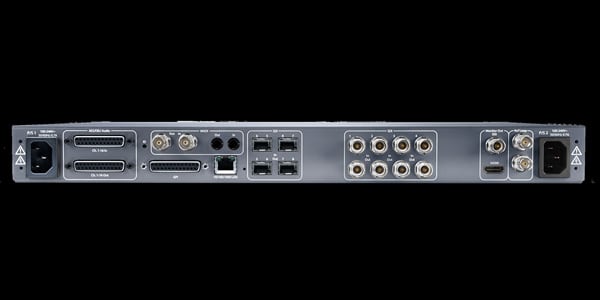

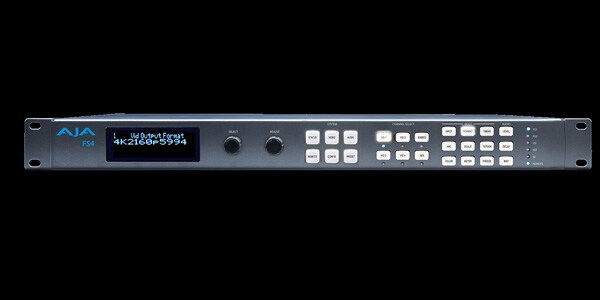

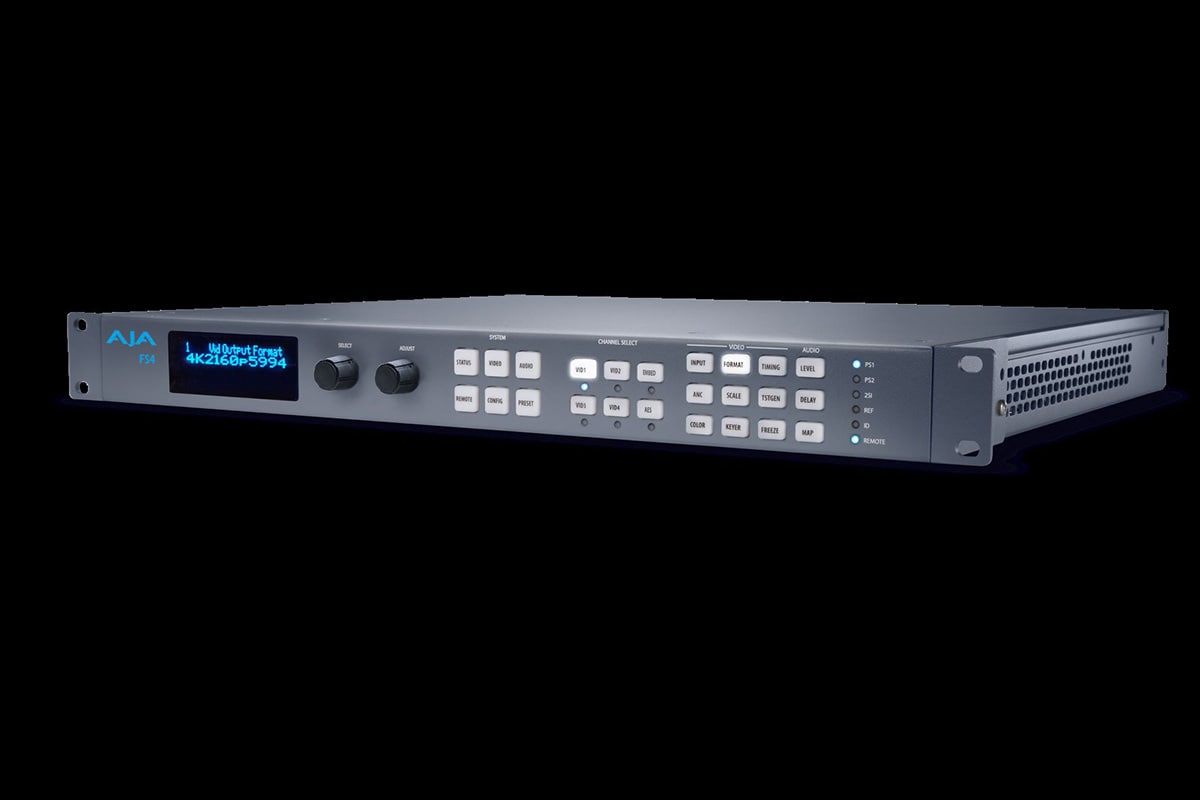

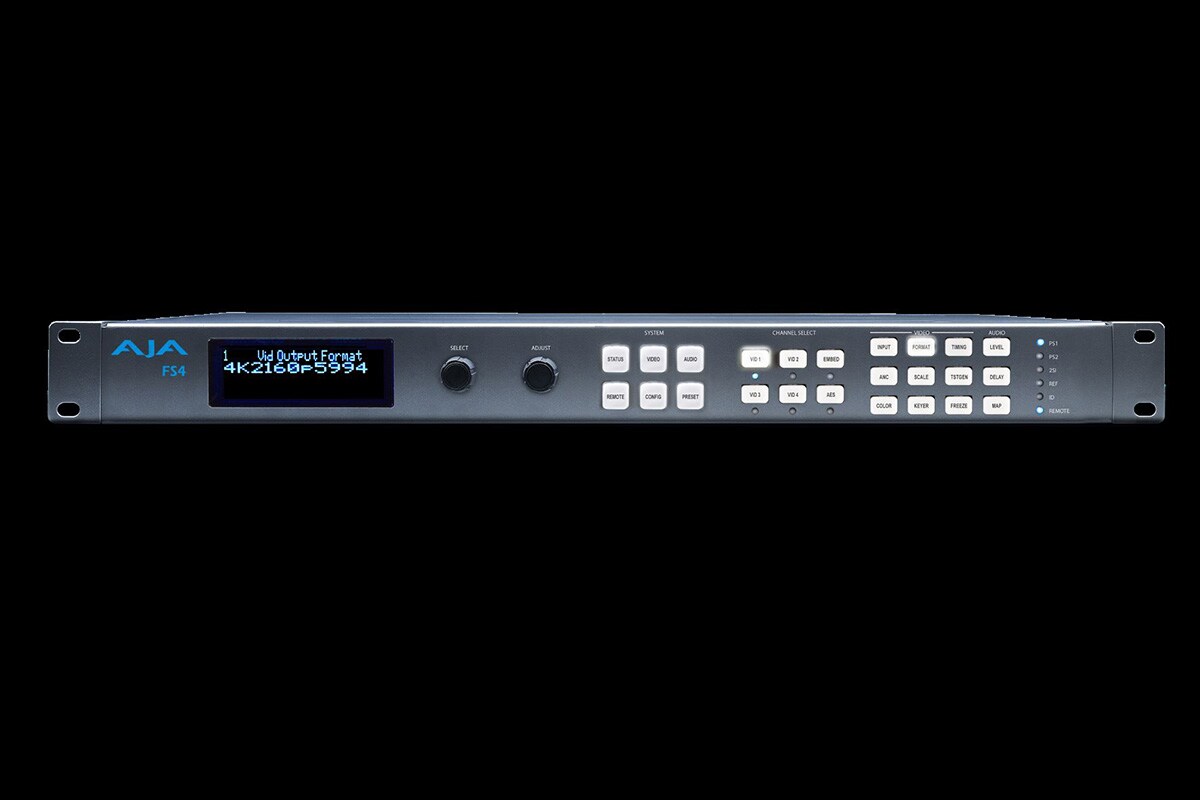

AJA Video Systems / FS4-R0

Frame synchronizer & up/down/cross converter capable of processing four channels of 2K/HD/SD or one 4K/UHD channel. Has a frame synchronizer and converter.

Frame synchronizer & up/down/cross converter
■Operation modes:
Four independent 2K/HD/SD video processors
One 4K/UltraHD/2K/HD/SD video processor
■Video Formats:
(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(4K)4096x2160PsF 23.98, 24, 25, 29.97, 30
(UltraHD)3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(UltraHD)3840x2160PsF 23.98, 24, 25, 29.97, 30
(2K)2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD)1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD)1920x1080PsF 23.98, 24, 25, 29.97, 30
(HD)1920x1080i 50, 59.94, 60
(HD) 1280x720p 50, 59.94, 60
(SD) 625i 50
(SD) 525i 59.94
YCbCr, 4:2:2, 10-bit
SIZE: 444.5(W)x44.45(H)x406.4(D)mm 3.6kg
