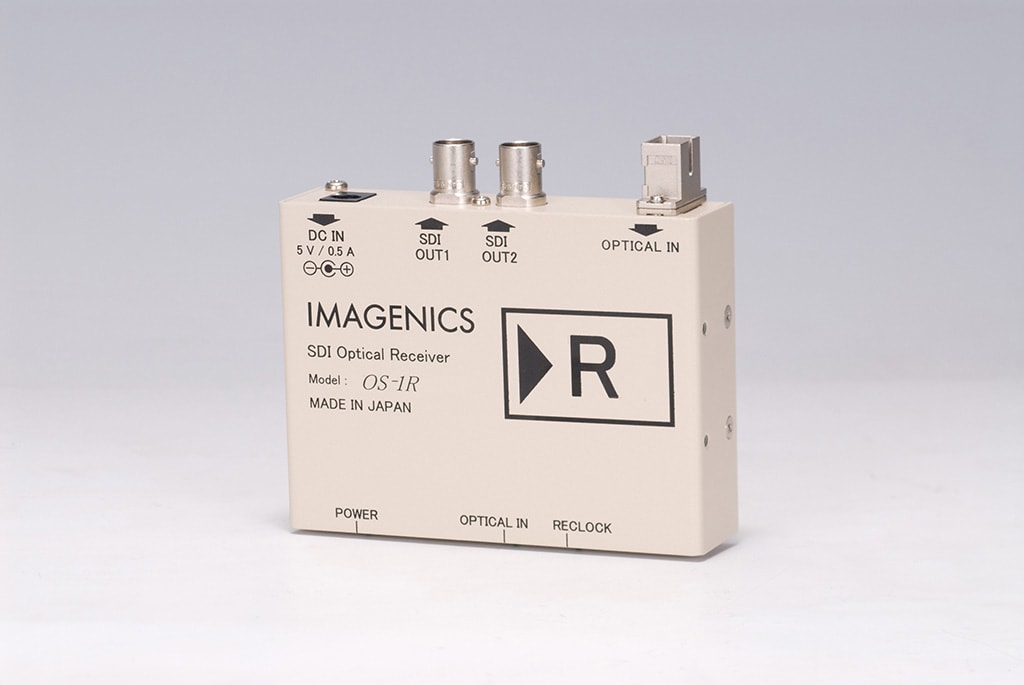

IMAGENICS / OS-1R

An optical receiver that converts the optical signal output from OS-1T or OS-1TD into a 3G-SDI, HD-SDI, SD-SDI, or DVB-ASI signal. Even if the optical signal is attenuated, good signal regeneration is possible.

■Signal system:
Complies with SMPTE424M (3G-SDI), SMPTE 292M (HD-SDI), SMPTE 259M-C (SD-SDI), EN50083-9 (DVB-ASI) standards
■Compatible optical fiber and connector specifications:
Fiber type: Single mode fiber
Category, core diameter, cladding: 8.6 to 9.5 μm/125 μm when equivalent to OS1 (dimensions are reference values)
Number of cores: 1
Polishing: PC polishing, SPC polishing, AdPC polishing, UPC polishing
Connector: SC connector
Fiber type: GI multimode fiber
Category, core diameter, cladding: 50 or 62.5 μm/125 μm when equivalent to OM3 or OM2 (dimensions are reference values)
Number of cores: 1
Polishing: PC polishing,
Connector: SC connector
■Input: Optical input (average) level: -19.0dBm to 0dBm
Other specifications conform to the output specifications of the OS-1T
■Output
SDI output: 0.8V (p-p) 75Ω NRZ I/NRZ 1 system 2 distribution (connector: BNC)
Transmission distance

When using GI multimode optical fiber cord: Maximum approx. 1km
When using single mode optical fiber cord: Maximum approx. 20km

When using single mode optical fiber cord: Each branch, maximum 3.5km

When using single mode optical fiber cord: 10km to approx. 50km

When using single mode optical fiber cord: Each branch, maximum 30km

When using single mode optical fiber cord, each branch: Maximum 10 km

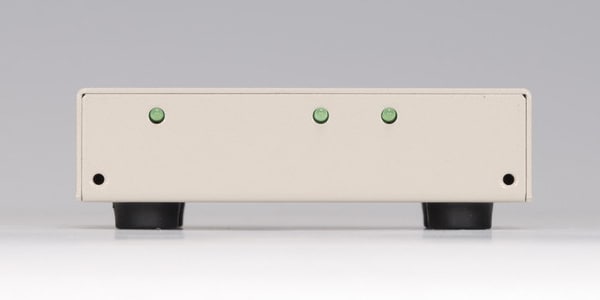

■LED indicator: POWER, OPTICAL IN, RECLOCK
■Power supply: DC 5 V 0.5 A
■Power consumption: 2.5 W (max.)
■SIZE: 100 (W) x 25 (H) x 75 (D) mm (excluding protrusions) Weight: Approx. 280 g
