IMAGENICS / HS-1616 SDI Matrix Selector

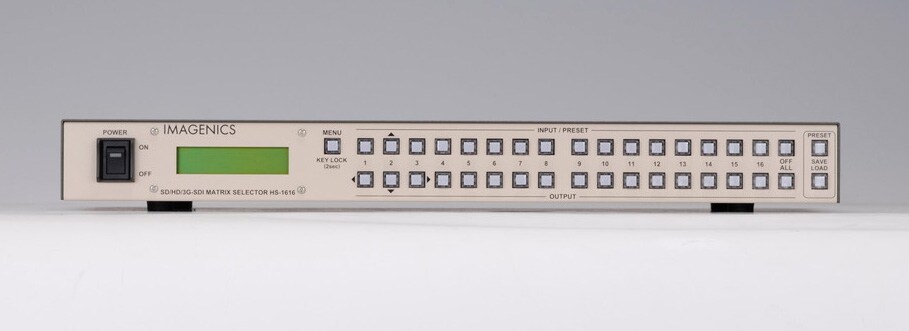

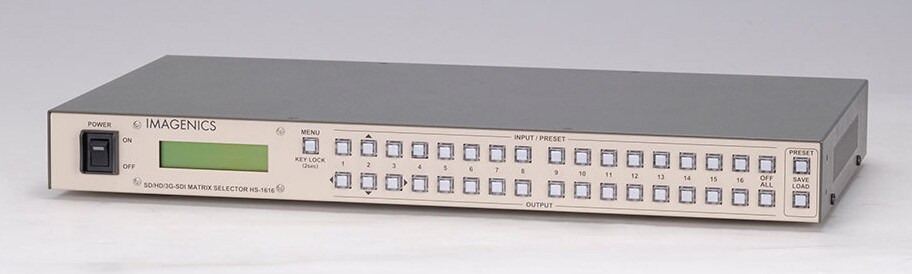

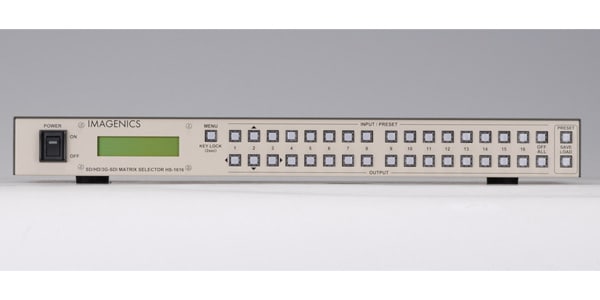

A matrix selector with 16 inputs and 16 outputs that supports SD-SDI, HD-SDI, 3G-SDI and DVB-ASI. In addition to various operations on the front panel of the main unit, it is also possible to control by external communication via RS-232C and LAN.

・Supported standards SD-SDI (SMPTE ST 259M-C) HD-SDI (SMPTE ST 292-1) 3G-SDI (SMPTE ST 424M) DVB-ASI (EN 50083-9) compliant

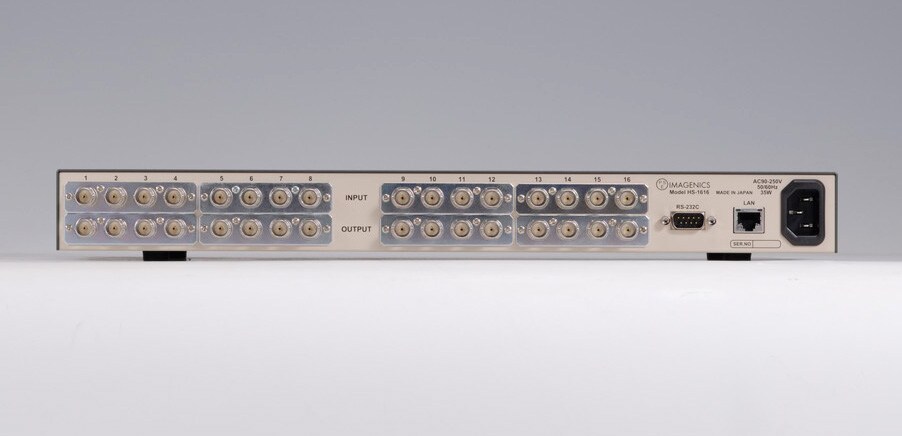

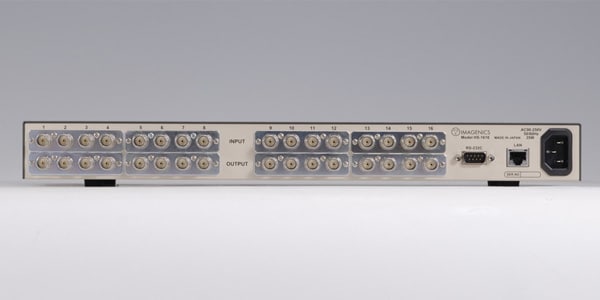

・Input signal NRZI/NRZ 0.8 Vp-p 75 Ω BNC ×16
・Output signal NRZI/NRZ 0.8 Vp-p 75 Ω BNC ×16

・Signal compensation distance
Automatic compensation up to 100 m with 5CFB equivalent coaxial cable when 3G-SDI pathological signal is input
Automatic compensation up to 150 m with 5CFB equivalent coaxial cable when HD-SDI pathological signal is input
Automatic compensation up to 250 m with 5C2V equivalent coaxial cable when SD-SDI pathological signal is input
・External control 10BASE-T / 100BASE-TX RJ-45 1 system
RS-232C D-sub 9 pin (male) 1 system
·others
Input signal detection/display function, internal temperature and fan rotation status display function, SDI signal reclock function, key lock function to prevent erroneous operation, 16-pattern preset memory function (semi-permanent), final state backup function (semi-permanent) ) other
・Power supply AC 90 V to AC 250 V 50 Hz ・ 60 Hz
・Power consumption 35 W (maximum)
・Weight: Approx. 4.5 kg
・External dimensions Width 422 mm x Height 44 mm x Depth 230 mm (excluding protrusions)
・Accessories: 1 set of EIA 19 type 1U rack mount angle, 1 domestic exclusive power cable with locking mechanism, 1 power 3P-2P conversion plug, 1 power switch cover
*Please note that specifications and appearance are subject to change without notice for improvement.
