ROLAND / VRC-01AeroCaster

It is a distribution solution that allows you to start live distribution using a controller, the iPad application "AeroCaster LIVE", and up to 4 smartphones.

■ Live streamin system

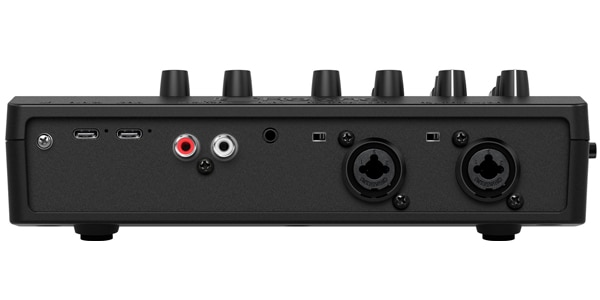

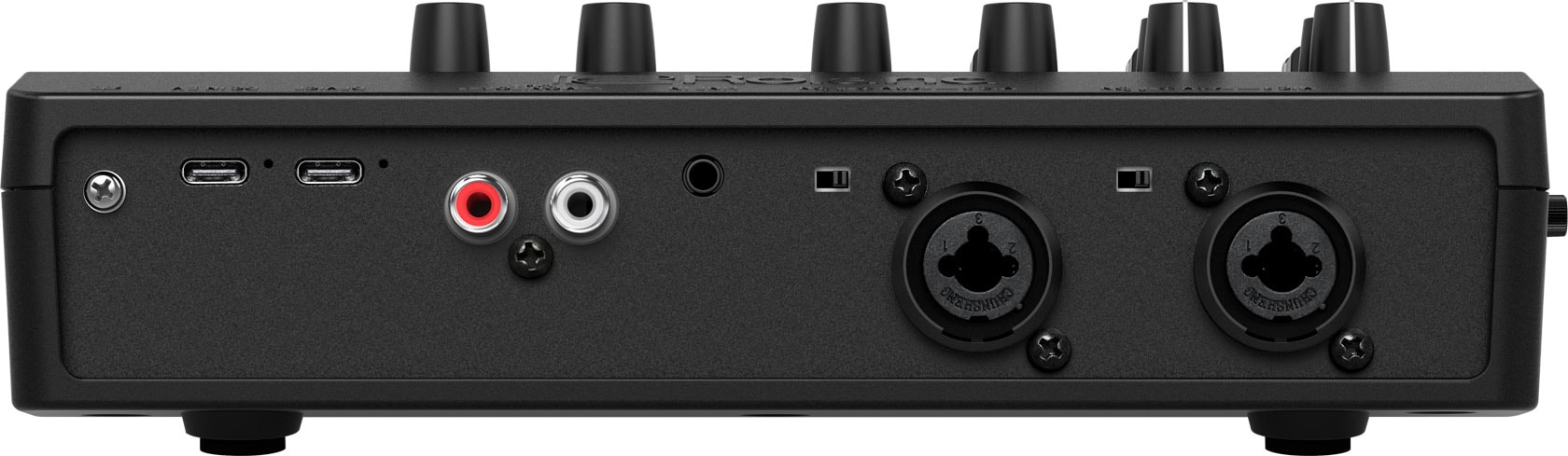

■ Connection terminal:
MIC 1, 2 terminals: Combo type (XLR, TRS standard), balanced (phantom power DC 48V, 4mA Max)
LINE IN terminal: Stereo mini type
MONITOR OUT terminal: RCA pin type

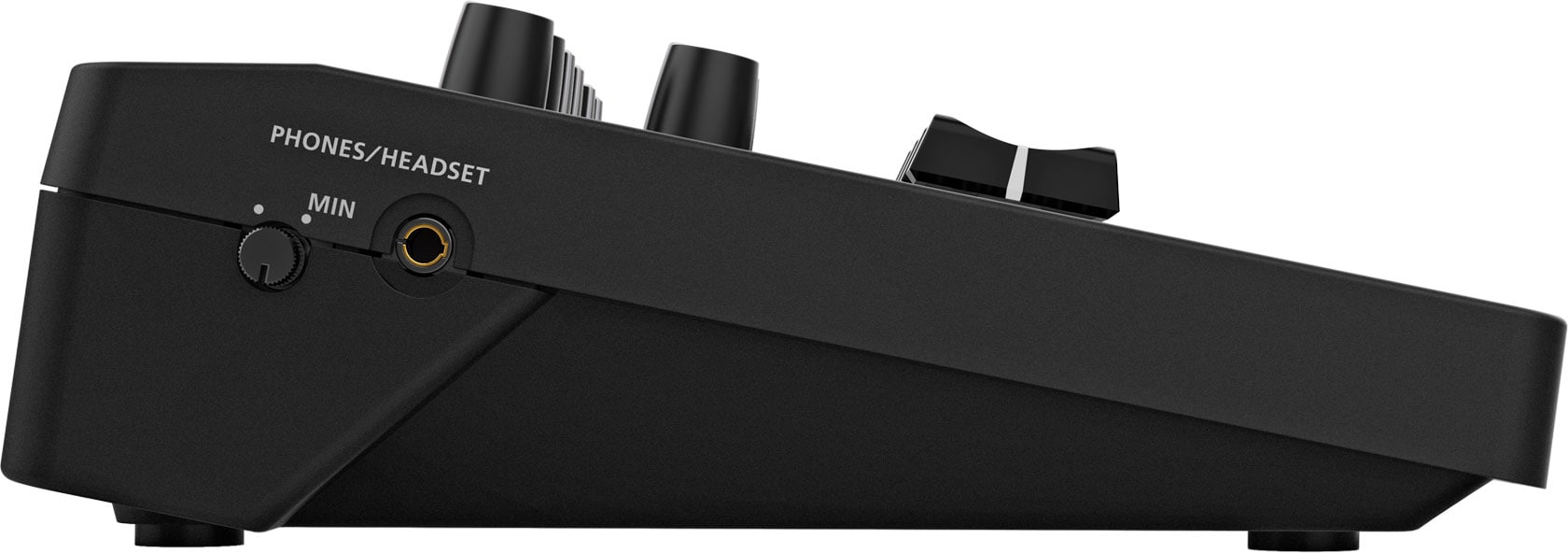

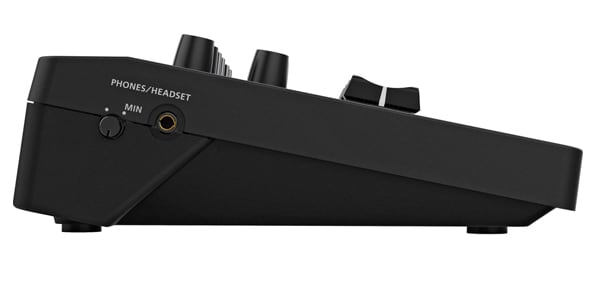

PHONES / HEADSET terminal: Stereo mini type (stereo, CTIA)
DC IN 5V terminal: USB Type-C
DEVICE terminal: USB Type-C

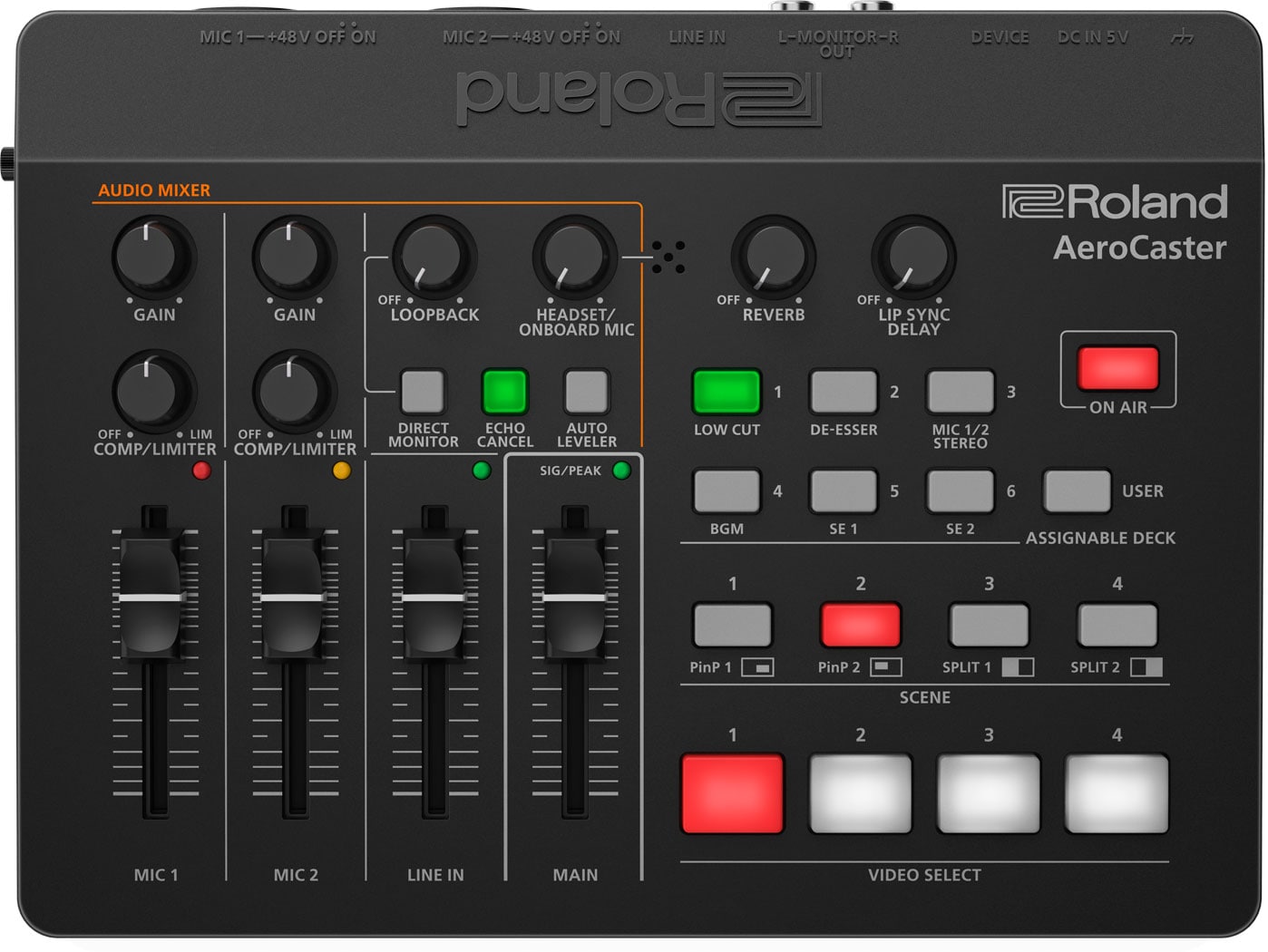

■ Controller:
MIC 1 LEVEL fader
MIC 2 LEVEL fader
LINE IN LEVEL fader
MAIN LEVEL fader
MIC 1 COMP / LIMITED knob
MIC 2 COMP / LIMITED knob
MIC 1 GAIN knob
MIC 2 GAIN knob
LOOP BACK knob
HEADSET / ONBOARD MIC knob
REVERB knob
LIP SYNC DELAY knob
PHONES / HEADSET knob
MIC 1 + 48V switch
MIC 2 + 48V switch
■ Indicator:
POWER
DEVICE
SIG / PEAK
■ Standard input level
MIC 1, 2 terminals: -60? + 4dBu (maximum input level: + 24dBu)
LINE IN terminal: -10dBu (maximum input level: + 10dBu)
■ Input impedance:
MIC IN 1 and 2 terminals: 10 kΩ (ANALOG GAIN <24 dBu)
5kΩ (ANALOG GAIN ≧ 24dBu)
LINE IN terminal: 15Kω
■ Specified output level:
MONITOR OUT terminal: -10dBu (maximum output level: 10dBu)
PHONES / HEADSET terminal: 15mW + 15mW (at 32Ω load)
■ Output impedance:
MONITOR OUT terminal: 1kΩ
■ Audio effects:
Delay, reverb, high pass filter, noise gate, deesser, compressor, limiter
■ Power supply:
USB AC adapter (commercially available)
* It is recommended to use a USB AC adapter that can supply 5V, 1.0A or more.
USB bus power
■ Current consumption: 700mA (when using AC adapter)
500mA (when operating with USB bus power)
■ Operating temperature 0? + 40 ℃
■ Accessories:
"Please read first" leaflet (including warranty card)
USB Type-C to Lightning Cable
USB Type-C to USB Type-A Cable
■ SIZE: 220 (W) x60 (H) x166 (D) mm
■ Mass (excluding cable): 600g
