ADV. (ADVANCED) / CIRCUIT ADVCIRCUIT-NVY

ADV. Circuit multipattern USB condenser microphone offers four polar patterns selected by a dial to suit different recording situations.

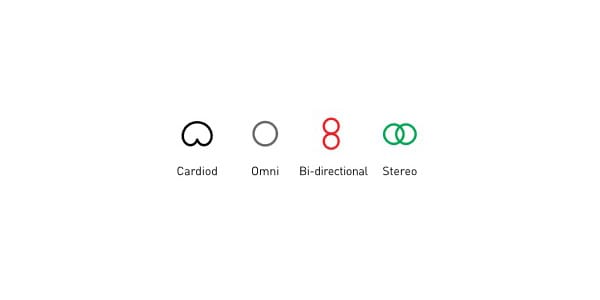

■ Four pickup patterns

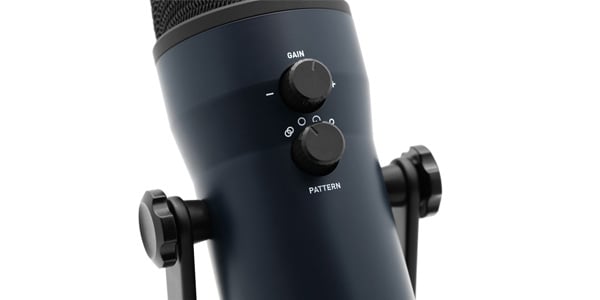

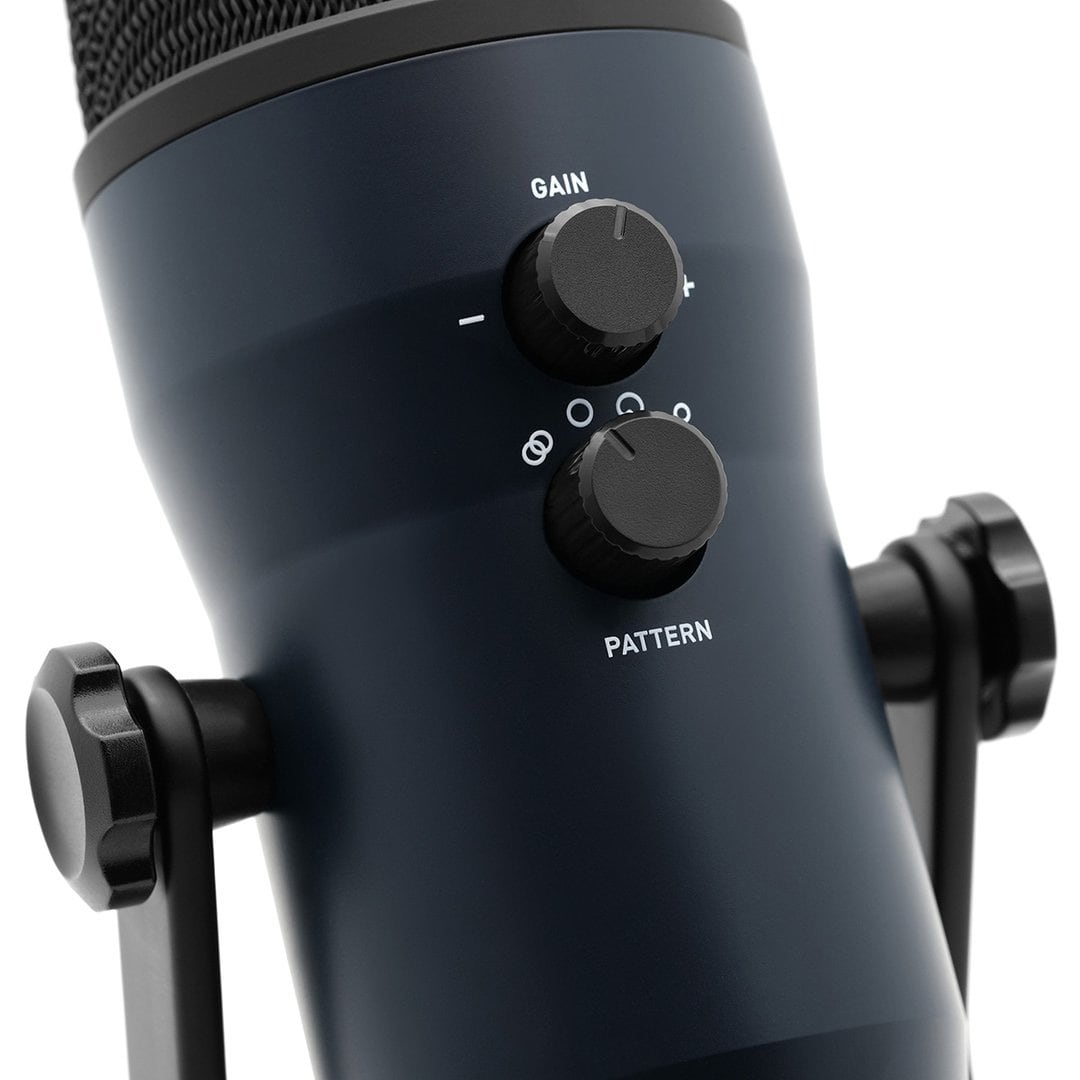

Use the dial to select one of four patterns for recording, streaming, gaming commentary and voice chat.

1. Cardioid
Applications: podcasts, lead vocals, gaming, streaming and Skype calls.
2. Omnidirectional
Applications: conference calls, field recording, events and orchestras.
3. Bidirectional
Applications: face-to-face interviews, instruments and duets.
4. Stereo
Applications: vocals, ensembles, choirs and instruments.

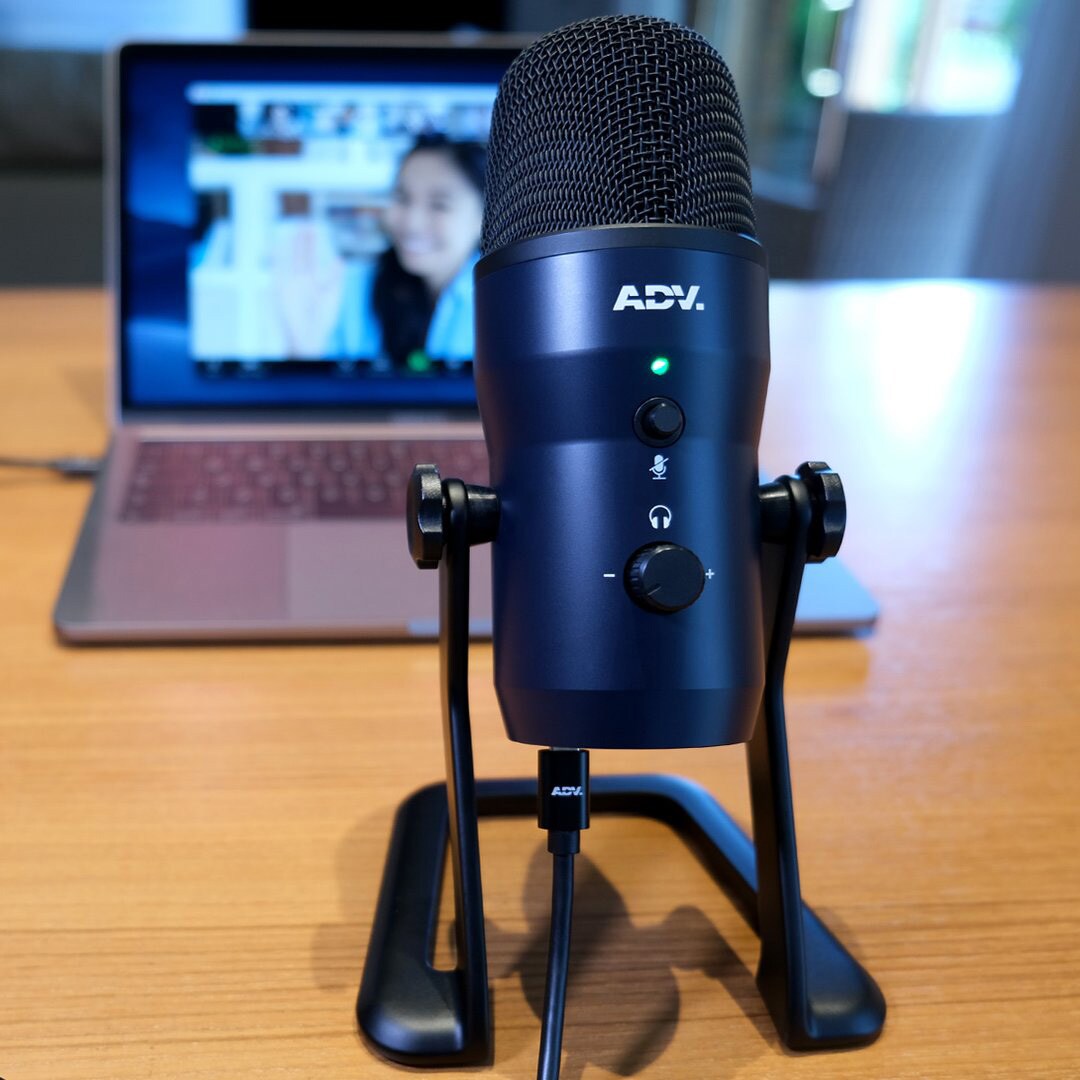

■ Plug-and-play recording
Connect the included USB cable to a PC, select the pickup pattern and set microphone level using the gain dial. No AC adapter is needed. Front-panel controls provide microphone mute and headphone volume adjustment.

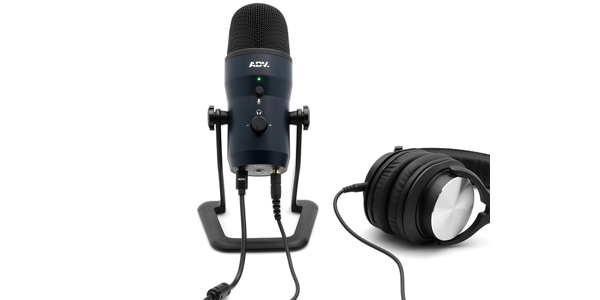

■ Direct monitoring

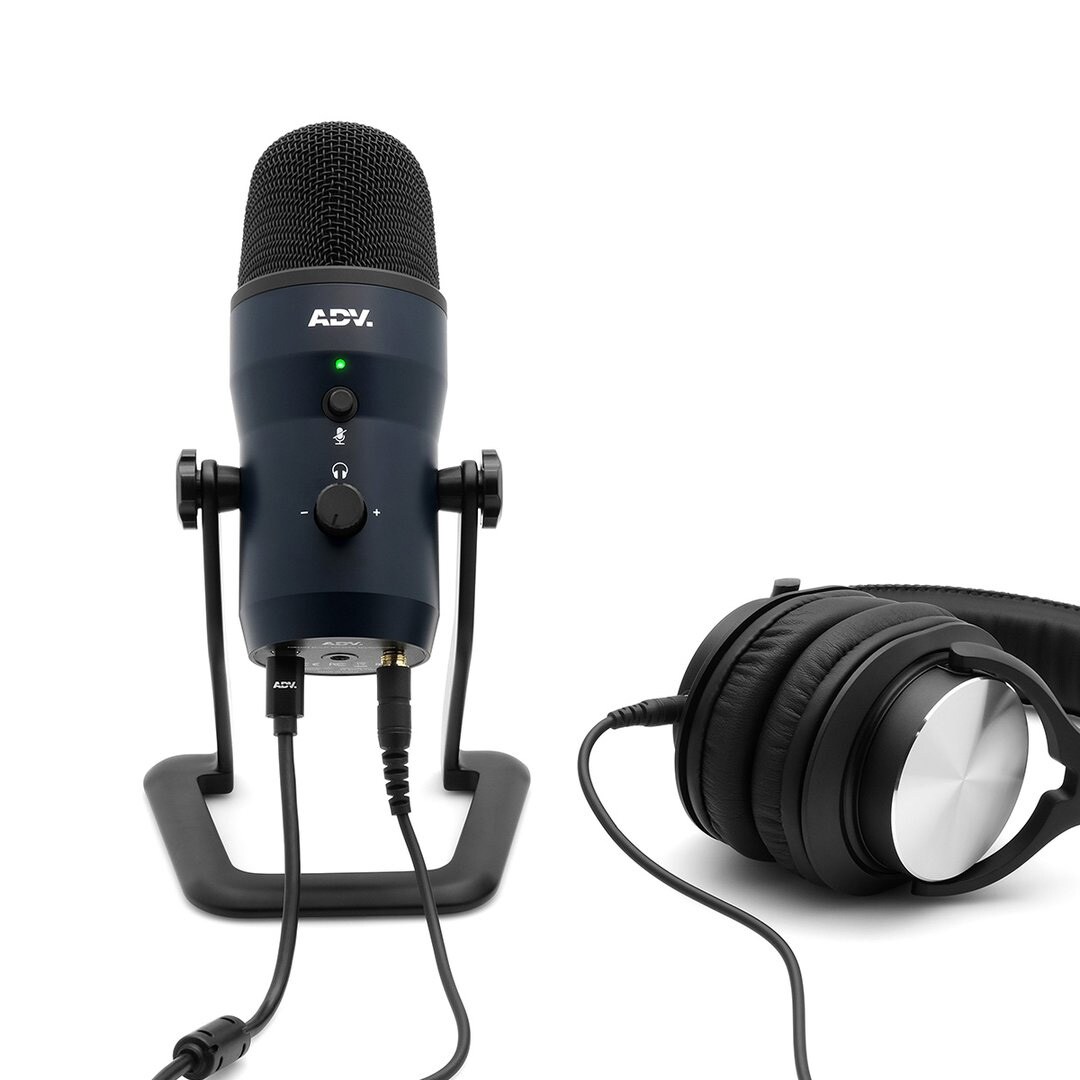

Connect headphones directly to monitor the recorded sound without latency.

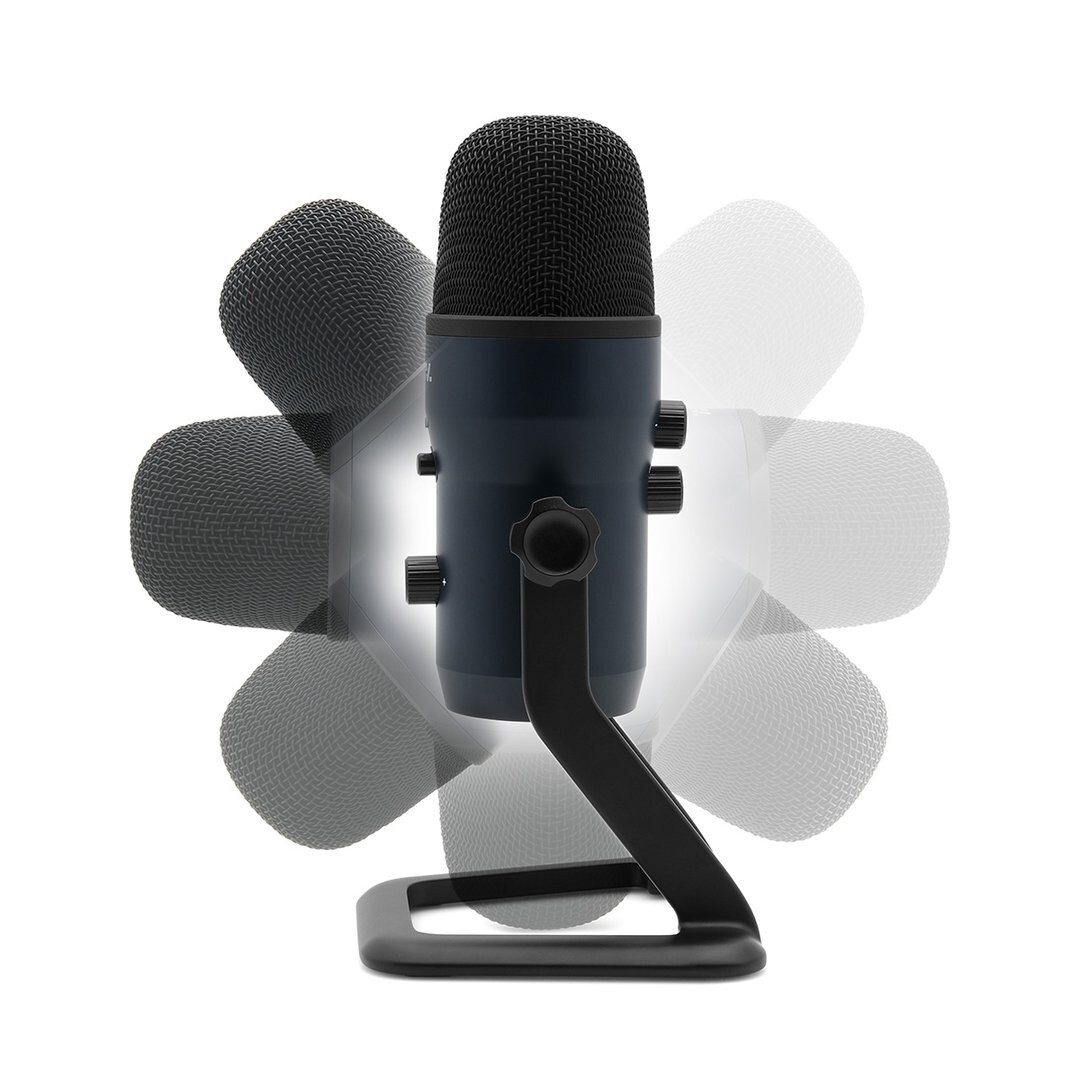

■ Rugged, flexible metal body

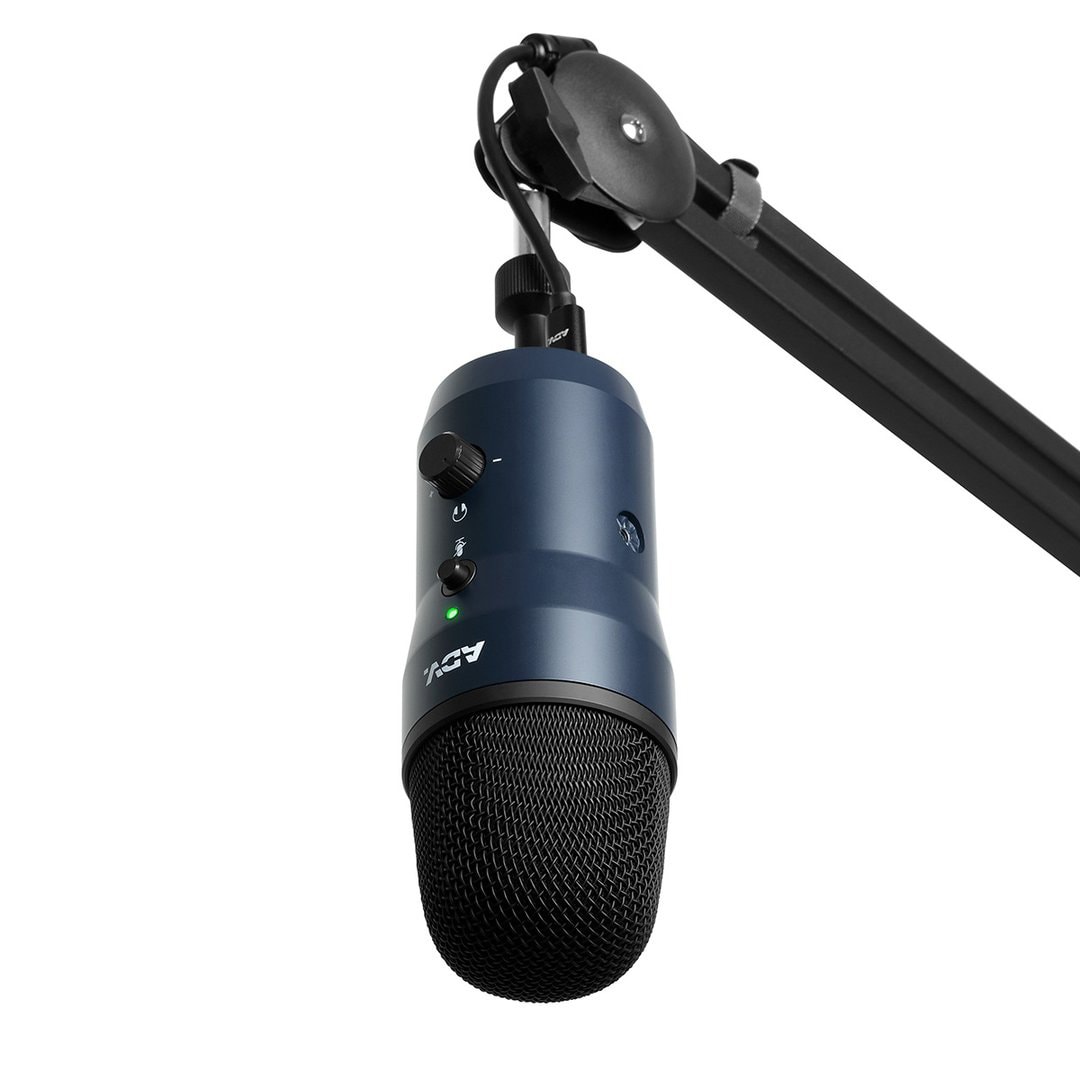

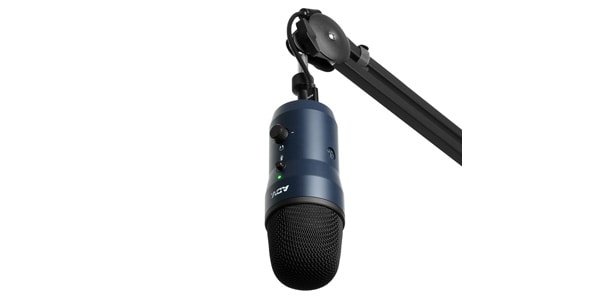

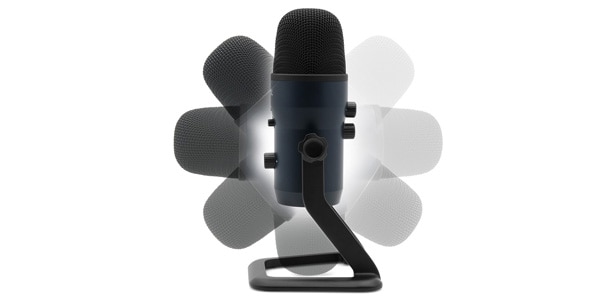

The body rotates through 360 degrees and locks at the desired angle. The included boom adapter also allows attachment to a compatible third-party boom arm.

Specifications
Microphone
■ Power consumption: 5 V, 110 mA
■ Sample rate: 48 kHz
■ Bit depth: 16-bit

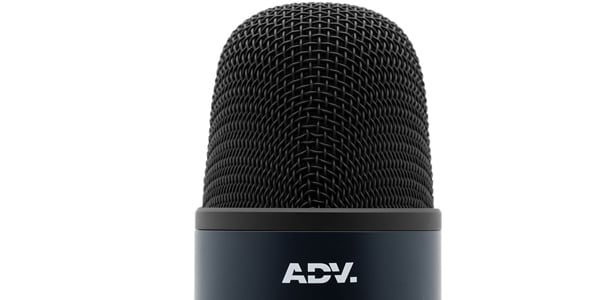

■ Capsules: three 14 mm condenser capsules
■ Pickup patterns: cardioid, omnidirectional, bidirectional and stereo

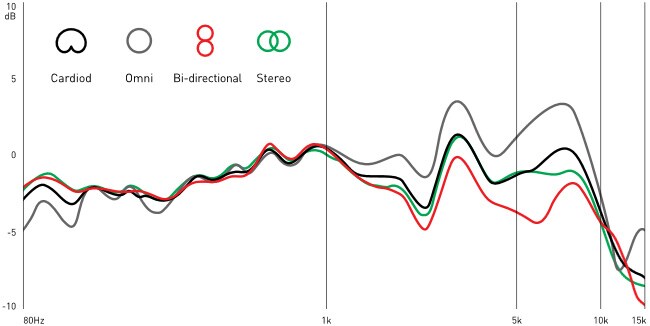

■ Frequency response: 50 Hz–18 kHz
■ Sensitivity: -45 dB ±3 dB at 1 kHz
■ Signal-to-noise ratio: -65 dB at 1 kHz
■ Maximum SPL: 110 dB at 1 kHz; 5.6 mV/Pa at 1 kHz

Headphone amplifier
■ Impedance: 16 Ω
■ Output: 125 mW
■ THD: 0.05%
■ Frequency response: 50 Hz–112 kHz
■ Signal-to-noise ratio: 75 dB

Included items
・ One Circuit microphone
・ One USB-B-to-USB-C data cable
・ One USB-B-to-USB-A data cable
・ One boom-arm adapter, 3/8-inch male to 5/8-inch female

System requirements
・ Mac: macOS 10.10 or later
・ Windows: Windows 7/8.1/10 or later
・ Android: 5.1 or later
・ iOS: iOS 11 or later; Lightning connection requires a separate adapter
