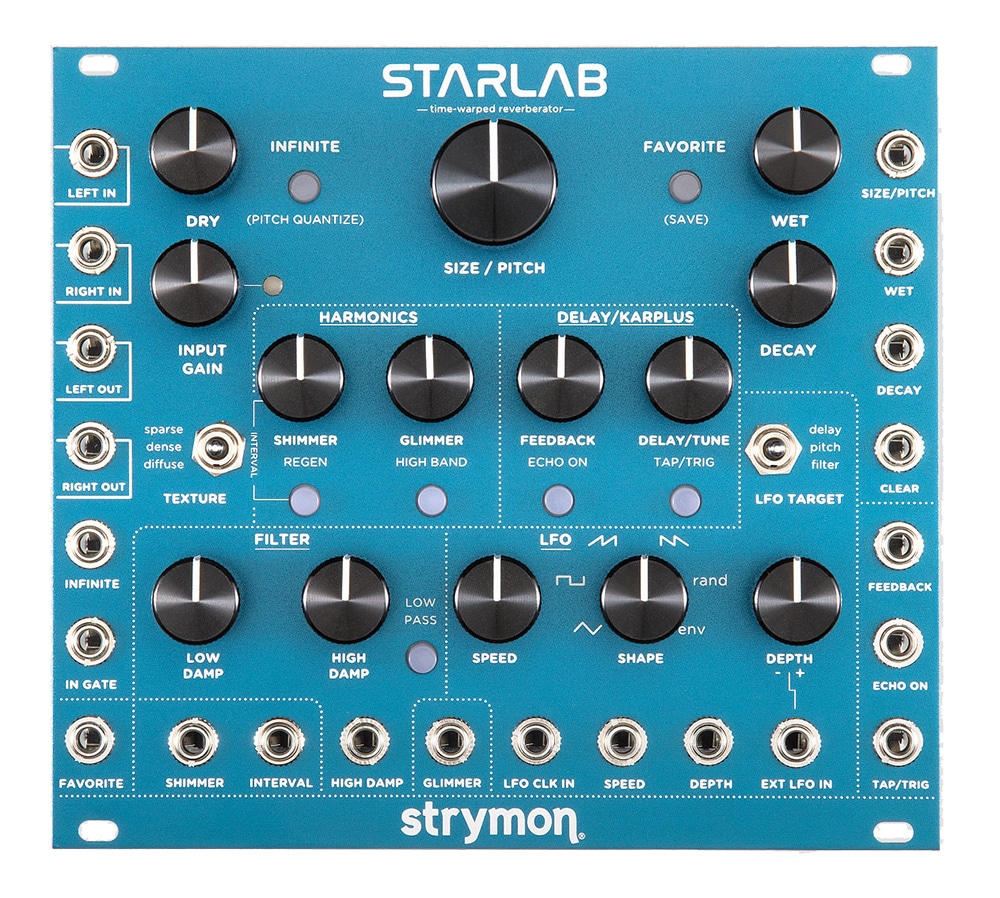

STRYMON / StarLab

Starlab brings you unprecedented full and ethereal reverb and liberates the sound of your modular rack. The gorgeous chorus, flanger and modulated delay of this unit allow you to freely transform the input signal, and the Karplus-Strong string synth allows for fresh and delicate expression, bringing you one-of-a-kind sound making.

■Rack Module
■Starlab
[Main Features]
• Three reverb effects that create a variety of ambient sounds with different textures
• DELAY/KARPLUS with feedback
• Delay can be assigned to the output, providing mod/verb and delay/verb effects.

• 4-octave Karplus-Strongs string synth mode with damping control
• Modulate delay time, reverb size, and tone levels with different waveform LFO sections
• High & low EQ in the FILTER section allows sound shaping of the reverb and DELAY/KARPLUS sections; HARMONICS section emphasizes the auditory spectrum of the reverb sound
• SHIMMER adds +/- 1 octave pitch shifting to the reverb
• GLIMMER dynamically emphasizes harmonics
• Pitch control of reverb content by adjusting space and reverb core size
• Abundant CV control parameters
• 4-pole 24dB/octave (1 pole = 6dB) variable low-pass filter

Features
Rack width: 28hp
Rack depth: 41mm, 1.61
inch
+12V rail: 210mA

-12V rail: 210mA

+5V rail: 0mA
