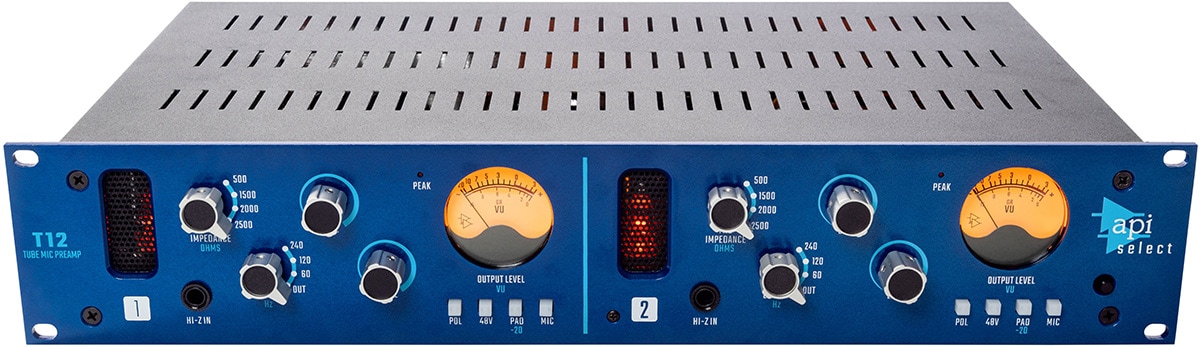

API / T12

This classic 2-channel all-tube Class A microphone preamplifier features the standard AP2516 transformer in the input stage and API's proprietary custom transformers in the output stage.

Equipped with dual triode vacuum tubes (12AT7WC and 12BH7), it produces a unique tone. This preamp boasts a warm, punchy vacuum tube sound characteristic of API.

Features

* Class A microphone preamplifier

* Proprietary AP2516 input transformer

* Audio circuit employs two triode vacuum tubes: 12AT7WC and 12BH7

* Custom API output transformer

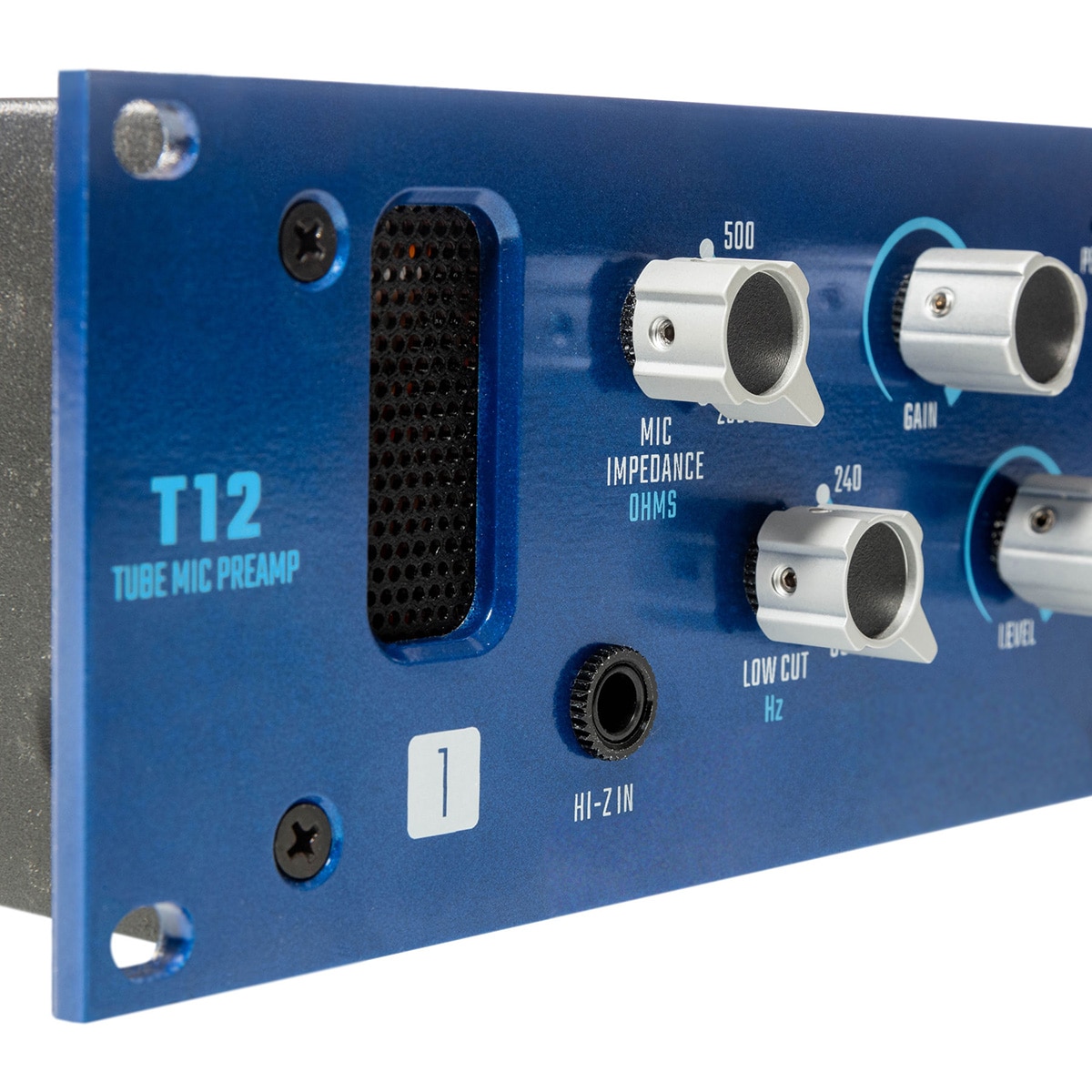

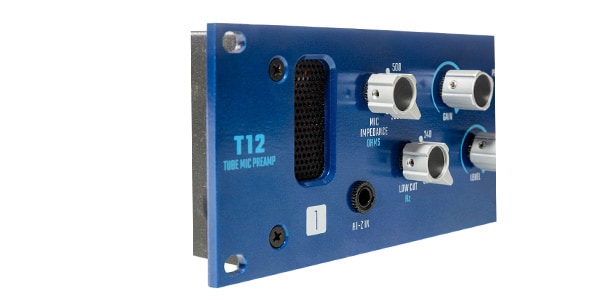

* Variable microphone input impedance

* Switchable 48-volt phantom power

* High-impedance, unbalanced 1/4-inch instrument input

* MIC/HI-Z input switch

* -20dB input pad

* 11-step preamplifier gain control

* Low-cut filter with 3 fixed frequencies

* 11-step detent output trim with 0.5dB steps

* Detent control for accurate recall and channel matching

* LED peak indicator

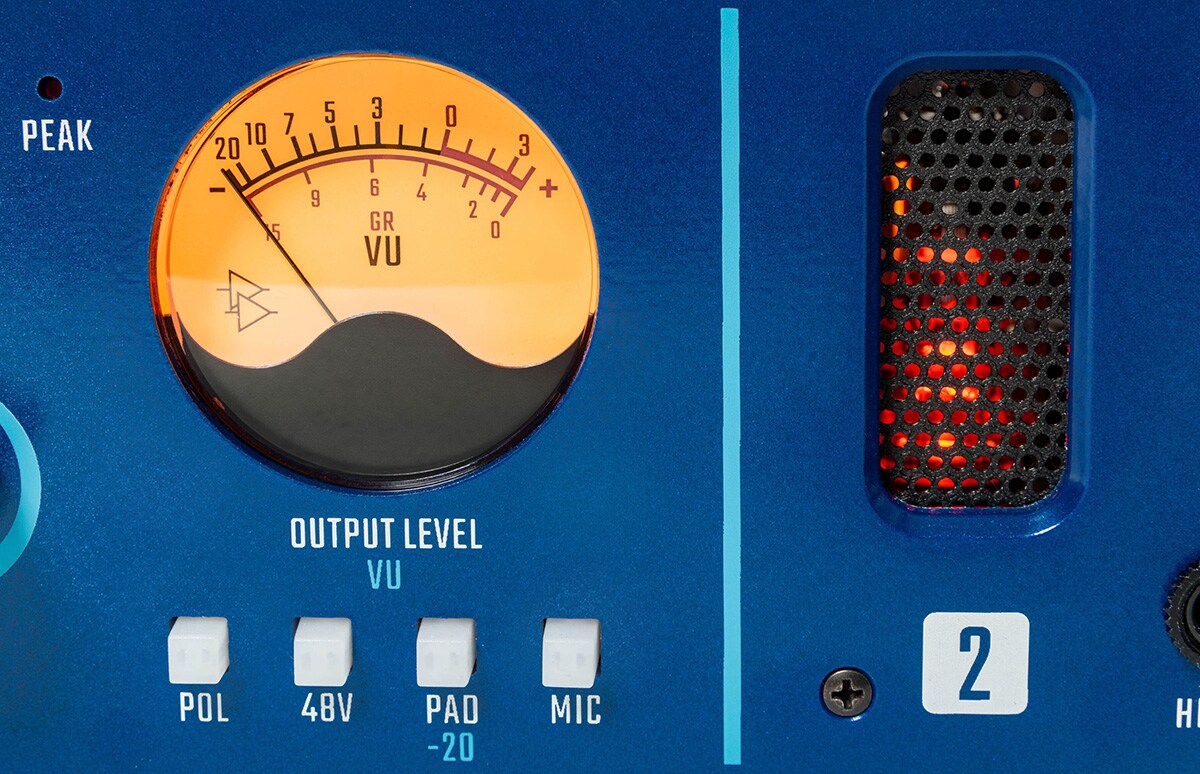

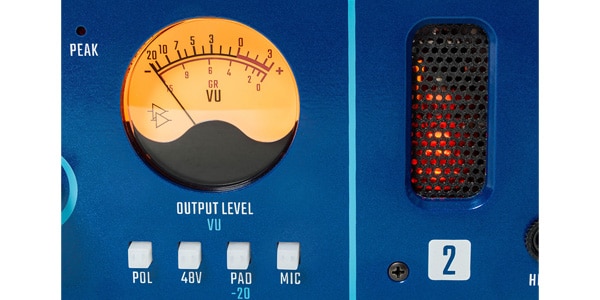

* Analog VU meter

* XLR and 1/4-inch TRS output terminals

* To ensure stable operation of the vacuum tubes, please allow at least 15 minutes after power-on before use.

*The LEVEL knob is designed to produce sound even when turned all the way down.
