Empress Effects / Zoia Euroburo

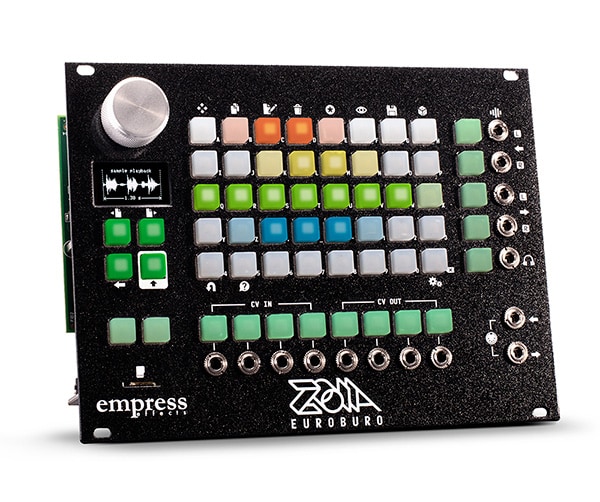

ZOIA EUROBURO is a Eurorack-compatible digital modular system that inherits all of the infinite possibilities of the ZOIA guitar pedal.

The ZOIA EUROBURO is a Eurorack-compatible digital modular system that inherits all the limitless creativity of the ZOIA guitar pedal, adding four CV inputs/outputs and a headphone output. It features over 90 modules, from audio effects and CV utilities to oscillators, envelopes, and MIDI. Like a Swiss Army knife, it fulfills all your needs in any situation.

Not only can you use the high-quality effects that only Empress Effects could deliver on a Eurorack modular system, but you can also create your own unique effects using highly flexible patching and parameter modulation.

Furthermore, it is equipped with all the modules necessary for synthesizers and sequences. With four freely assignable CV inputs/outputs, it enables flexible patching with external modular synths and devices.

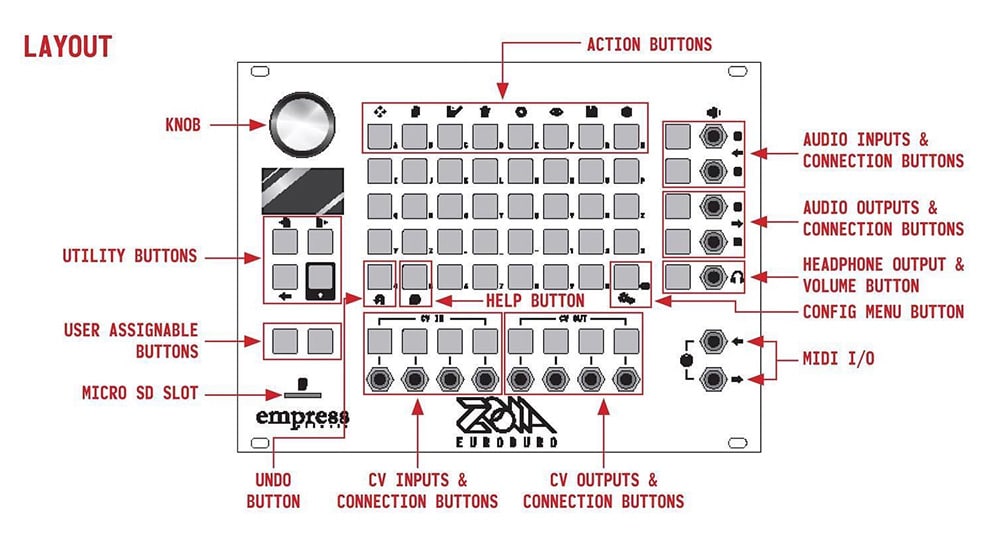

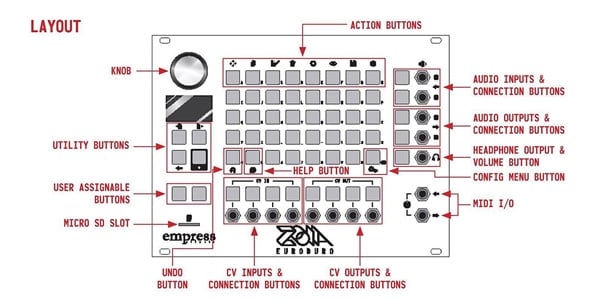

The ZOIA is designed for incredibly intuitive patch creation. Patching, module deletion, editing, and parameter changes are all done quickly with push buttons and encoders. Furthermore, separate push buttons have been added to the CV and audio I/O, improving patching convenience.

An optional standalone case is also available, allowing you to enjoy playing on a desktop in addition to Eurorack case operation.

■Features
• Four CV input/output jacks - Freely assignable CV input/output jacks. Voltage range can be set to -5V to +5V, 0V to 5V, or 0 to 10V.

• Eight independent CV UI buttons - Allows for quicker connection to CV jacks.

• Two quick access buttons - Quick access buttons whose function remains the same even when switching pages. It is recommended to assign frequently used functions. Ideal for live performances!

• MIDI 1/8"" In/Out Jacks - All ZOIA functions can be controlled via external MIDI messages. The ZOIA can also be used as a MIDI command center.
• Headphone Audio Out - Features a 3.5mm headphone output with UI button volume control.
• Compact Size - Only 28mm thick.
• Standalone Enclosure - A slim 34hp enclosure (sold separately) allows for desktop performance.

■ Build your own effects board, synthesizer, control device, and more!

Oscillators, LFOs, filters, VCAs, ADSRs, bitcrusher, envelope followers, overdrive, delay lines, EQs, loopers… these are just a handful of the included connectable modules. If you can dream it, you can create it!

■ Over 20 Ready-Made Effect Modules Included

Empress's signature high-quality effect modules (reverb, delay, chorus, phaser, compressor, overdrive, cabinet simulator, etc.) are pre-built. By arranging these effects on a grid, you can create your own virtual pedalboard.

■ Create Original Effects and Synthesizers by Combining Modules

While you can use the pre-built tremolo patch if you want to use tremolo, ZOIA allows you to build your own tremolo effect. You can create a tremolo effect by controlling the VCA module with ZOIA's LFO module to create periodic volume changes. Similarly, you can design your own style of effects and synthesizers with Empress Effects ZOIA, including delay, filter, and phaser.

■ Up to 64 Patch Types

You can create and save up to 64 patches that can be easily recalled during live performances.

■ You can exchange and share patches!

Join the ZOIA user community at patchstorage.com to try patches from ZOIA users worldwide and upload and share your own patch creations.

■ SD Card

You can load and save patches from an SD card to ZOIA, and vice versa. Firmware is continuously being improved to add new modules and features and fix bugs. You can easily update your ZOIA using the included SD card by downloading the latest firmware from empresseffects.com.

■ Intuitive Editing with an OLED Display Screen

Equipped with a high-resolution OLED display screen. Shows all ZOIA module and parameter information.

■ Dedicated MIDI Jack

Connect to various external devices using the 1/8-inch MIDI input/output jack. Control ZOIA with a MIDI keyboard or use ZOIA as the brain of your entire setup. A 1/8-inch MIDI dongle is included.

■ Built-in Help Function

A dedicated help function is built-in. Provides quick information about various ZOIA modules and options.

■ Overwhelmingly High-Quality Audio

Empress Effects boasts exceptionally high-quality audio. Internal processing is 32-bit, 24-bit/48kHz.

■ Ultimate Low-Noise Signal Path

S/N ratio >105dB, recording equipment level low-noise design.



■ Dimensions
・Module only: 34HP Eurorack size (D=28mm)
・Desktop Enclosure (sold separately): W175mm x D139mm x H 46mm (overall dimensions when installed)
■ Weight
・Module only: Approx. 500g
・Desktop Enclosure (sold separately): Approx. 1000g (overall weight when installed)
■ Current Consumption ・Eurorack case: +12V 300mA
・Desktop Enclosure (sold separately): 9-12V 300mA
Input Impedance >= 1MΩ
Output Impedance 100Ω
Frequency Response 10Hz - 23.4kHz (-3dB)
Total Harmonic Distortion: 0.22%
Dynamic Range: 105.5 dBA
■Accessories: Ribbon cable (10-pin to 16-pin for Eurorack case connection), MIDI-TRS cable x 2, mounting screws, SD card
