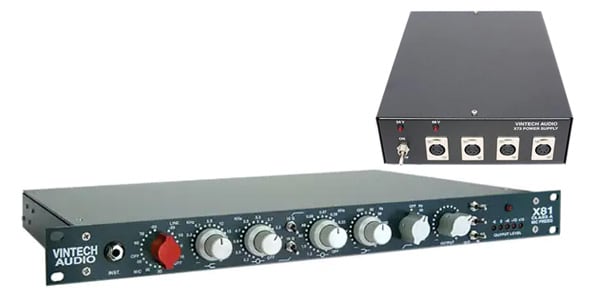

VINTECH AUDIO / X81 Class A (Power Supply Set)

This derivative model features one more EQ band than the X73. It allows for adjustment of two different midrange frequencies, offering even greater expressive capabilities.

*Dedicated power supply included

~From the manufacturer's website~

Equipped with a 4-channel HA+EQ equivalent to the vintage NEVE 1081

Features one more EQ band than Vintech-Audio's X73. Two types of midrange frequencies can be adjusted. With 10 points each for low/mid frequencies and high/mid frequencies, and 5 points each for low and high frequencies, it enables truly versatile ""magic EQ."" It excels in high-frequency expression, guiding the sound clarity to where the music should be. Low frequencies can be boosted clearly without becoming boomy. Even using it for just a moment will undoubtedly amaze you with the undeniable magic of this EQ.

The X81's appeal lies in its top-quality revival of the vintage sound of the legendary NEVE 1081, using a 'brand new' unit with even higher sound quality.


■Product Features

Low-Cut Filter: 50, 80, 160, 220Hz

Phase Reverse

EQ Bypass Switch

Output Level Meter (-6 to +18dB)

Low-EQ: 33, 56, 100, 180, 300Hz (±16dB)

Input: Hi-Z (TRS Phone) / LINE (XLR) / MICROPHONE (XLR)

Output: XLR / TRS Phone

Input Level: -20dB to -80dB (Microphone), +10dB to -20dB (Line), 5dB Step Gain

Hi-EQ: 3.3, 4.7, 6.8, 10, 15kHz (±16dB)

Hi-Mid-EQ 8.2, 6.8, 5.6, 4.7, 3.9, 3.3, 2.7, 2.2, 1.8, 1.5kHz (±16dB)

Low-Mid-EQ 1.2, 1.0, 0.82, 0.68, 0.56, 0.47, 0.39, 0.33, 0.27, 0.22kHz (±16dB)

Hi-Q 2-type Q switching

Output Volume

480W x 315D x 43H, 5.6kg

Superior transformer / ELMA rotary switch / Class A circuit
