HAYAKUMO / FORENO STEREO VU METER

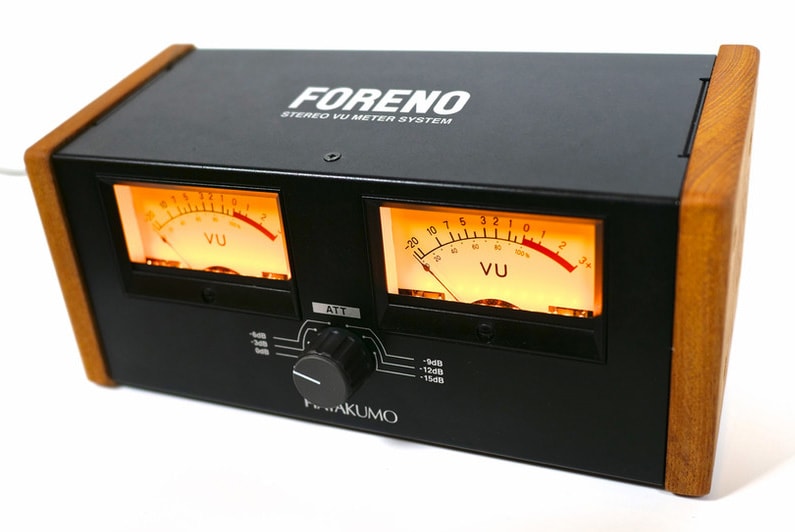

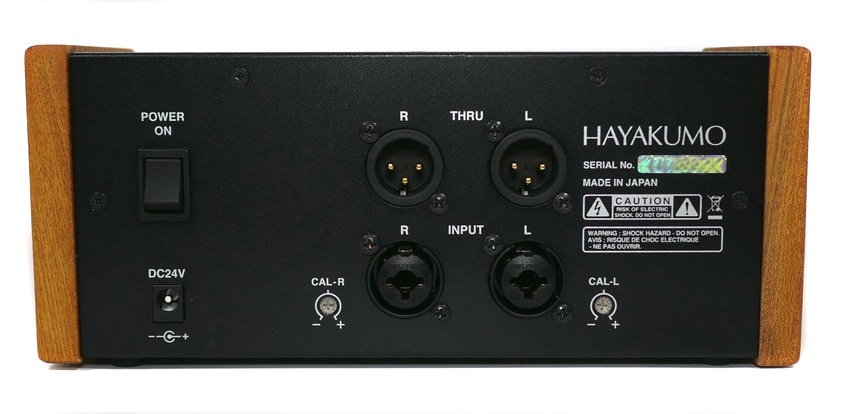

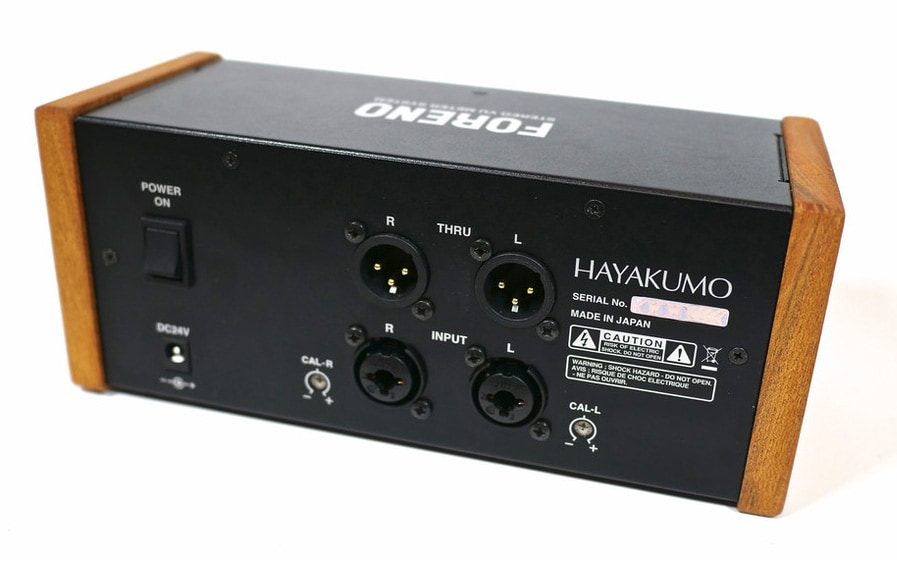

FORENO STEREO VU METER is a VU meter manufactured by HAYAKUMO. Visibility is improved by tilting the front panel by 10 degrees. It is a compact size with a width of 221 mm. It uses a highly accurate and reliable meter manufactured by Fuso Measuring Instruments Co., Ltd., which is manufactured based on NHK standard BTS5703 or JIS C1504. LED is used for panel lighting to ensure visibility. Independent left and right calibration is provided on the back side for fine level adjustment.

VU Meter High-precision, high-reliability, high-spec VU meter system made in Japan "FORENO" is a VU meter system that inherits the identity of "FORMA" while adopting a higher-spec VU meter and evolving in terms of functionality, making it an immediate asset in any field. The VU meter is manufactured by Fuso Measuring Instruments, a company that was founded 87 years ago, and among the company's lineup, it uses high-precision, high-reliability meters that are strictly manufactured based on NHK standards BTS5703 or JIS C1504. LED lighting is used to ensure high visibility. The top panel is also equipped with a 5-step switchable attenuator, allowing for flexible use in any environment without complicated settings. Of course, it is made in Japan for your peace of mind. ■Product Features ・Design By tilting the front panel by 10 degrees, visibility is improved compared to general VU meters. It is a compact size of 221mm wide. The wood panel on the side and the RITEL knob enhance the texture.・VU meter Uses a highly accurate, highly reliable meter manufactured by Fuso Measuring Instruments, manufactured based on NHK standard BTS5703 or JIS C1504. LED lighting is used to ensure high visibility. ・ATT (attenuator) It is possible to switch the attenuation level in 5 steps of 3 dB increments relative to the input signal level. ・THRU OUT terminal The through-out minimizes deterioration of sound quality and can be used in any studio environment. ・Independent left and right calibration The rear side provides independent left and right calibration for fine-tuning levels. ・Made In Japan Reliable Made in Japan quality. ■Specifications Accessories: Power adapter, instruction manual, warranty card VU meter: Compliant with BTS5703 (JIS C1504) standard, impedance 3.9kΩ (±200Ω), time constant 0.3sec ±10%, frequency range 30Hz to 15000Hz, LED lamp illuminated (DC12V) INPUT terminal: Equipped with a CBO terminal for both XLR (female) and TRS phone plugs THROUGH OUT terminal: XLR (male) type Input impedance: 47kΩ balanced input Nominal input level: +4dBu (1.228V) Maximum input level: +24dBu (12.283V) Input level fine adjustment: Approximately +3dB/-∞ from the nominal input level, equipped with semi-fixed VR (Cal.) for Lch and Rch separately Power supply: Input AC100V to 240V (0.58Amax), output DC24V (1A max) adapter used. (DC output cable length = approx. 1.5m) Power consumption: Maximum approx. 3.5VA External dimensions: Width 221 x Height 93 x Depth 105mm Weight: Main unit = approx. 1370g, Power adapter = approx. 130g Specifications are subject to change without notice. Please be forewarned. *The dimensions of the meter (display) section are 60mm x 27mm. *As this is basically a made-to-order product, we cannot accept cancellations after an order has been placed or returns due to customer convenience. *Please contact us in advance to inquire about delivery lead times.
