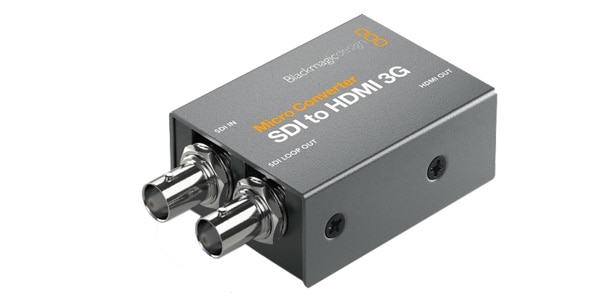

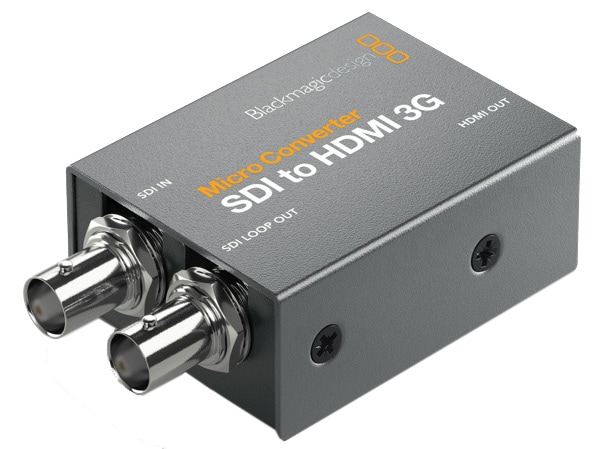

Blackmagic Design / CONVCMIC/SH03G/WPSU

[Official Japanese product] This model comes with a power supply and is equipped with a 17-point 3D LUT. It supports DCI formats and film rates including 1080p24, 1080p47.95, and 1080p48.

■ Converter with power supply (SDI → HDMI)
■ Supported multi-rates:
SD/HD auto detection
■ Update, converter (SDI → HDMI)

Connection
■ SDI video input:
SD/HD/3G-SDI x1
■ SDI video output:
SDI loop output x1
■ HDMI output:
HDMI Type A output
■ Supported multi-rates:
SD/HD auto detection
■ Update, configuration, power supply:
USB Type C

Format
■ SDI video format:
525i59.94 NTSC, 625i50 PAL
■HD Video Formats:
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50,
1080p59.94,1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
■SDI Standards:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
■SDI Video Rate:
SDI video connection switchable between SD, 720p, 1080i, 1080p and DCI HD.
■SDI color accuracy:
4:2:2
■SDI color space:
YUV
■SDI auto switching:
Automatically detects SD/HD/3G-SDI Level A or Level B
■HDMI video formats:
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
■HDMI color accuracy:
4:2:2. 17-point LUT can be loaded via software utility. Can be used to calibrate and improve monitor color.

■HDMI color space: YUV

■Settings control

Via macOS? and Windows? software utilities connected via USB

■Software

Upgrade internal software via USB

■Includes +5V international power supply (international socket adapter)

■SIZE: 79.4(W)x24.8(H)x45.8(D)　150g
