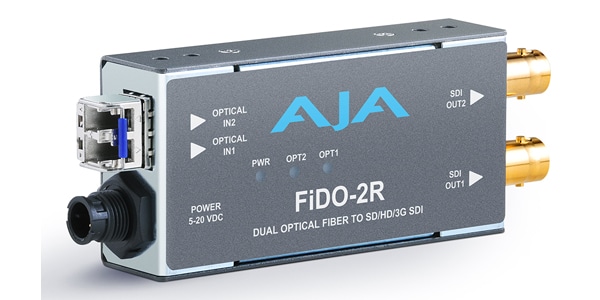

2 channel single mode LC Fiber to 3G-SDI receiver with cable transmission lengths up to 10km.
■2-channel single-mode LC fiber to 3G-SDI receiver
■Video format:
100 Mbps to 3 Gbps (auto-sensing)
■Digital video input:
2-channel independent single-mode LC fiber output, SMPTE-297
Nominal wavelength: 1260 - 1620 nm
Optical sensitivity: -18 dBm (min)
Overload power: -3 dBm (min)
■Digital video output:
2-channel independent 3G-SDI output, SMPTE-259/292/424
■Reclocking:
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - auto-select
Other rates are passed through and not reclocked
■SIZE: 117(D) x21.6(H)x43.5(D)mm
