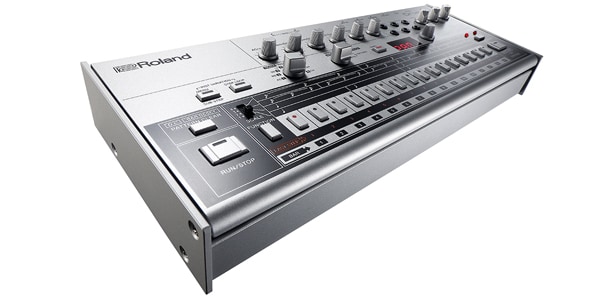

ROLAND / TR-06 SOUND MODULE

Reproduces the legendary TR-606 and incorporates modern functions.

■ Main specifications
User memory pattern: 128 (16 patterns x 8 banks)
Track: 8 steps 32 steps Sequencer function Step loop
Substep
Fulham
Intro / Fill-in
Probability
Substep probability
Master probability sound source BD: BASS DRUM *
SD: SNARE DRUM *
LT: LOW TOM *
HT: HI TOM *
CY: CYMBAL *
OH: OPEN HI HAT
CH: CLOSED HI HAT
* Effect compressor including variation sound
Delay effect: DELAY, PAN DELAY, TAPE-ECHO, REVERB, FLANGER, SIDE BAND FILTER
Drive effect: SATURATOR, BIT CRUSHER, DISTORTION, LPF / HPF controller VOLUME knob
RUN / STOP button
PATTERN CLEAR button
MENU / SUB STEP button
STEP LOOP button
FUNCTION button
TEMPO button
STEP button (1-16)
PATTERN GROUP button / indicator
TAP / STEP RESET button
SCALE selection switch
INSTRUMENT selection knob
MODE selection knob
VALUE knob
Instrument Level knob (AC, BD, SD, LT / HT, CY, OH / CH)
Effect knob (DRIVE, TIME, DEPTH)

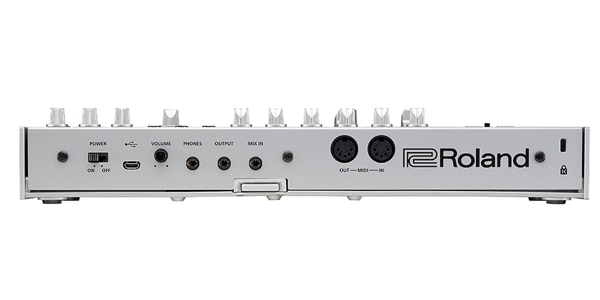

Display 7-segment 4-digit (LED) connection terminal TRIGGER IN terminal: Mono mini type
TRIGGER OUT terminal x 5 (AC, BD, SD, LT, HT): Mono mini type
PHONES terminal: Stereo mini type
OUTPUT terminal: Stereo mini type
MIX IN terminal: Stereo mini type
MIDI (IN, OUT) terminal

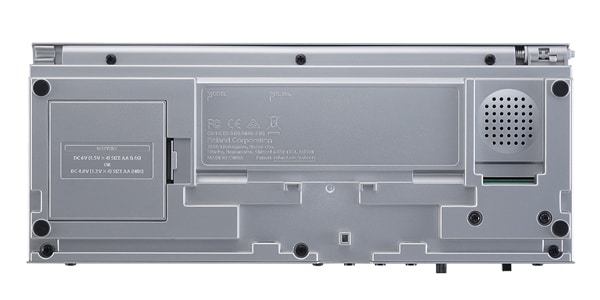

USB terminal: USB micro B type (audio, MIDI compatible) power supply rechargeable nickel metal hydride battery (AA type) x 4
Alkaline battery (AA) x 4
USB bus power consumption Current consumption 500mA (USB bus power) Battery life during continuous use Nickel-metal hydride battery (AA): Approximately 5 hours
* Varies depending on battery specifications, capacity, and usage conditions.
Accessories Boutique Dock: DK-01
instruction manual
DK-01 Instruction Manual
Safety Precautions
Alkaline battery (AA) x 4
Dimensions (including Boutique dock) Width (W) 308mm Depth (D) 130mm Height (H) 52mm
Weight (including battery and Boutique dock) 1.2 kg
* Product specifications and design are subject to change without notice.
