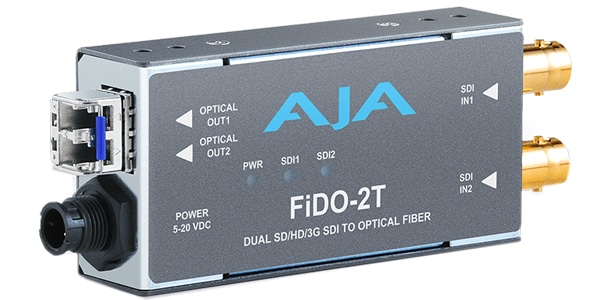

AJA Video Systems / FiDO-2T

2ch SD/HD/3G-SDI to Single Mode LC Fiber Converter

■2-channel 3G-SDI to single mode LC fiber transmitter
■Reclocking:
Automatic detection and reclocking of data rates of 270Mb, 1.5Gb, 3Gb SDI
■Input:
2-channel independent 3G-SDI
■Output:
2-channel single mode LC fiber
■Bypass mode:
50 Mbps to 3Gbps - auto bypass for non-SMPTE rates
■Nominal wavelength:
1310 nm
■Optical output: -5dBm (min), 0dBm (max)
■Attenuation ratio: 7.5dB (min)
■Power: Max 3W
