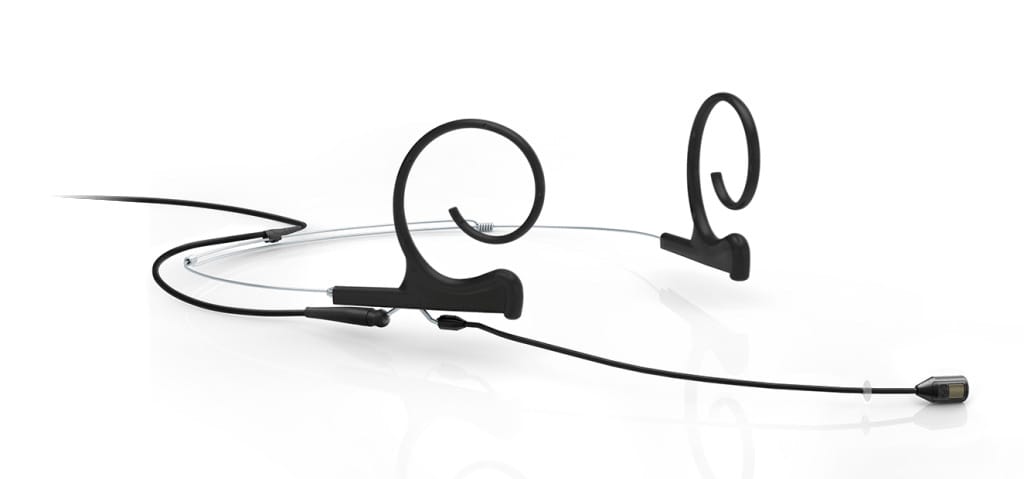

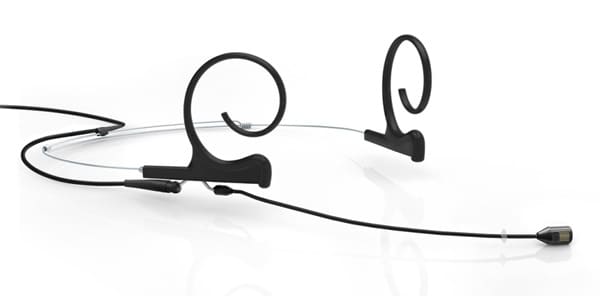

DPA / 4288-DC-F-B00-LH

Condenser headset mic, dual ear, unidirectional, black, long boom

■ Headset microphone
■ Directivity: Unidirectional
■ Frequency characteristics (±2dB, 2-3cm): 100Hz-20kHz (4-6dB soft boost @15kHz)
■ Sensitivity (±3dB@1kHz): -44dB re 1V/Pa
■ Equivalent noise level (A weight): 26dB SPL
■ Total harmonic distortion (THD): 1% or less (137dB SPL peak)
■ Dynamic range: 111dB
■ Maximum sound pressure level: 144dB
■ Output impedance: MicroDot terminal: 30-40Ω, DAD6001-BC: 100Ω
■ Cable length: 1.3m
■ Cable stretchable distance: Maximum 300m (when using DAD6001-BC)
■ Power supply: DC5V-50V (when using wireless conversion adapter), phantom DC48V±4V (when using DAD6001-BC)
■ Power consumption: 1.5mA (microphone), 3.5mA (DAD6001-BC)
■ Terminal: MicroDot
■ Boom length: 100mm
■ Dimensions and mass: φ5×10mm (microphone part), 11g
■ Accessories:
Windscreen x 4 *One is installed at the time of shipment
Pop screen x 1 *Installed at the time of shipment
Cable clip x 1 *Installed at the time of shipment
Identification ring (5 colors) x 1 each
Carrying pouch
