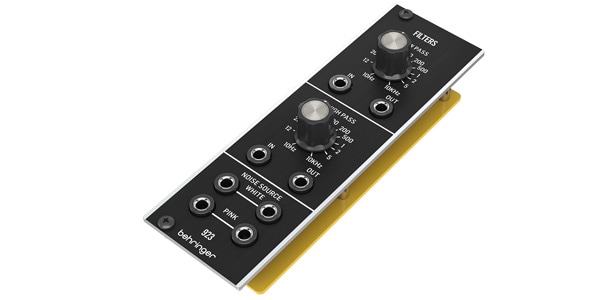

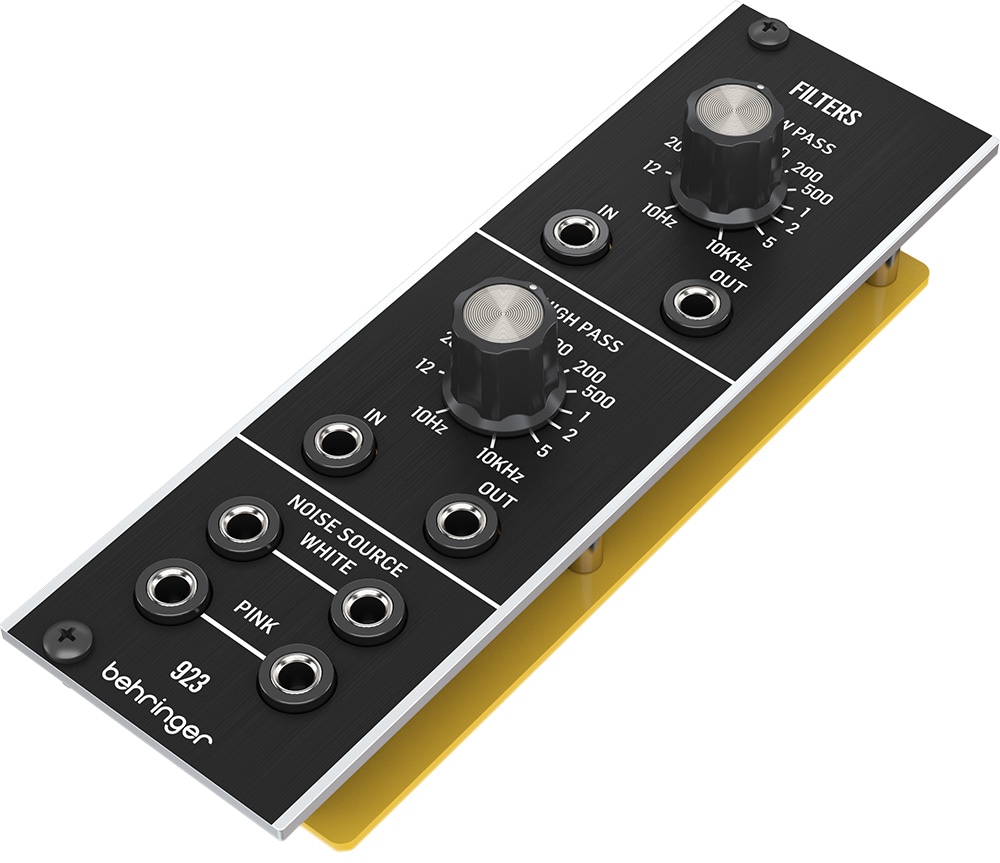

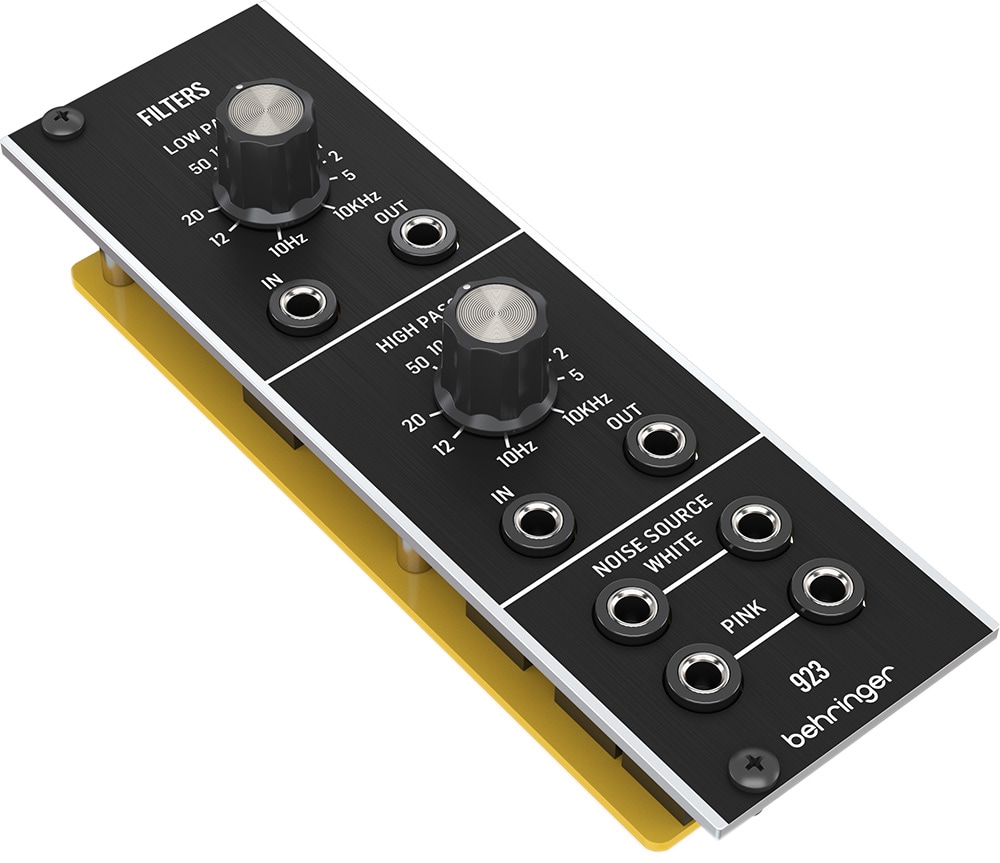

BEHRINGER / 923 FILTERS

Faithfully reproduces the vintage sounds of the 1970s. Features individual low-pass and high-pass filters with dedicated frequency cutoff controls. Noise generator allows the module to create percussive sounds such as groovy drum beats.

FEATURES

923 dual filter module with vintage 70's sound
Reproduction of the “Modular 35 & 15” series circuit
Separate low-pass and high-pass filters with dedicated frequency cutoff controls
Each filter has independent audio inputs and outputs
Noise source outputs white and pink noise via independent dual outputs

Specifications

◆Analog synthesizer module

Low-pass: 1 rotary knob, 10 Hz to 10 kHz frequency range
High-pass: 1 rotary knob, 10 Hz to 10 kHz freq. range
Low-pass in/out: 2 x 3.5 mm jacks, DC coupled
Impedance Input/Output: 22kΩ/470Ω, unbalanced
Maximum input/output level: 19 dBu
Filter Slope: 6 dB / oct.
Noise: -100 dBu, 22 Hz-22 kHz
High Pass In/Out: 2 x 3.5 mm jacks, DC coupled
Impedance Input/Output: 22 kΩ / 470Ω, unbalanced
Maximum Input/Output Level: 19 dBu
Filter Slope: 6 dB / oct.
Noise: -90 dBu, 22 Hz -22 kHz
Noise Source, White: 2 x 3.5 mm jacks, AC coupled
Impedance: 700 ohms unbalanced
Output Level: 0 dBu, 22 Hz-22 kHz
Noise Source, Pink: 2 x 3.5 mm jacks, AC coupled
Impedance: 700 Ω unbalanced
Output Level: 4 dBu, 22 Hz-22 kHz
Rack Units: 8 HP
Power Supply: Eurorack
Current: 35 mA (+12 V), 45 mA (-12 V)
