j5 create / JCD382

メーカーサイト商品ページ

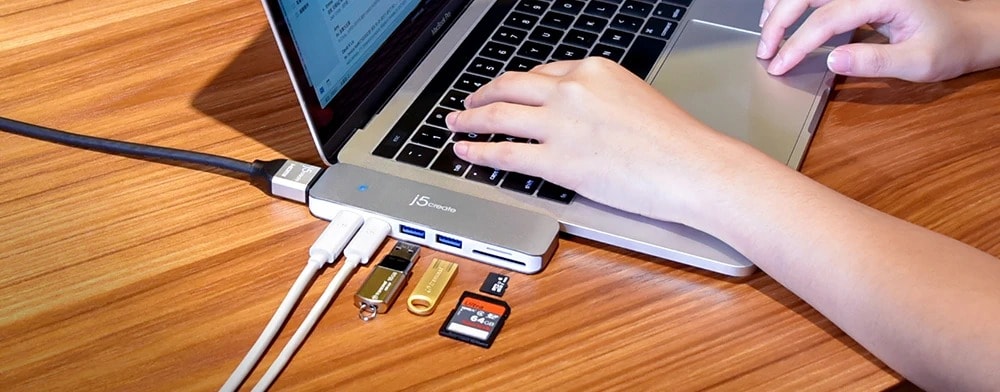

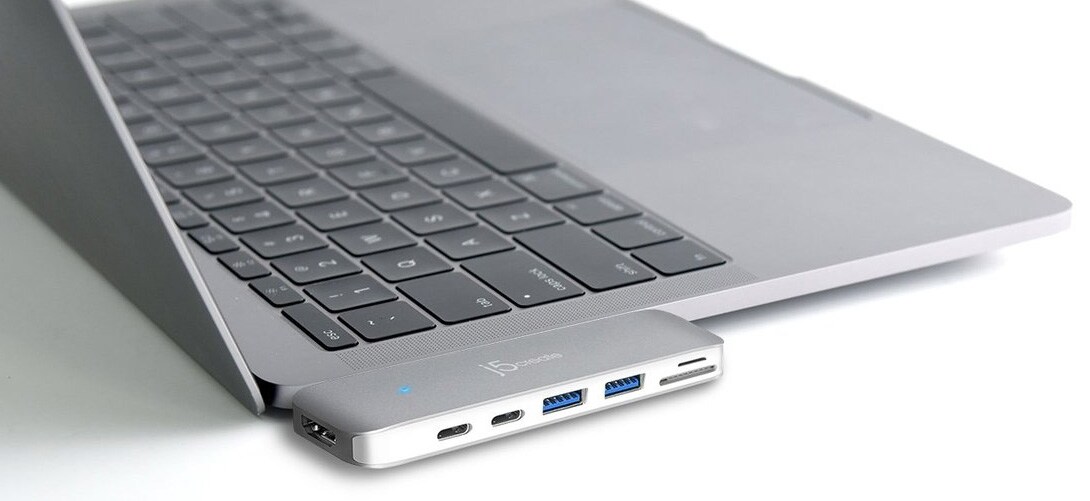

A multi-adapter exclusively for MacBook Pro and MacBook Air. By directly connecting to your computer, you can expand Thunderbolt 3 and USB-C while also adding a USB hub, HDMI, and MicroSD/SD card reader. Excellent for connecting USB peripherals such as mice.

■Multi-dock for MacBook Pro/Air (MacBook Pro 2016/2017/2018/2019, Macbook Air 2018)

■Product Features

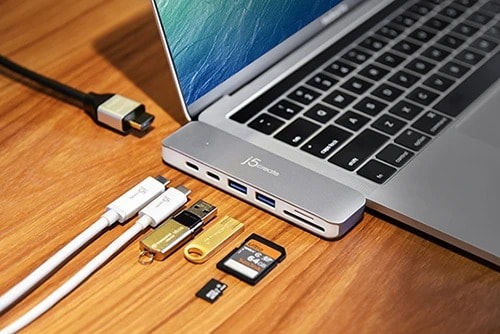

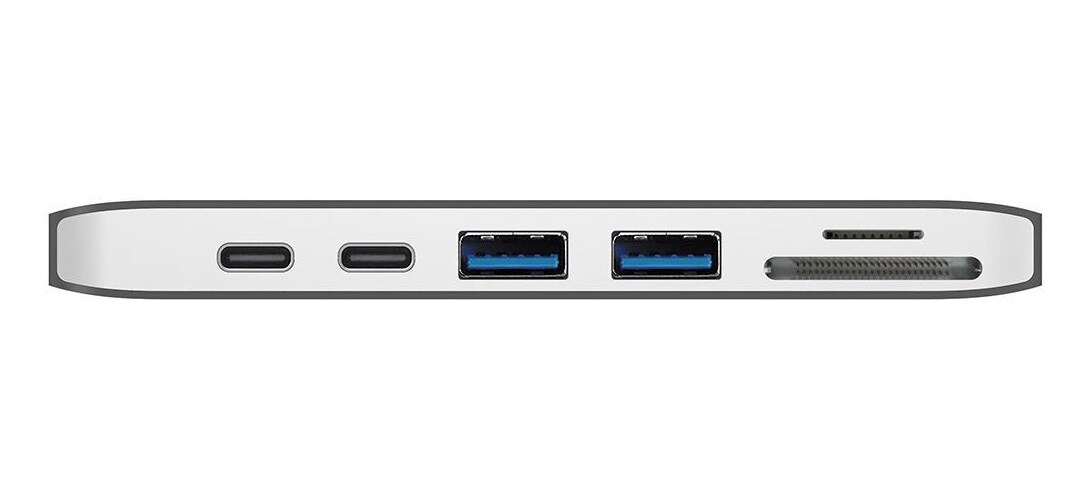

Expands MacBook Pro's two USB Type-C ports to seven ports (Thunderbolt 3, USB 3.1 Gen 1 Type-C, HDMI, USB 3.1 Gen 1 Type A x 2, SD, microSD)

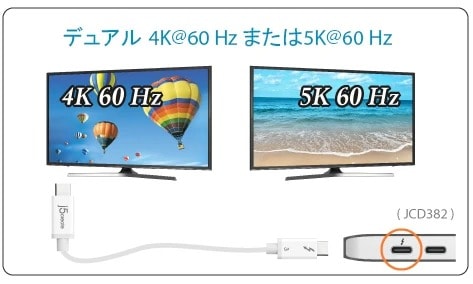

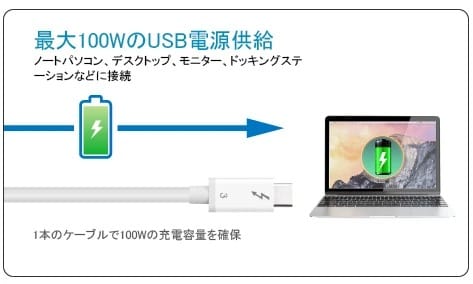

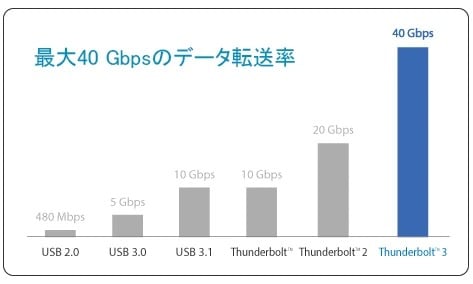

Thunderbolt 3 port: Supports up to 5K @ 60 Hz or dual 4K @ 60 Hz display, 40 Gbps data transfer, and up to 100W power supply

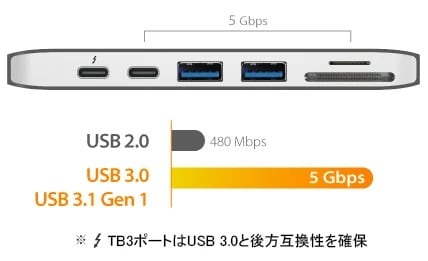

Supports USB 3.1 Gen 1 Type-C 5 Gbps data transfer

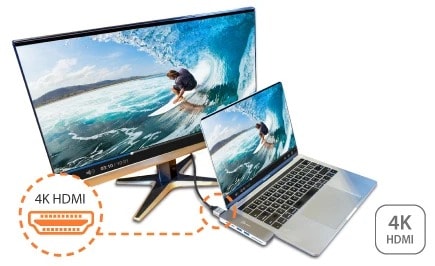

HDMI port output up to 4K @ 30 Hz
USB 3.0 Type A 5 Gbps data transfer (backwards compatible with USB 2.0)
Up to 2 USB 3.0 SD/microSD slots Can add up to 1TB of memory card
Plug and play

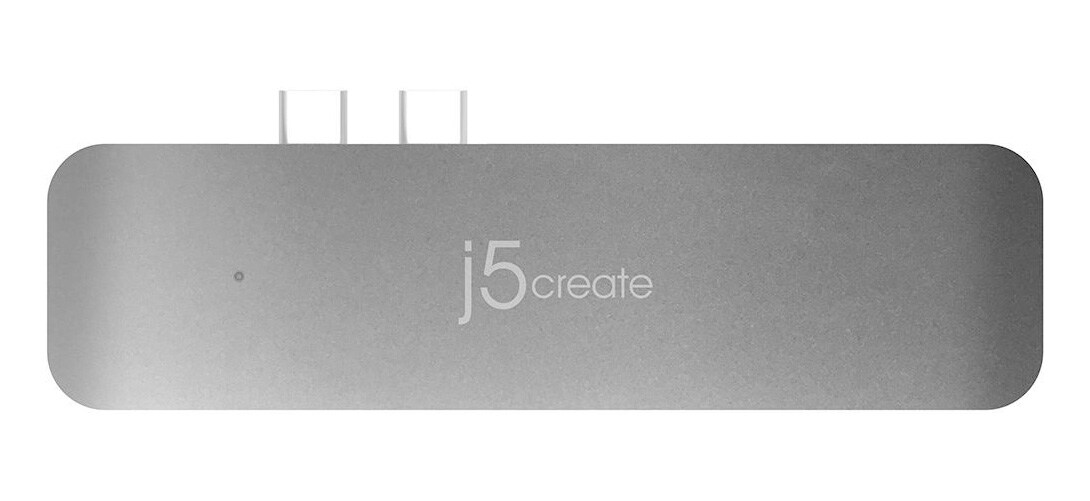

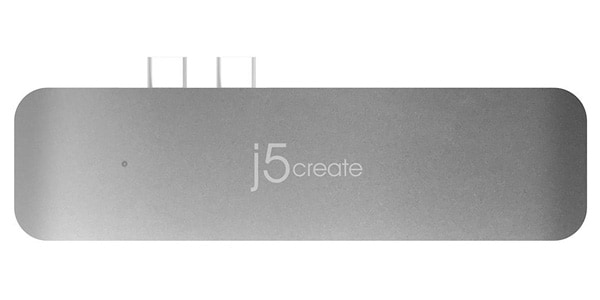

Luxurious metal housing with excellent heat dissipation

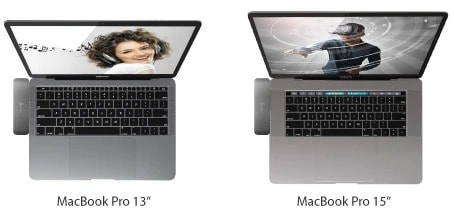

Ideal for 13/15-inch 2016/2017 MacBook Pro (2016/2017/2018/2019), also compatible with 13-inch 2018 MacBook Air!

■Product Specifications

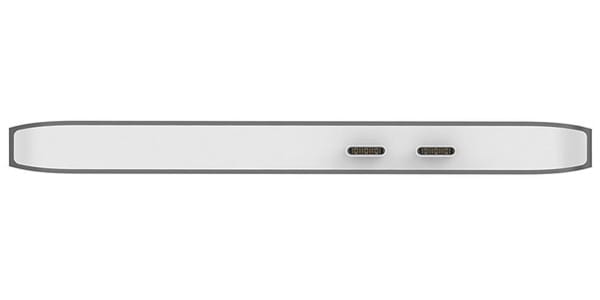

Host interface: Thunderbolt 3 USB Type-C (male)
Thunderbolt interface: Thunderbolt 3 USB Type-C (female)

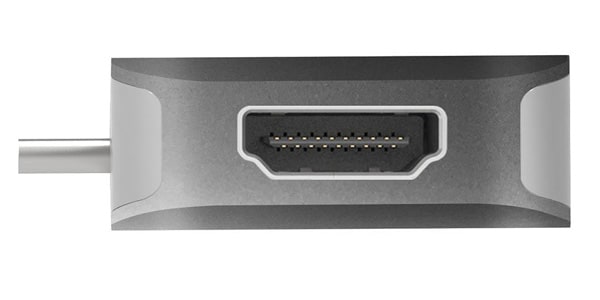

Video interface: HDMI (female)
USB port: USB3.0/2.0 x 2, USB 3.1Gen1 Type-C x 1
Card reader: Card reader
Power supply method: Bus power
Display resolution
*HDMI 4K@30Hz
Thunderbolt3: 5K@60Hz or Dual
4K@60Hz
External dimensions: 120 (W) x 32 (H) x 12 (D) mm
Weight: Approximately 56g
*The host side equipped with USB Type-C must support DisplayPort Alternate mode.

*The USB Type-C port of this product only functions as a hub and does not support DisplayPort Alternate Mode.
Please note that video output to a display using the USB Type-C port of this product is not possible.

*Please note that the ""Apple USB SuperDrive"" is not supported due to manufacturer restrictions.

*The aluminum housing has excellent heat dissipation properties. The hub housing becomes hot to dissipate excess heat generated during use.

Package contents
* JCD382 unit, quick installation guide, warranty card

製品概要

JCD382 MacBook Pro/Macbook Air 2018専用マルチドックは13/15インチのMacbook Pro ( 2016/ 2017 / 2018 / 2019 ) 、Macbook Air 2018に対応しています。Thunderbolt 3ポート x2を通じて、Thunderbolt 3に加えてUSB 3.1 Gen 1 Type-C、4K HDMI、USB 3.1 Gen1 Type A x 2、USB 3.0 micro SD、SDを追加できます。Thunderbolt 3はUSB Type-Cコネクタを使用して高速性(40 Gbps)、ディスプレイ数の増加(最大4K x2)、高効率充電(最大100W)を実現できます。
