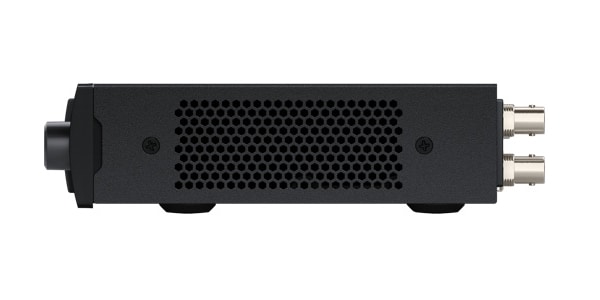

Blackmagic Design / Teranex Mini SDI to HDMI 8K HDR

An 8K HDMI monitoring solution that can convert SDI sources to HD, Ultra HD and HDMI in 8K formats up to 4320p60.

■ 8K HDMI monitoring solution with built-in converter
Connections:
■ SDI video input:
12G? SDI x4 (HD / 2K / 4K / 8K automatic switching)
■ Manufacturer recommended cable,
Belden 1694A
Canare L-4.5CHD
■ SDI video output:
12G SDI loop through x4
■ HDMI video output:
HDMI connector (A type) x4. Supports HD / Ultra HD / 4K single link or 4320p60 quad drink.
■ Analog audio output:
2ch analog audio (RCA terminal)
■ Digital audio output:
16ch embedded audio for all SDI loop outputs, 8ch for HDMI output
■ Embedded Audio:
8ch embedded (HDMI terminal)
■ Supported multi-rate:
1.5G, 3G, 6G, 12G, 2SI Dual Link 12G? SDI, 2SI Quad Drink 12G? SDI, Square Division Quad Drink 12G SDI
■ Updates and configurations:
USB-C or Ethernet
■ Reclocking: Correspondence
format
■ SD video format:
Not compatible
■ HD video format:
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
■ 2K video format:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
■ Ultra HD Video Format:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
■ 4K DCI video format:
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
■ Video format:
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 (automatic switching between 2SI and Square Division)
■ 8K DCI video format:
8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI (automatic switching between 2SI and square division)
■ SDI standard:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A / B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
■ SDI video rate:
SDI video connection can be switched between 1.5G SDI, HD Level A / B 3G SDI, 6G SDI, 12G SDI
■ SDI video sampling: 4: 2: 2, 4: 4: 4
■ SDI audio sampling:
TV standard sample rate (48kHz/24-bit)
■ SDI color accuracy: 4: 2: 2, 4: 4: 4
■ SDI color space: YUV, RGB.
HDMI output format
■ SD video format: not supported
■ HD video format:
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
■ Ultra HD video format:
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
■ 8K video format:
4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
■ HDMI color space:
REC 709, REC 2020
■ HDMI color accuracy:
YUV 4: 2: 2, RGB 4: 4: 4 (HD / 2K / 4K / 8K) 33-point LUT can be loaded via Teranex Utility. Generate calibration LUT based on calibration probe test
■ SIZE: 210 (W) x44 (H) x17.6 (D) mm 1.5kg
*Power cable is sold separately.
