ANTELOPE AUDIO / Orion 32+ | Gen 3

Orion32+ | Gen 3 is a Thunderbolt/USB audio interface that boasts a dynamic range of up to 129dB. It allows low-latency recording of up to 64 channels via Thunderbolt and 32 channels via USB. Digital inputs and outputs include MADI, ADAT, and S/PDIF. Comes with a reassuring 3-year Sound House warranty!

Antelope Audio is known worldwide as the premier audio clock specialist. This legend lives on thanks to our next-generation 64-bit Acoustically Focused Clocking technology and jitter management algorithm. A pair of word clock outputs enables the Orion32+ | Gen 3 to function as a world-class master clock for your entire studio, while a 10MHz input allows you to use Antelope's legendary 10M & 10MX Atomic Clock for the highest possible stability.

The Orion32+ | Gen 3 employs the latest AD/DA converters, achieving a dynamic range of up to 129dB (monitor output). Highly acclaimed for its pristine conversion quality, it reproduces the true sound of your music with both digital clarity and analog warmth.

EXEMPLARY AD/DA
State-of-the-art AD/DA converters with up to 129dB dynamic range.

SUB-MILLISECOND LATENCY
Ultra-stable Windows Thunderbolt™ drivers with sub-1ms round-trip latency.

REAL-TIME EFFECTS
Circuit-level gear emulations run in real time on the integrated FPGA FX platform.

FLAWLESS CLOCKING
Create more natural-sounding music with Antelope Audio's next-generation 64-bit Acoustically Focused Clocking technology and jitter management algorithms.

EXTENSIVE CONNECTIVITY
Up to 64 channels of 24/192kHz audio via Thunderbolt™ or up to 32 channels via USB. Digital I/O includes MADI, ADAT, and S/PDIF.

INTUITIVE CONTROL
Configure via the front panel controls or enjoy routing, mixing, and stacking effects with the PC/Mac app—accessible from any computer on the same network.

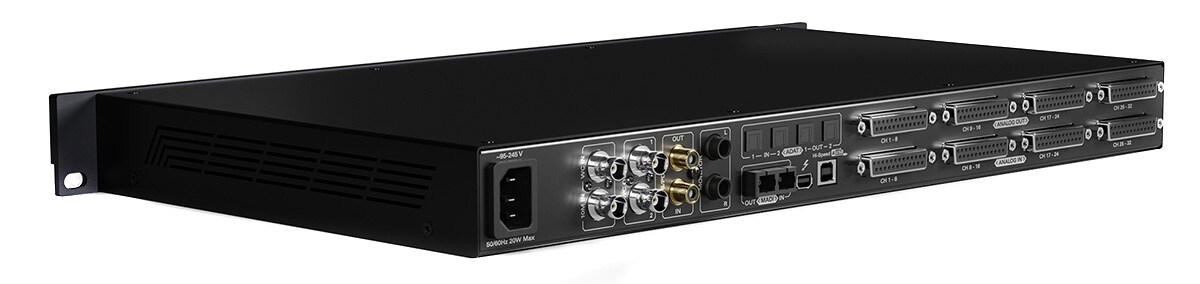

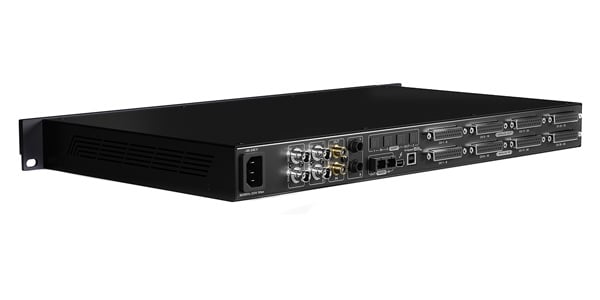

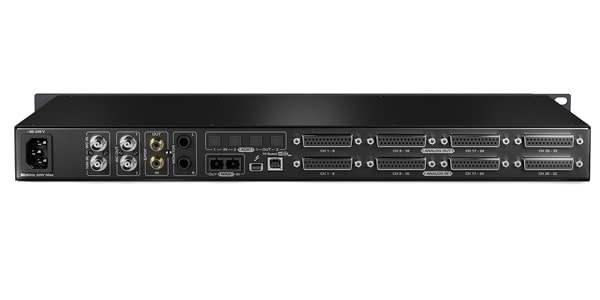

Enable low-latency recording and streaming at up to 64 channels of 24-bit/192kHz audio via Thunderbolt, or up to 32 channels via USB. This sleek, single-rackspace unit features eight DB25 connectors for analog I/O. Digital connections include one MADI, two ADAT, and one S/PDIF. The unit seamlessly integrates with any DAW on your PC or Mac.

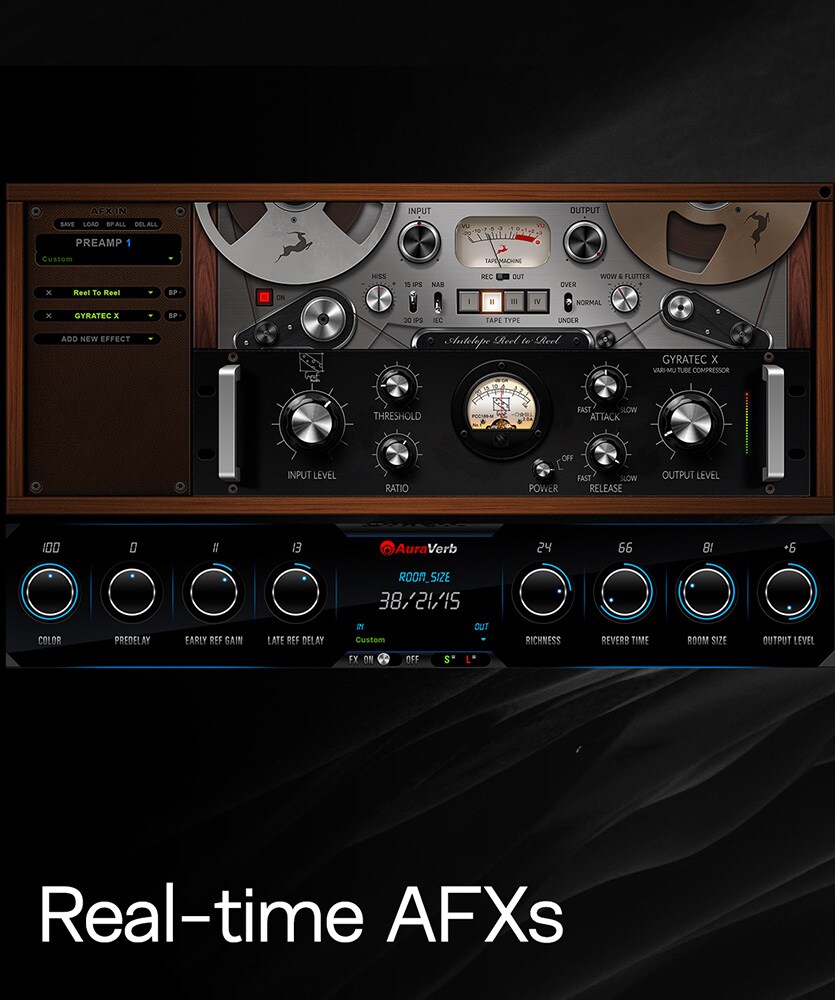

Use amazing real-time effects selected from Antelope Audio FPGA FX's expanding and growing effects library for free. You can purchase additional effects to expand your Orion32+ | Gen3 FX library.

■SPECIFICATIONS
ANALOG
Analog Inputs
4 x D-SUB 25
(32 channels total),
+24 dBu max, 11.2 kOhms

Analog Outputs
4 x D-SUB 25
(32 channels total),
+24dBu, 56 Ohms
2 x Monitor Outs
on TRS 1/4 Jacks

D/A Monitor Converter
Dynamic Range: 129dB
THD+N: -108 dB

A/D converter
Dynamic range: 121dB
THD+N: -112dB

D/A converters
Dynamic Range: 120dB
THD+N: -107 dB

DIGITAL
Digital Inputs
1 x Fiber Optic MADI (up to 64CH)
2 x ADAT (up to 16CH)
1 x S/PDIF

Digital Outputs
1 x Fiber Optic MADI (up to 64CH)
2 x ADAT (up to 16CH)
1 x S/PDIF

USB I/O
USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz,
32 channels I/O, Type B

Thunderbolt?
1 x Thunderbolt? (64 channels I/O)

CLOCKING
Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC 32 - 192kHz

Word Clock Outputs
2 x Outputs @ 75 Ohms 3Vpp on BNC 32 - 192kHz

Atomic Clock Input
1 x 10M Input @ 75 Ohms Vpp on BNC

Clocking System
4th Generation
Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator

Clock stability
<+/-0.02 ppm, oven controlled at 64.5?C/ 148.1?F

Clock Aging
< 1 ppm per year

Clock Calibration
< +/-0.001 ppm Sample Rates (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192

OTHER
Operating Temperature
0-50°C, 32-122°F

Weight (Approx)
3kg/ 6.6lbs

Dimensions (Approx)
Width: 483mm / 19""
Height: 44mm/1.75""
Depth: 220mm/8.66""

Electrical specs
AC universal input: ~95-245V
Power Consumption: 20 Watts Max

In the box
Orion 32+ | Gen 3
Warranty Card
Power cable
USB cable

■SYSTEM REQUIREMENTS
・WINDOWS
OS: Windows 10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth: 80%-90%
Thunderbolt: 1x Thunderbolt port. Thunderbolt for Windows Description.
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

・MAC
OS X: 10.11 and above (High Sierra recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Thunderbolt: 1x Thunderbolt/USB-C Port
Required USB bandwidth: 80%-90%
Memory (RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 or higher (Recommended)

Information essential for product operation is listed on our Japanese support page. A detailed product introduction and feature description are also available on the support page.

Additional Information: An internet connection is required for product activation.

Thunderbolt connections may not be compatible with Apple Macs from early 2011 or earlier (not just Antelope Audio products).

*For reported performance issues with 2020 Apple Mac models, as well as compatibility with your Mac and operating system, please refer to the manufacturer's website below.


■MACOS compatibility and optimization information
At the bottom of the manufacturer's website page below, under ""Reported performance issues for 2020 Apple Mac models,"" you can find information about noise when using the device with 2020 Apple products.
Please also check the operating environment.
