IMAGENICS / DVC-165

A DVI converter that can convert between digital and analog video signals

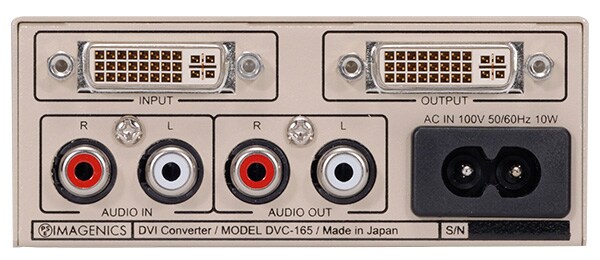

■Input terminal
Video: TMDS/Analog DVI-I 1 system
Audio: Stereo unbalanced 100 kΩ RCA pin jack 1 system
■Output terminal
Video: TMDS/Analog DVI-I 1 system
Audio: Stereo unbalanced 150 Ω RCA pin jack 1 system
■Video signal input
TMDS: DVI 25~165MHz 24bit
HDMI: 25-225 MHz 24-36 bit
RGB: R,G,B 0.7V(p-p) 75Ω, HD,VD TTL
YPbPr: Y 1.0V(p-p) 75Ω, Pb,Pr 0.7V(p-p) 75Ω
S-VIDEO: Y 1.0V(p-p) 75Ω, C 0.286V(p-p) 75Ω
VIDEO：CVBS 1.0V(p-p) 75Ω
■Video signal output
TMDS: DVI 25-165 MHz 24 bit RGB4:4:4
HDMI: 25-225 MHz 24-36 bit RGB4:4:4
RGB: R,G,B 0.7 V(p-p) 75 Ω, HD,VD TTL
■Video quantization
Pixel clock: 25-165MHz, resolution: 12bit
■Video functions
3D Y/C separation, TBC, line doubler, EDID emulation
■Maximum audio input level
2.449 V(rms) (+10 dBu)
■Maximum audio output level
2.449 V(rms) (+10 dBu)
■Audio frequency response/distortion rate
20 Hz to 20 kHz ±0.1 dB / 0.013% or less
■Audio dynamic range
97 dB or more
■Audio quantization: 24 bit 48 k sample/s
■Audio delay setting
0 to 20 seconds, can be set in 0.1 sec, 1 msec, or 1 frame increments
■Audio level control
-∞, -95.5 to +31.5 dB, 256 steps
■Operation section

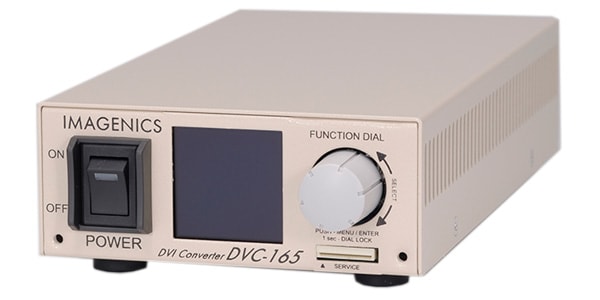

Equipped with a small display and operation dial on the front, dial lock function, backup memory, and setting switching using user memory
■Power supply
AC 100 V (50 Hz/60 Hz)
■Power consumption
10 W or less (maximum)
■Accessories
1 domestic power cable (2P-2P) Power switch cover 1 DVI (male) to D-Sub (female) conversion connector
■SIZE; 100 (W) x 40 (H) x 180 (D) mm (excluding protrusions) Approx. 710 g
