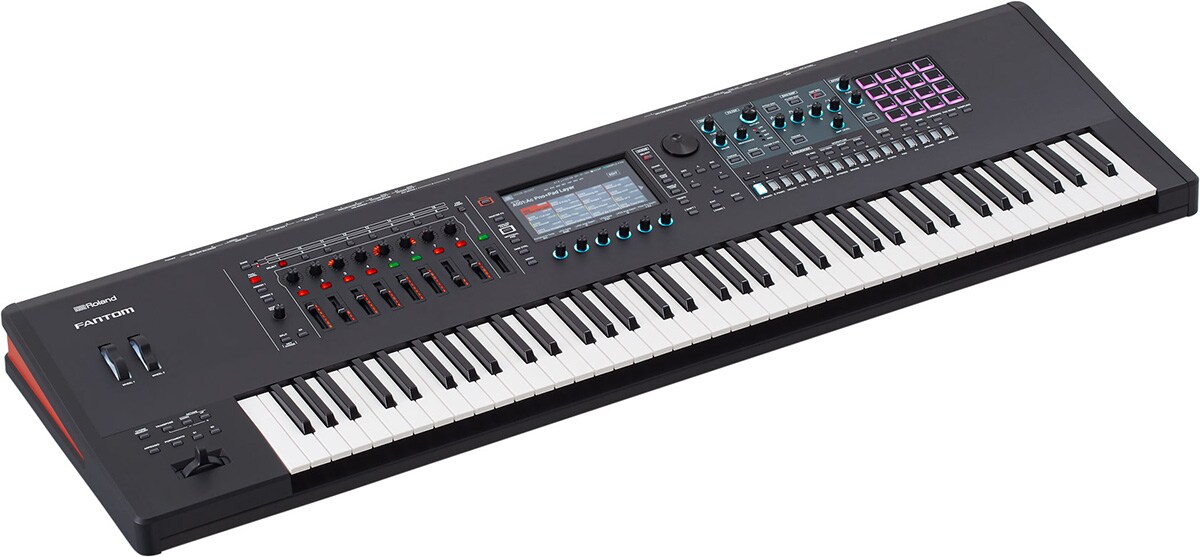

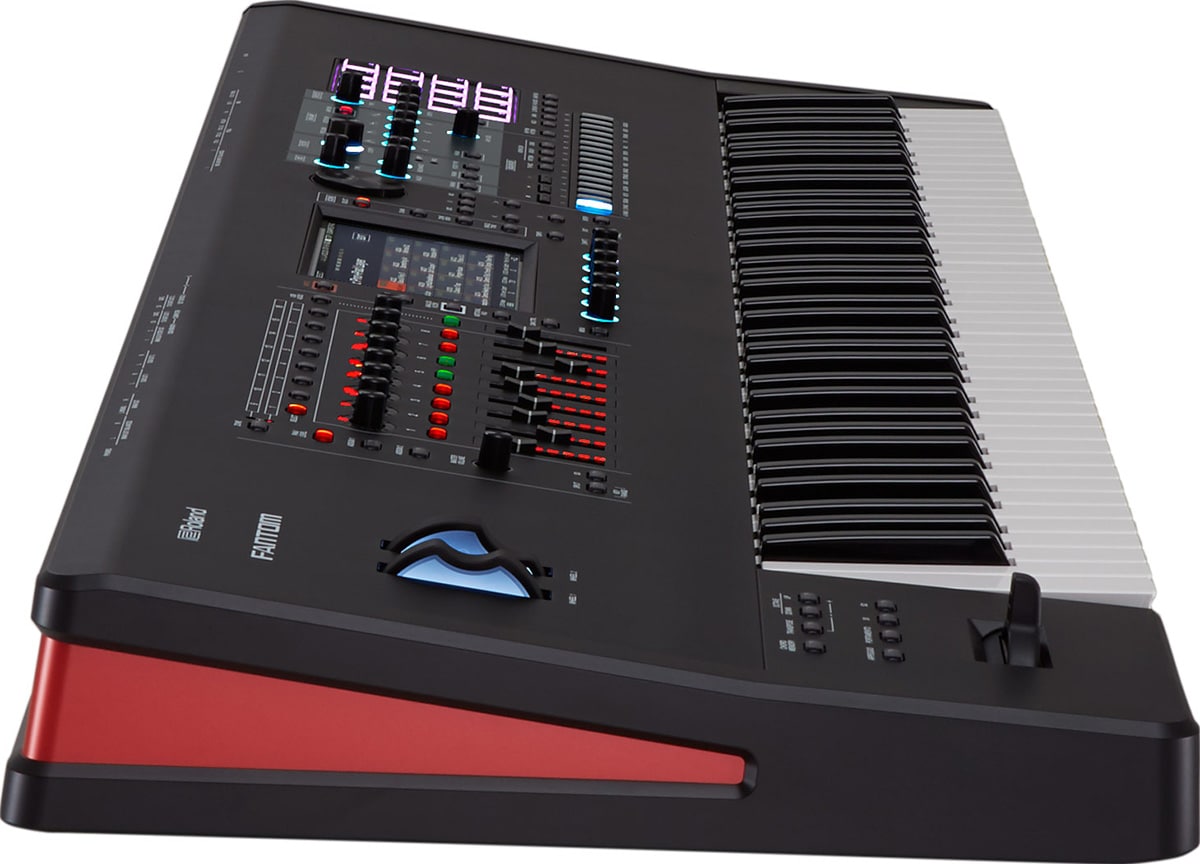

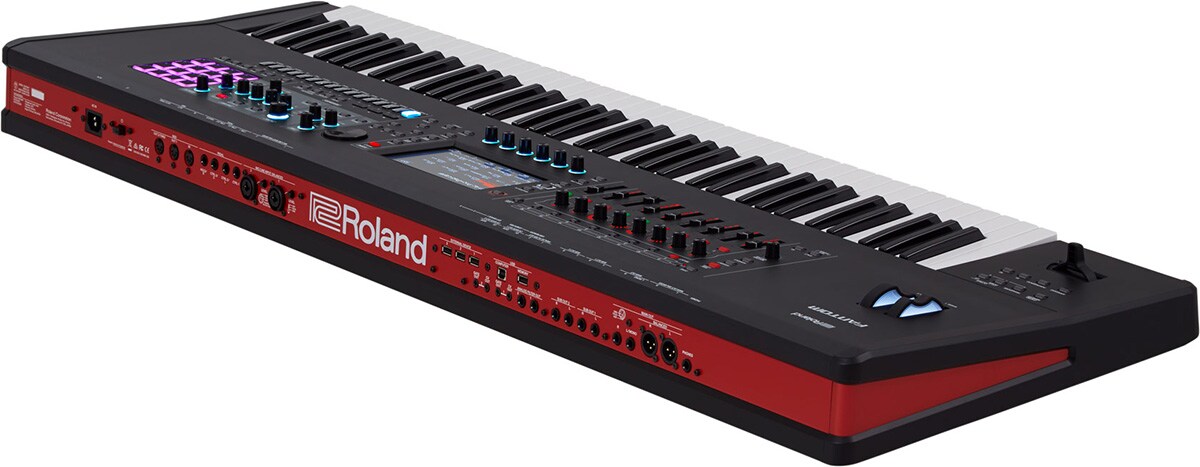

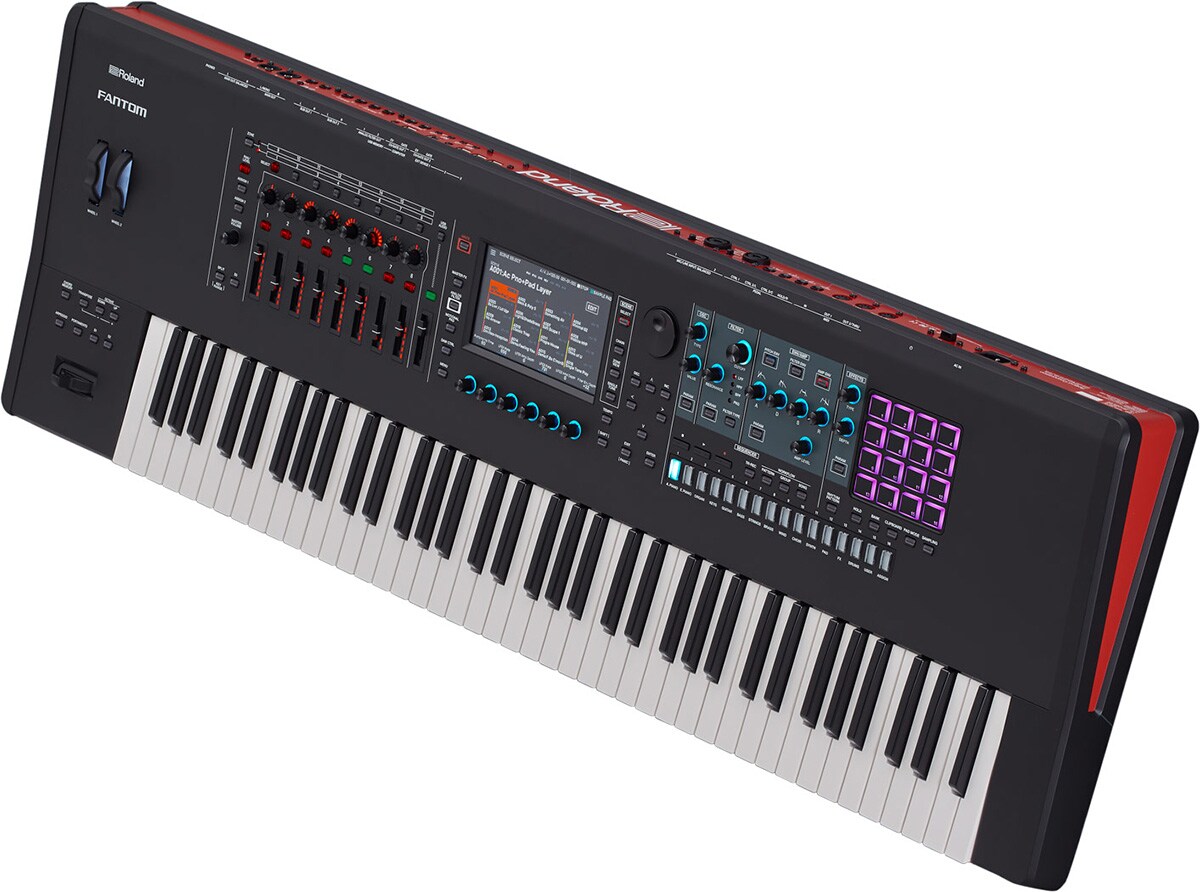

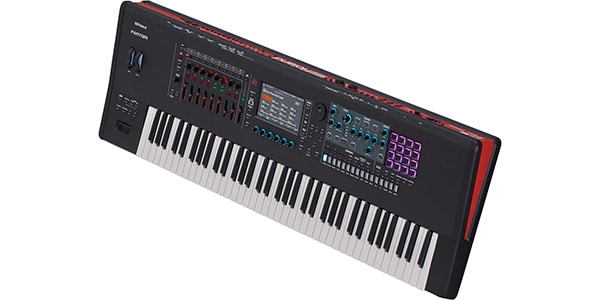

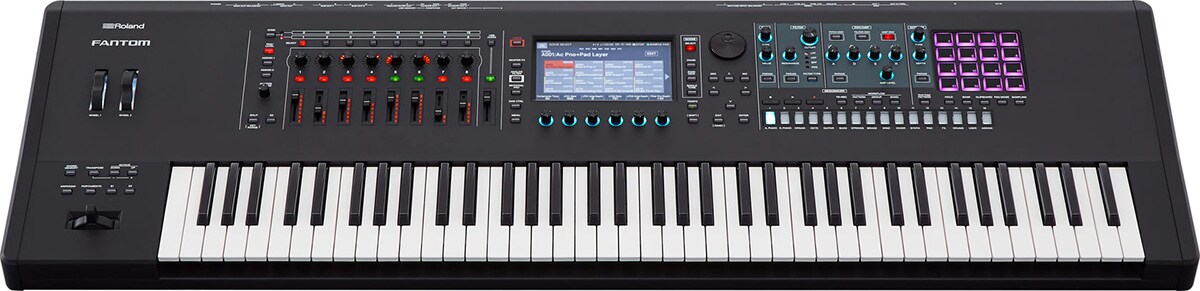

ROLAND / FANTOM-7

ROLAND's 76-key synthesizer delivers exceptional quality and balance for live performance, music production, external control, and more.

●Keyboard
Number of Keys: 76 (Semi-weighted, Aftertouch)

■Sound Generator
ZEN-Core
V-Piano Technology

●Number of Parts
16 Zones (Internal + External)

●Number of Scenes
128 Scenes x 4 Banks

●Number of Tones
Over 3,500 Tones
Over 90 Drum Kits

●Effects
Multi-Effects: 16 Systems, 90 Types
Part EQ: 16 Systems
Drum Part COMP: 6 Systems
Insert Effects: 2 Systems, 90 Types
Chorus: 8 Types
Reverb: 6 Types
Master Compressor
Mic Input Reverb: 6 Types

●Analog Filter
Stereo
TYPE: LPF1/LPF2/LPF3/HPF/BPF/Bypass
Drive
Amp

■
Sequencer
Number of MIDI Tracks: 16
Groups: 16
Patterns: 8 (per track)
Pattern Length: 32 bars
Recording Method: Real-time Recording, Step Recording, TR-REC

■ Sampler
● Pad Sampler Section
Format: 16-bit linear, 44.1kHz/48kHz, WAV/AIFF import supported
Number of Polyphony: 8
Number of Samples: 16 pads x 4 banks

■ Other
● Rhythm Patterns

● Arpeggios

● Chord Memory

● Controllers
Pitch Bend/Modulation Lever
S1/S2 Buttons
Control Knobs x 8
Sliders x 8
USB Audio Slider
Wheels x 2
Function Knobs x 6
Sound Modify Knobs x 11
4x4 Pads

●Display
7-inch graphic color LCD (WVGA 800 x 480 pixels) with touchscreen

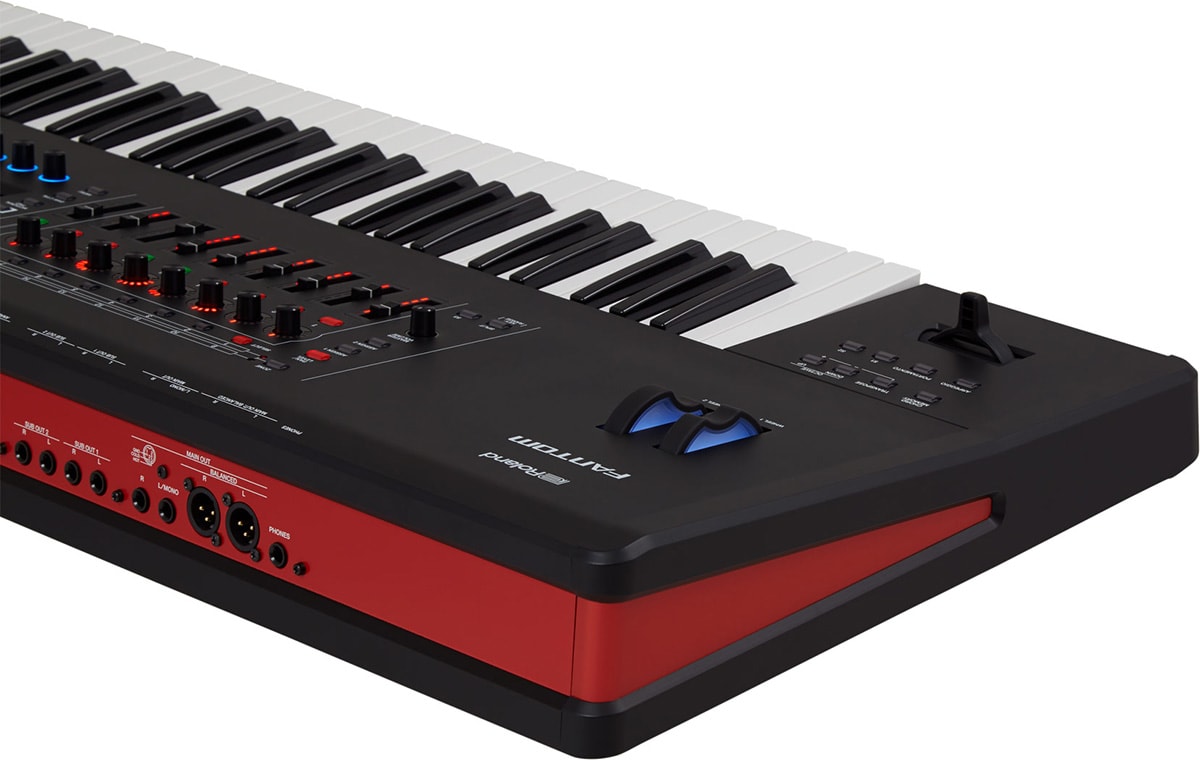

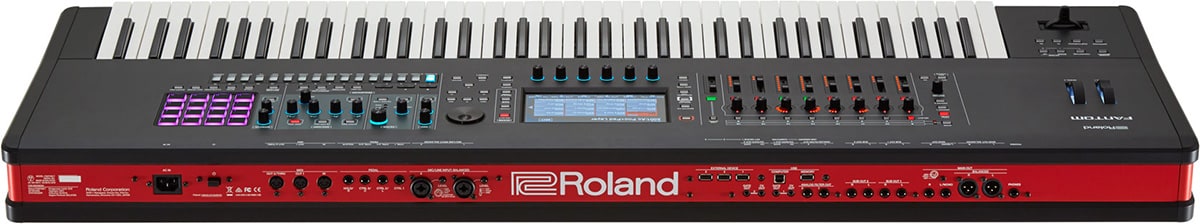

●Connections
HPNES jack (stereo standard type)
MAIN OUTPUT jacks (L/MONO, R) (standard TS type)
MAIN OUTPUT jacks (L, R) (XLR type)
SUB OUT 1 jacks (L, R) (standard TS type)
SUB OUT 2 jacks (L, R) (standard TS type)
ANALOG FILTER OUT (1, 2) (standard TS type)
MIC/LINE INPUT jacks (1, 2) (standard XLR/TRS combo type)
CV OUT jacks (1, 2), GATE jacks (1, 2)
FOOT PEDAL jacks (HOLD, CTRL1, CTRL2, CTRL3)
MIDI jacks (IN, OUT1, OUT2/THRU)
USB MEMORY jack
USB COMPUTER jack (AUDIO/MIDI compatible)
EXTERNAL DEVICE jacks (1, 2, 3)

●External Memory
USB flash drive (sold separately)

●Power Supply
AC 100V (50/60Hz)

●Power Consumption
50W

1296 (W) x 403 (D) x 106 (H) mm

●Weight
17.7 kg

●Accessories
Instruction manual
Power cord
Warranty card
Roland user registration card

●Optional Accessories
Keyboard stand: KS-10Z, KS-12
Pedal switch: DP series, RPU-3
Expression pedal: EV-5
USB flash drive (*)
*Please use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB memory devices will work.
