Critter & Guitari / Organelle M (Blue)

Critter & Guitari's synthesizer, ORGANELLEM, is a new style of ""music computer"" equipped with a Pure Data sound engine, a Cortex processor (1.2GHz/quad-core, 64-bit), and 1GB RAM. Color: Blue

The Organelle M adds a built-in speaker, microphone, and MIDI ports, as well as battery operation. It also features a faster processor, double the RAM, and superior patch management capabilities.

Critter & Guitari's ""Organelle M"" is a new style of ""music computer"" equipped with the Pure Data sound engine, a Cortex processor (1.2GHz/quad-core, 64-bit), and 1GB of RAM.

By loading patches created with Pure Data, the Organelle M can be used as a synthesizer, arpeggiator, sequencer, drum machine, sampler, and effects unit.

By connecting peripheral devices via the USB port, you can use the Organelle as a computer and design and modify Pure Data patches.

This music tool offers endless possibilities for music creation and the joy of playing.

■Specifications
Audio:
- Sampling Rate: 44.1kHz/16-bit (In & Out)
- Standard (1/4"") Stereo Output
- Standard (1/4"") Stereo Input
- Mini-Stereo (1/8"") Headphone Output

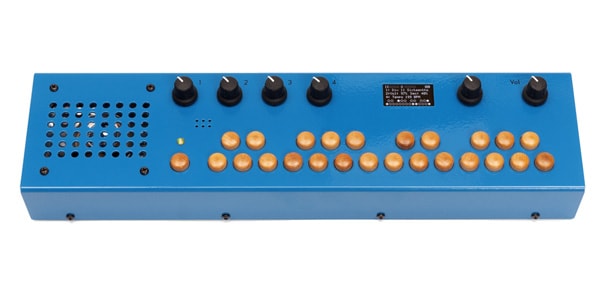

Interface:
- High-Contrast OLED Display Screen
- 4 Parameter Knobs
- Rotary Selection
- Knob and Push-Button Select
- Volume Knob
- 25 Wooden (Maple) Keys
- 1 RGB LED

Processor:
- 1.2GHz ARM Cortex A53 (Quad-core; 64-bit) Processor
- 1GB RAM Memory
- Linux Operating System
- Boot Time: Approximately 12 seconds

Storage:
- Built-in 8GB microSD card (2 x 4GB partitions, divided for OS and patches)

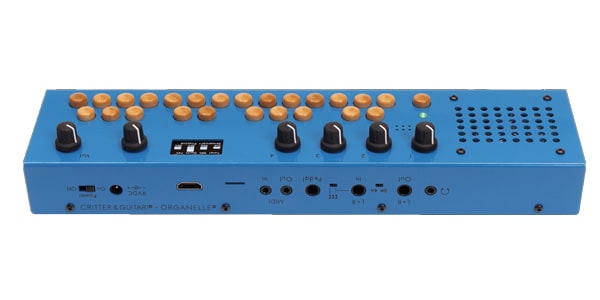

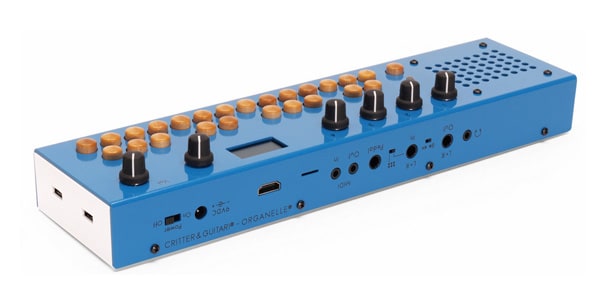

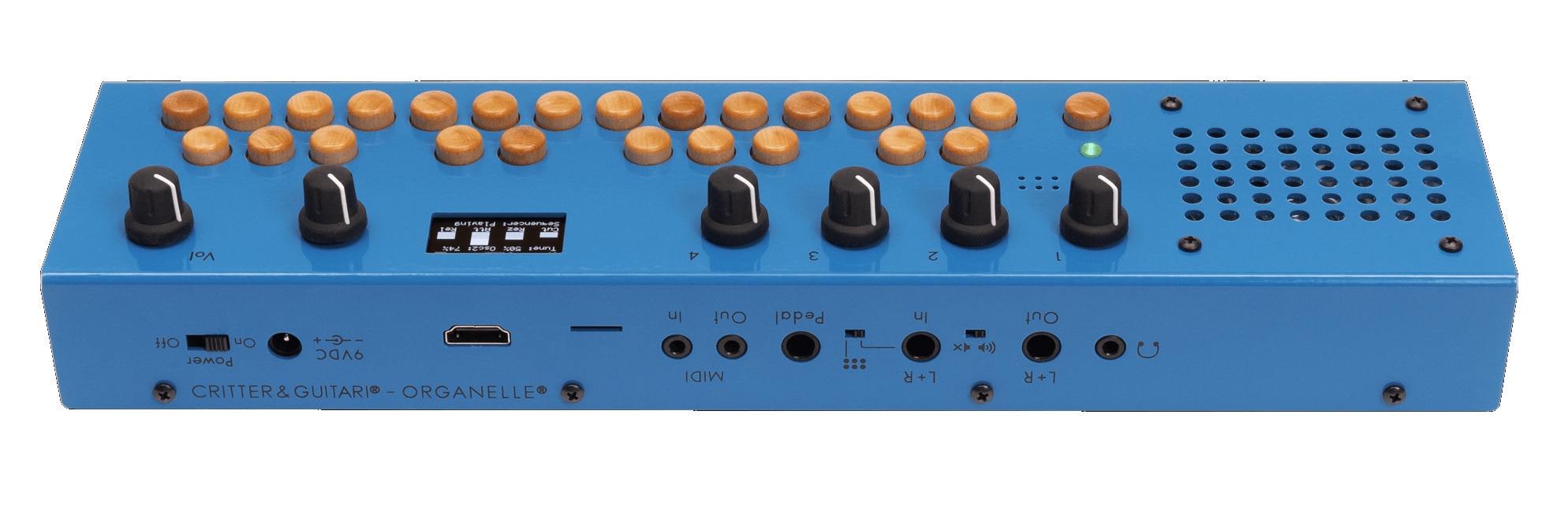

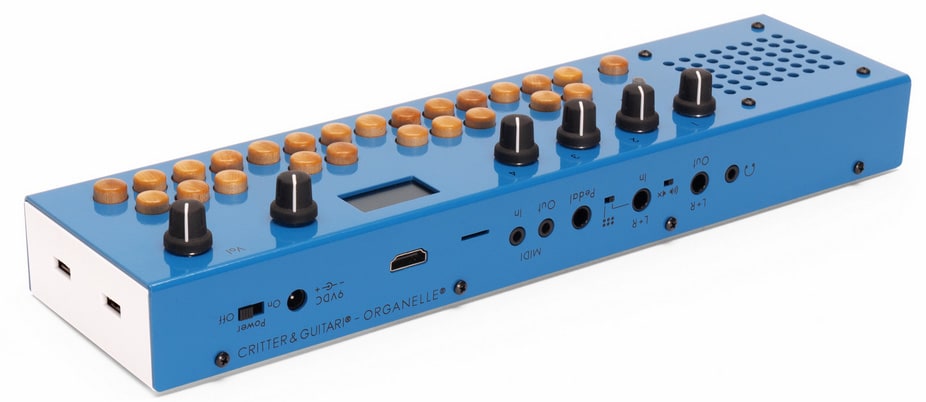

Other Connections:
- TRS MIDI Input, Mini Stereo (1/8"" TRS)
-TRS MIDI Output, Mini Stereo (1/8"" TRS)

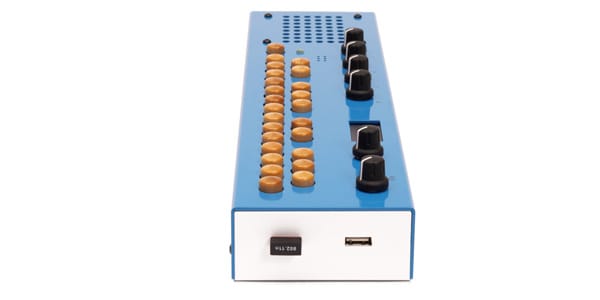

-2 USB Ports (USB 2.0, Type A Connector). USB Host, MIDI over USB & Serial over USB
-HDMI Video Output (for Display Monitor)
-Footswitch Jack (1/4"" Standard Phone)

Power Supply:
-9VDC (1.0A or higher),

Position: Center + (Tip = positive)

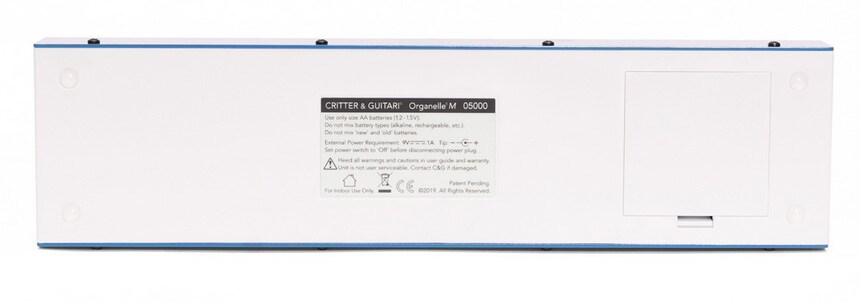

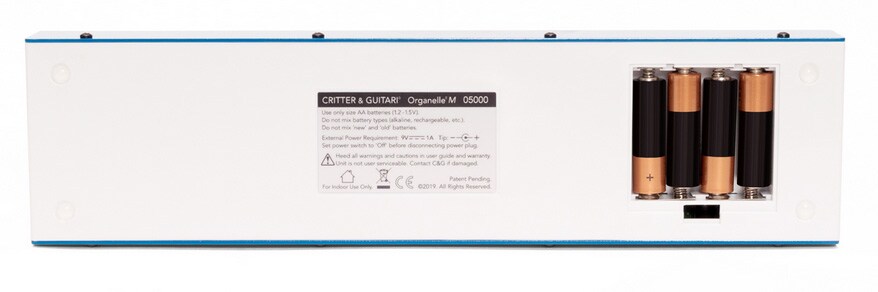

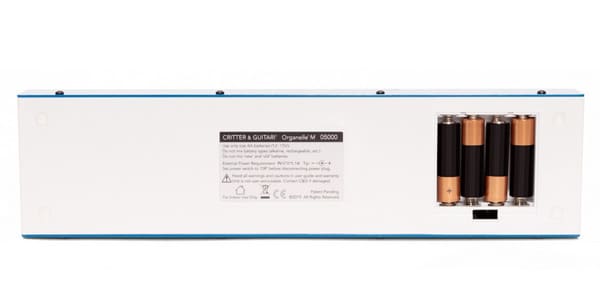

-Battery Operation: 4 x AA Batteries (1.2-1.5V per cell)

Appearance:
-Dimensions: 33.81 x 8.57 x 5.40 cm
-Weight: 657g
-Weight with Batteries: 753g
-Enclosure: Powder-coated aluminum (top), ABS plastic (bottom), rubber feet

Included Items:
-1 Organelle
- 1x Japan 100V/PSE compliant power adapter

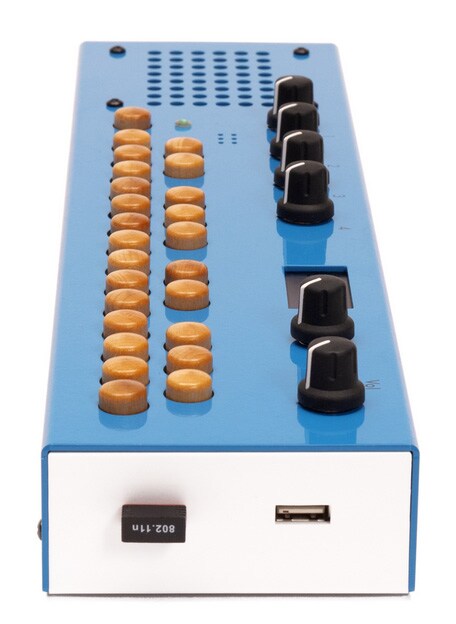

- 1x USB-WiFi adapter with Ralink 5370 chipset

*Please note that the following items are not included:
- TRS-MIDI adapter cable
- TRS cable (Organelle-Organelle MIDI connection)
- USB drive

The latest Organelle M adds a built-in speaker and microphone, MIDI ports, and battery operation. It also features a faster processor, double the RAM, improved patch management, and a WiFi adapter. Experience musical ideas and inspiration anytime, anywhere with greater freedom.

Overview
With Organelle M, you can explore new sounds and experiment with new ways of creating music. Combining playfulness and intuitive control with a powerful and flexible sound engine, this new instrument offers limitless musical possibilities and performance enjoyment.

Organelle At the heart of the Organelle's sound engine is a high-spec computer that runs your patches. With onboard hardware for sound input and output, mappable knobs, keys, and buttons, and patches, Organelle M transforms into a versatile synth, effect, sampler, and more.

The Organelle M comes pre-installed with a set of popular default patches, and additional patches can be loaded from a USB drive. Simply download endless patches from a growing community on the web, transfer them to a USB drive, reinsert it into Organelle M, and play.

You can, of course, create your own patches. You can create and edit patches directly on the device. Simply connect a keyboard, mouse, and monitor to Organelle M and start customizing. You can run patches created in Pure Data*, a visual programming environment for computer music.

Create patches, modify existing ones, and share them with the community. Organelle M was built with community interaction in mind. The entire system is open source software, designed to be customizable at every level.

SYNTH: Infinite Synth Sounds at Your Fingertips
Organelle M is a small, easy-to-use, dreamy instrument capable of performing any kind of sound synthesis imaginable. Organelle M excels at sound synthesis. The pre-installed and user-shared patch lists offer a full range of synthesizers, from additive/subtractive synthesis, classic wavetable sounds, granular, physical modeling, ADSR envelope styles, and FM synths. Plus, there's always the option to create your own synths in Pure Data, making Organelle M an incredibly flexible and powerful synthesizer.

PROCESSING SOUND: Effect Processor
Organelle M has incredible capabilities for sound processing and sampling. Many patches have been developed that take advantage of Organelle M's ""stereo sound input."" This means that Organelle This means you can use Organelle M as a pedal-style guitar effects unit, applying granular, glitch, and spectral effects to any input source.

You can also record samples from the built-in microphone or line input and process them in a variety of ways. Resample, granular, arpeggiate, and other creative techniques are available to build entirely new sounds.

MAKING BEATS: CREATE UNIQUE BEATS
Tap rhythms on the keyboard or generate beats in patches to turn Organelle M into a powerful beat machine. Organelle M is also perfect for playing samples in real time. There are plenty of patches to suit any occasion, at various tempos. Whether it's polyrhythms, beat juggling, generative rhythms, recording samples and manipulating rhythms, or just some quirky little sequences, Organelle M will never miss a beat you're looking for!
