SPL / Gemini All Black

The ""Gemini"" is an M/S processor developed by SPL that utilizes 120V technology. MID signals (voice/snare/bass, etc.) are clearly separated from SIDE signals (guitar/cymbals/spatial sounds, etc.), allowing for individual signal processing.

■Mastering M/S Processor

*This product requires an AC115V 50/60Hz power outlet. Please note that it will not function correctly with a standard household outlet (AC 100V) without voltage boosting.

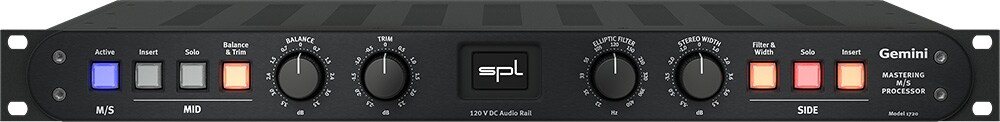

M/S coding is the best way to access each element within a mix. Gemini offers the possibilities of stereo parametrication. The balance control allows you to position the MID signal within the stereo image. The trim control allows you to adjust the level of the MID signal relative to the SIDE signal. It works in conjunction with the STEREO WIDTH control to adjust the mix ratio of both channels. It also features an ELLIPTIC FILTER that cuts the low frequencies of the SIDE band.

■Technical Specifications

Input:

Max. Input Level: +32.5 dBu

Input Impedance: 20 kOhms (bal.)

Output:

Max. Output Level: +32.5 dBu

Output Impedance: 100 Ohms (bal.)

Noise (A-weighted, Insert, Balance & Trim, Filter & Width = active): -98.2 dBu

THD & N (at +20 dBu): -110 dB

Common-Mode-Rejection (at 0 dBu): -79 dB

Transmission Bandwidth: 10 Hz-150 kHz

Power Consumption:

0.11 Amp, 230V/50Hz, 24 Watt, 32 VA

0.22 Amp, 115V/60Hz, 24 Watt, 32 VA

Fuse:

230V/50Hz: 0.5 Amp, 115V/60Hz: 1 Amp

Dimensions:

482 x 44 x 300 mm (front panel excl.)

Standard EIA 19 Inch Housing/1U

Weight: 5kg
