Blackmagic Design / HyperDeck Extreme 8K HDR

The world's first 8K broadcast deck with advanced H.265 recording, touch screen interface, internal cache, and even traditional deck style controls!

■ 8K compatible broadcasting deck
Connections:
■ SDI video input: 4
■ SDI video output: 5
(12G?SDI A, B, C, D and 3G?SDI monitoring output)
■ SDI rate: 270Mb, 1.5G, 3G, 6G, 12G
■ HDMI 2.0 video input: 1
■ HDMI 2.0 video output: 1
■Analog video input:
■ Component YUV x1 (BNC terminal x3),
■ Composite NTSC/PAL x1 (BNC terminal x1)
■ Analog video output: Not supported
■ Analog audio input:
4-channel professional balanced analog audio (XLR terminal),
2-channel consumer unbalanced audio (RCA connector)
■ Built-in speaker: Mono

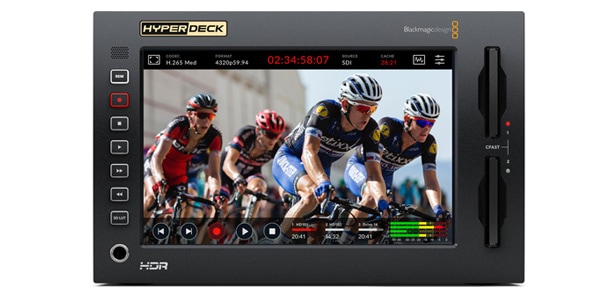

■ Screen: 7 inch 1920 x 1200 2000 nit DCI-P3 100% HDR LCD
■Time code connection: XLR input x1, XLR output x1
■ Reference input: Tri-level sync or black burst
■ SDI audio input: 16ch embedded audio
■ SDI audio output: 16ch embedded audio
■ HDMI audio input: 8ch embedded audio
■ HDMI audio output: 8ch embedded audio
■ Remote control: RS-422 input x1, RS-422 output x1
■ Recorder configuration:
Via user interface or Blackmagic HyperDeck Ethernet Protocol
Ethernet: 10Gb/s
■ Recording on external devices:
USB-C 3.1 Gen 2 (up to 10Gb/s) x1 for recording to external disk
■ Computer interface:
USB-C x1 (for software update)

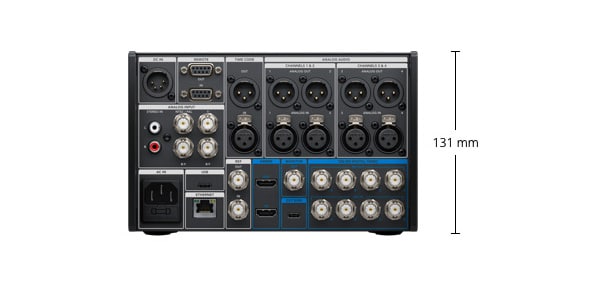

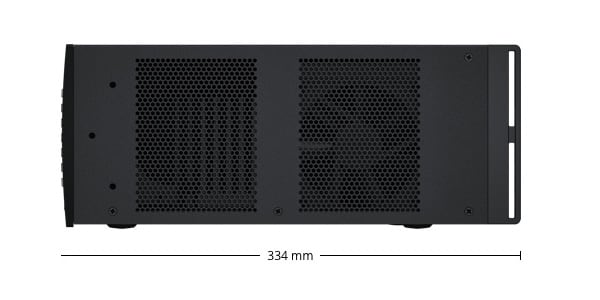

■ SIZE:210(W)x131(H)x334(D) mm 3.65kg
*Power cable is sold separately
