TK AUDIO / TK-Lizer2

TK AUDIO's Baxandall-style equalizer. Features easy-to-recall step controls, switchable shelving/peaking modes, and a high-pass filter with 12 selectable frequency bands.

■ 3-band Baxandall-style equalizer

■ Specifications

Q: 0.5

THD+N @ +4dBu: 0.003%

THD+N @ +26dBu: 0.0005%

THD @ +4dBu: 0.002%

THD @ +26dBu: 0.0005%

Frequency response: 20Hz-20kHz: +/-0dB

Frequency response: 20Hz-80kHz: -0.2dB

Max input level: +26dBu

Max output level before clip: +27dBu

Signal to noise ratio @ 0dBu: 94dBu

Dynamic range: 120dB

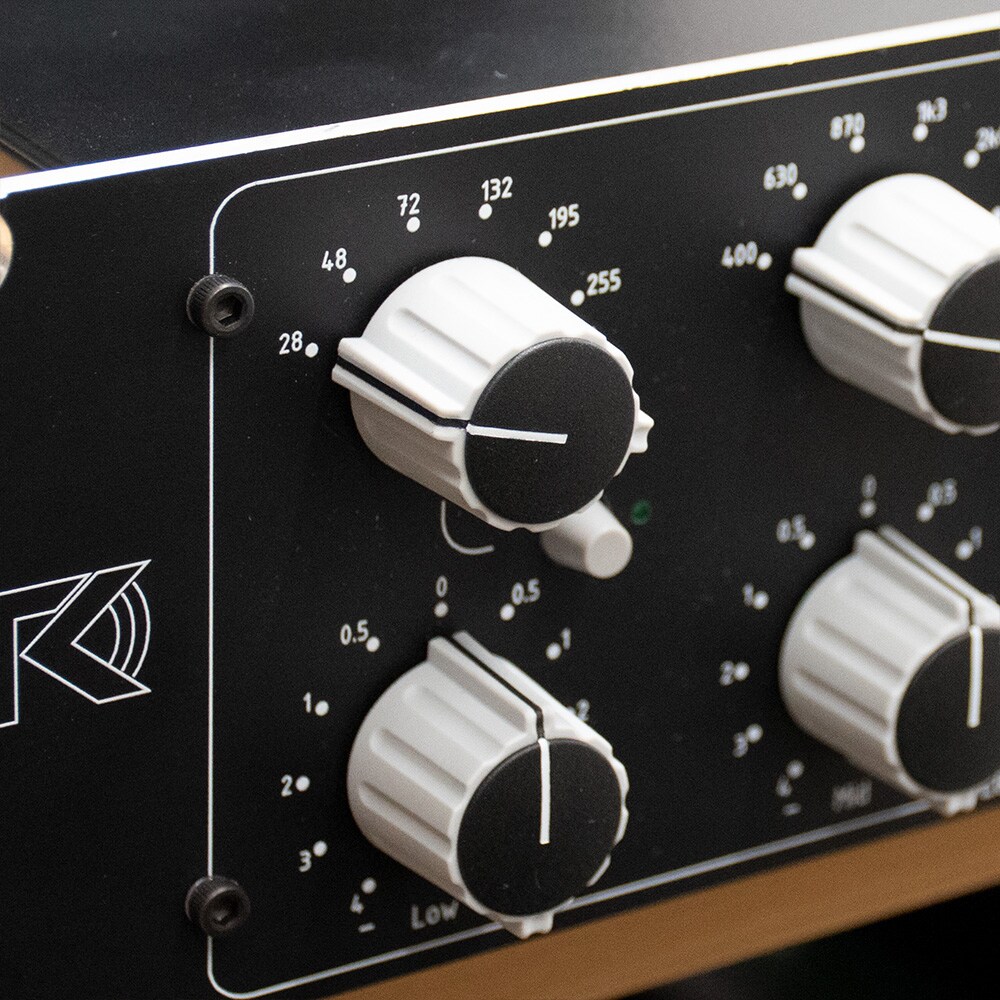

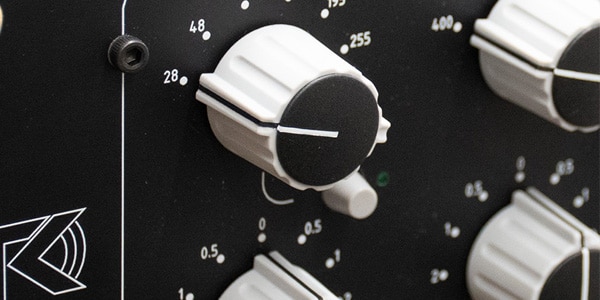

Low freq: 28Hz, 48Hz, 72Hz, 132Hz, 195Hz, 255Hz, switchable between shelf and peak

Mid freq: 400Hz, 630Hz, 870Hz, 1.3kHz, 2.4kHz, 4.8kHz

High freq: 4kHz, 7.2kHz, 12kHz, 16kHz, 20kHz, 25kHz, switchable between shelf and peak

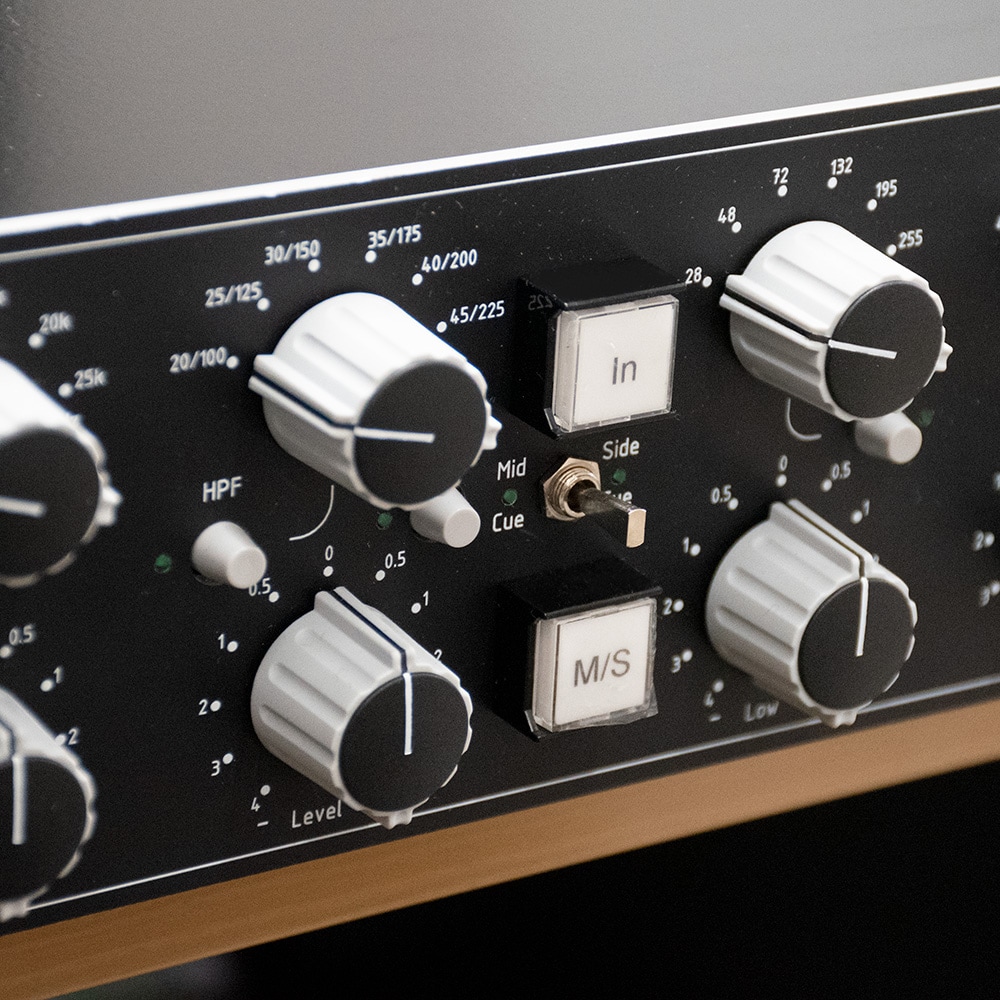

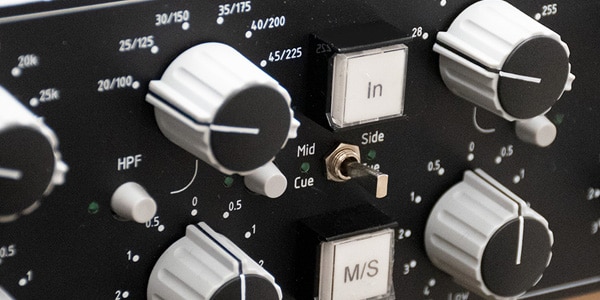

HPF freq: 20Hz, 25Hz, 30Hz, 35Hz, 40Hz, 45Hz, or 100Hz, 125Hz, 150Hz, 175Hz, 200Hz, 225Hz with the x5 switch activated. -12dB/octave

Boost/cut: -4dB, -3dB, -2dB, -1dB, -0.5dB, 0dB, +0.5dB, +1dB, +2dB, +3dB, +4dB

Level: -4dB, -3dB, -2dB, -1dB, -0.5dB, 0dB, +0.5dB, +1dB, +2dB, +3dB, +4dB

EQ: in/out

M/S: in/out

Cue switch for separate monitoring of the mid or side signal

Regulated, internal power supply with a toroidal transformer

115V
