Blackmagic Design / BDLKDUO2LP

[Official Japanese product] A capture and playback card with 4 independent 3G-SDI connections. 4 independent capture and playback on a single card!

A low-profile, multi-channel PCI Express capture and playback card that supports all SD/HD formats up to 1080p60.

A single card can be used for 4 independent capture and playback.

Fully customizable, ideal for media playback systems, multi-screen digital signage servers,

and systems that capture multiple channels in real time! !

■PCI Express capture and playback card

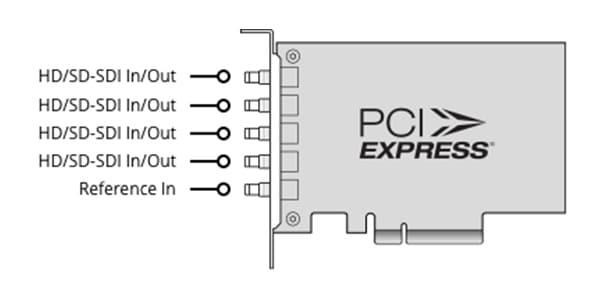

■SDI video input: 4 x 12-bit SD/HD bidirectional. Input/output can be individually configured

■SDI video output: 4 x 12-bit SD/HD bidirectional. Inputs and outputs can be individually configured
■SDI audio input: 16-channel embedded (SD/HD)
■SDI audio output: 16-channel embedded (SD/HD)
■Sync input: Tri-level sync or black burst
■Computer interface: PCI Express 4-lane generation 2. Compatible with 4, 8, and 16-lane PCI Express slots
■Supported codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL,
DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD,
XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444,
Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT,
Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, uncompressed 10-bit 4:4:4
■SIZE: Depth 100.0mm 87.5g
