ANTELOPE AUDIO / Orion32HD | GEN3 Audio Interface

Antelope Audio's HDX-enabled 32-channel AD/DA converters lead the industry, achieving an astounding 136 dB dynamic range in the Monitoring D/A section.

■Audio Interface
■USB 3.0
■Pro Tools HD Compatible
■64-channel HDX & 32-channel USB 3.0 Audio Interface

With upgraded conversion and a refreshed design, the Orion32 HD | Gen 3 will elevate your productions and live shows to an unparalleled level.

Major improvement in the Line Out DACs and Line In ADCs

D/A Monitor Converter
Dynamic Range: 136 dB
THD + N: -120 dB

A/D Converter
Dynamic Range: 124 dB
THD + N: -112 dB

D/A Converters
Dynamic Range: 129 dB
THD + N: -120 dB

Refined looks

Gorgeous black faceplate

Key Product Features
"" FPGA-based low-latency effects model legendary studio gear""
"" Natively compatible with Pro Tools HD""
"" 24-bit, 192 kHz audio streaming via HDX or USB 3.0""
"" Flawless 4th-generation 64-bit clocking and jitter management""
"" Additional connectivity for MADI, ADAT, S/PDIF, and 8x DB25
"" Mastering-grade monitor output"" Housed in an efficient, ""green"" fanless chassis
Network control from multiple computers
Compatible with macOS and Windows

Explore Vintage Studio Equipment
The Orion 32 HD | Gen 3 features a suite of effects from Antelope Audio's vast library of FPGA FX models.

Forget About Latency
Stream 64 Audio Channels with HDX & USB 3.0

This new Pro Tools HD-native interface offers zero-latency monitoring, 64-channel 24-bit/192 kHz audio streaming, perfect clocking and AD/DA conversion, and extensive connectivity and expandability.

Fast and Luxurious
Smooth Mixing and Mastering-Grade Monitoring

The Orion 32 HD | Gen 3 is a versatile audio interface that's attractive for any DAW on the market. Not only can it stream 64 channels of audio while tracking, but it also allows for multiple monitor mixes. The sound is pleasant, transparent, detailed, and natural. Independent software mixer, integrated hardware-based FPGA vintage effects—it's all there, and with more connectivity options than ever before.

CLOCKING LIKE WE LOVE IT
Perfect Sound Through Perfect Clocking

Orion 32 HD| Gen3's exceptional clock accuracy is provided by Antelope's renowned 64-bit Acoustically Focused Clocking (AFC) jitter management technology. Antelope Audio clocking has a long-standing reputation for excellence in both stability and sonic improvement. Transients will shine like never before, and you'll achieve a stereo image with unparalleled depth and detail. And that crystal-clear high end—yes, we're talking perfect sound!

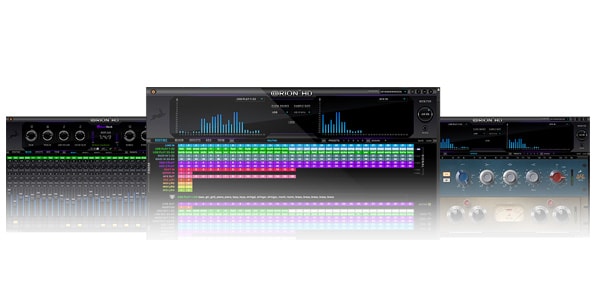

INTUITIVE SOFTWARE CONTROL
Your most ambitious routing dreams come true with Orion 32 HD.

Orion 32 HD| Gen 3 is fully controllable via an intuitive macOS and Windows-compatible desktop application. Its color-coded routing matrix provides a visual representation of your signals. You can even access this interface from multiple computers on the same network. Freely movable and resizable panels allow you to make the most of your screen space. Perfect for working on large projects, recording images, or working in multi-screen setups.

SPECIFICATIONS

ANALOG
Analog Inputs
4 x DB 25 (32 channels total), +24 dBu max

Analog Outputs
4 x DB 25 (32 channels total), +24 dBu max
2 x Monitor Outs on TRS 1/4 Jacks, +24 dBu max

D/A Monitor Converter
Dynamic Range: 136dB
THD+N: -120dB

A/D converter
Dynamic Range: 124dB
THD+N: -112dB

D/A converters
Dynamic Range: 129dB
THD+N: -120dB

DIGITAL
Digital Inputs
1 x Fiber Optic MADI (up to 64 channels)
2 x ADAT (up to 16 channels)
1 x S/PDIF

Digital Outputs
1 x Fiber Optic MADI (up to 64 channels)
2 x ADAT (up to 16 channels)
1 x S/PDIF

USB I/O
USB 3.0 - 64 channels I/O up to 192kHz,
USB 3.0 Type B connector

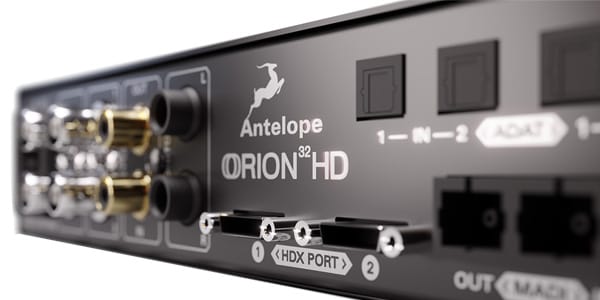

HDX

2 x mini HDX connectors for direct Pro Tools connection
32 Channels I/O each (total of 64 channels)

CLOCKING
Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC 32 - 192kHz

Atomic Clock Input
1 x 10M Input @ 75 Ohms 1Vpp on BNC

Word Clock Outputs
2 x Outputs @ 75 Ohms 3Vpp on BNC 32 - 192kHz

Clocking System
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator

Clock stability
<+/-0.02 ppm, oven controlled at 64.5?C/ 148.1?F

Clock Aging
< 1 ppm per year

Clock Calibration
< +/-0.001 ppm

Sample Rates (kHz)
32, 44.1, 48, 88.2, 96, 176.4, 192

OTHER
Operating Temperature
0-50°C, 32-122°F

Weight
3.6kg / 8.0lb (approx)

Dimensions (Approx)
Width: 483mm / 19""
Height: 44mm/1.75""
Depth: 270mm / 10.63""

Electrical specs
AC Universal input: ~95-245 V
Power Consumption: 30 Watts Max

In the Box
32 HD | Gen 3 Portable Audio Interface
Warranty Card
1 USB 3.0 Cable
AC Power Cord

*For reported performance issues with 2020 Apple Mac models and compatibility with other Macs and operating systems, please refer to the manufacturer's website below.
Manufacturer's website information page

■MAC OS Compatibility and Optimization Information
The ""Reported Performance Issues with 2020 Apple Mac Models"" section at the bottom of the manufacturer's website below contains information about noise when used with 2020 Apple products.
Please also refer to the operating environment.
Manufacturer's website
https://jp.antelopeaudio.com/support/macos/
