SENNHEISER / 508567

A wireless set consisting of SENNHEISER's EM100 G4 receiver, SKM100 G4 transmitter, and MMD935 capsule. It can be used for a wide range of purposes, including vocals, instruments, and recording. Up to eight units can be used simultaneously.

■Features

- An all-purpose model that can be used for vocals, instruments, and recording
- Equipped with a high-end vocal microphone capsule
- Half-rack size receiver with B-type 30ch selection
- Up to 8 units can be used simultaneously
- Easy setup with infrared sync between transmitter and receiver
- Equipped with a scan function to avoid radio interference
- Receiver display shows remaining battery level of transmitter
- Receiver link function for quick frequency setting
- Lightweight handheld transmitter with AF mute switch
- Up to 8 hours of operation with 2 AA alkaline batteries
- Equipped with e 935-based cardioid dynamic capsule * EW 100 G4-935-S only

[Specifications of receiver EM100 G4]

Modulation: Wideband FM
Frequency range: 806.125-809.750 MHz
Receiving frequency: 30 frequencies, switching at 125kHz intervals
Receiving method: True diversity
Intermodulation attenuation: 65 dB or more
Blocking: 70 dB or more
Compander: Sennheiser HDX
Squelch: Low: 5 dBV, Middle: 15 dBμV, High: 25 dBμV
Pilot tone squelch: switchable on/off
Antenna input: 2 x BNC connector
AF output level (peak deviation, 1kHz): 6.3 mm jack: +12 dBu / XLR -3M: +18 dBu
AF output adjustment range: 48 dB (adjustable in 3 dB steps)
Signal-to-noise ratio (1mV, peak deviation): 110 dBA or more
Power supply: 12 V DC
Current consumption: 300 mA
Dimensions: approx. 190 x 212 x 43 mm
Weight: approx. 980 g
[Transmitter SKM100 G4 specifications]
Frequency range: 806.125-809.750 MHz
Transmitting frequency: 30 frequencies, switching at 125kHz intervals
RF output: 10 mW
Compander: Sennheiser HDX
Mute switch: AF mute, disabled, switchable
Pilot tone squelch: switchable on/off
Input sensitivity adjustment range: 48 dB (adjustable in 6 dB steps)
Signal-to-noise ratio (1mV, peak deviation): 110 dBA or more
Power supply: 2 1.5 V AA alkaline batteries or BA 2015 rechargeable battery
Operating time: typically 8 hours
Dimensions: approx. ? 50 x 265 mm
Weight (including microphone capsule and batteries): approx. 390 g

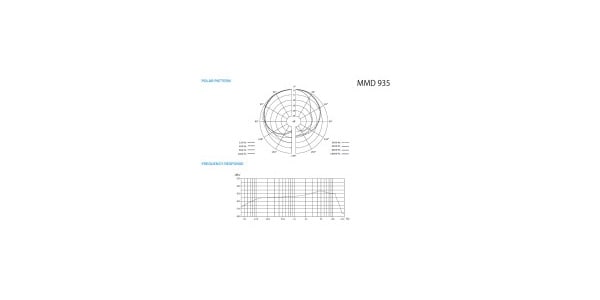

[Capsule MMD935 specifications]
Transducer principle: dynamic
Sensitivity: 2.5 mV/Pa
Maximum sound pressure level: 154 dB SPL
Pickup pattern: cardioid
■Package items:
EM 100 1 receiver
1 SKM 100-S transmitter
1 MMD 935 microphone capsule
1 microphone holder
1 AC adapter (NT 2-3)
2 rod antennas
1 GA 3 rack mount kit
1 data connection cable
2 dry batteries
