IMAGENICS / DVS-41

A 4-input, 1-output selector that supports 4K HDMI signals, DVI signals, and analog stereo audio.

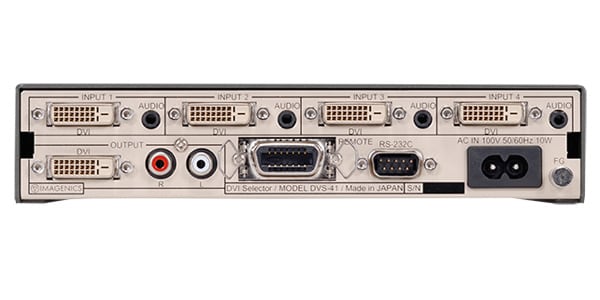

■4 Input 1 Output DVI Selector (HDCP Compatible)
■Video Input (*1): TMDS DVI-D x 4, DVI 25-165 MHz 24-bit, HDMI 25-300 MHz 24-36-bit (*2)
Video Output: TMDS DVI-D x 1
■Analog Audio Input: Stereo unbalanced 50 kΩ 3.5 mm mini stereo jack x 4, Maximum Input Level: 2.449 V (rms) (+10 dBu)
*1 When using the DVI and audio terminals simultaneously, use a cable with a DVI connector width of 40 mm or less and an audio connector thickness of 10 mm or less.
■Analog Audio Output: Stereo unbalanced, 150 Ω RCA pin jack (1 pair), Maximum Output Level: 2.449 V (rms) (+10 dBu)
■Analog Audio Frequency Response: +1/-3 dB from 20 Hz to 22 kHz
■Audio De-embedding: Supports linear PCM (16-bit to 24-bit / 16 kHz to 96 kHz) input
■Audio Distortion / Dynamic Range: Less than 0.033% / More than 90 dB
■Audio Quantization: 24-bit, 48 k samples/s
■Size: 210 (W) x 44 (H) x 230 (D) mm, 1.9 kg
*Not compatible with HDMI CEC, ARC, or HEAC functions
