IMAGENICS / SL-42C

A seamless matrix switcher that supports multi-signal with 4 video and audio inputs and 2 outputs.

The video input supports HDMI, DVI, analog RGB, analog component, composite video, and S-video signals, and each signal can be converted and output to HDMI, DVI, and IMG.Link.
Multi-Signal Seamless Matrix Switcher

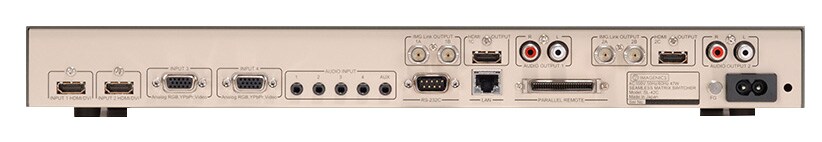

Video Inputs
■DMI/DVI: Supports resolutions from 480i to 1080p / VGA to UXGA and WUXGA (Reduced Blanking), Deep Color, HDCP, cable compensation, EDID emulator, two HDMI Type A 19-pin connectors
■Analog RGB: 0.7 V(p-p) 75 Ω (1.0 V(p-p) with Sync on Green) Sync Signal: HD/VD or CS TTL level, or Sync on Green, Supports resolutions from VGA to WUXGA, two DVI-I 29-pin connectors (with EDID emulator), two D-sub connectors
■Component: Y: 1.0 V(p-p), Pb(Cb)/Pr(Cr): 0.7 V(p-p), 480i supports ID-1, DVI-I 29 Two pin connectors, two D-sub connectors
■Composite/S-Video: Composite/Y: 1.0 V(p-p), C: 0.286 V(p-p), NTSC and PAL video signals (NTSC supports ID-1), two DVI-I 29-pin connectors, two D-sub connectors
Video Output
■HDMI/DVI: Supported resolutions: 480p to 1080p / VGA to UXGA and WUXGA (Reduced Blanking), Deep Color, HDCP compatible, two HDMI Type A 19-pin connectors
■IMG.Link Signal: Supported resolutions: 480p to 1080p, VGA to UXGA and WUXGA (Reduced Blanking), original re-encoded serial digital signal

1.0 V(p-p), 75 Ω, two BNC connectors Distribution, coaxial transmission distance approximately 110m with 5C-FB
Audio Input
■Linear PCM: 32 kHz to 192 kHz, 16-bit to 24-bit, up to 8 channels, two 19-pin HDMI Type A connectors
■Analog Unbalanced: 245 mV (rms) (-10 dBu), 50 kΩ or more, input level: 2.1 V (rms) (+8.8 dBu), four 2-channel φ3.5 stereo jacks, one auxiliary input
■Audio Output
Linear PCM: 48 kHz, 24-bit, up to 8 channels, two 19-pin HDMI Type A connectors, two BNC connectors (2x2 distribution)
■Analog Unbalanced: 245 mV (rms) (-10 dBu), 50 kΩ or more, input level: 2.1 V (rms) (+8.8 dBu), Four 2-channel φ3.5 stereo jacks, one auxiliary input
External Control: RS-232C, parallel, LAN, infrared (remote control sold separately)
Dimensions: 422 (W) x 44 mm (H) x 300 mm (D) (excluding protrusions) Approx. 4.2 kg
