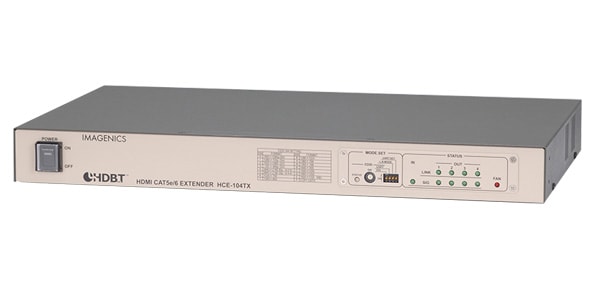

IMAGENICS / HCE-104TX

This converter transmitter converts HDMI signals into HDBaseT signals and distributes them to up to 4 devices, supporting 4K video!

Supports RS-232C and 100BASE-TX Ethernet overlay, allowing extension up to 150m. RS-232C allows bidirectional communication with output 1 or simultaneous unidirectional communication with all outputs. Ethernet allows communication between input and all four outputs. Equipped with EDID emulation function (15 built-in resolutions and a copy of the EDID of the device connected to output 1 can be used). Low latency. (Maximum 10 us at 100 m)
■HDMI/HDBaseT Converter Transmitter
■4K Signaling: TMDS Clock: 25 MHz to 300 MHz, Pixel Clock: 25 MHz to 600 MHz, Data Rate: 0.75 to 9 Gbps, HDCP: 1.4/2.2, Supported Resolutions: 4K60p 4:2:0 24-bit, 4K30p 4:4:4 24-bit, etc.
■Video Input Signal: TMDS Signal (Digital RGB/YPbPr HDMI 25 MHz to 300 MHz)

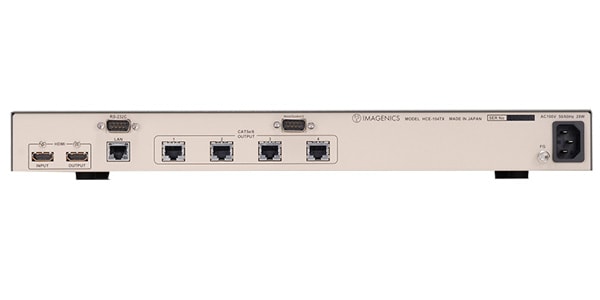

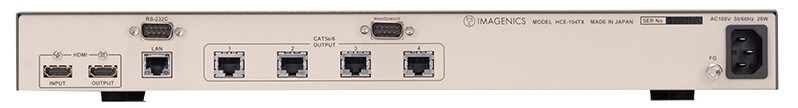

■Video Input Terminal: HDMI Type A 19-pin Connector (x1)
■Video Output Terminal: HDMI Type A 19-pin Connector (Active Through Output, CEC, HEC, and ARC not supported)
■Cat5e/6 Output Terminal: HDBaseT Signal RJ-45 (x1) Distribution
■RS-232C Input/Output: 1x D-sub 9-pin male (max 115200 bps, TXD/RXD/CTS/RTS)
■LAN Input/Output:
■RJ-45 1x 10BASE-T/100BASE-TX, Auto Negotiation, Auto MDI/MDI-X
■Transmission Distance: When using CAT-5e/6 STP, 150 m: When transmitting signals with a TMDS clock of 158 MHz or less and a data rate of 4.74 Gbps or less in long reach mode. 1080@60p (24-bit), WUXGA@60p (RB), etc.; 100 m: When transmitting signals with a TMDS clock of 225 MHz or less and a data rate of 6.75 Gbps or less. , 1080@60p (36bit), UXGA@60p, etc. ,70 m: Signals with a TMDS clock of 300 MHz or less and a data rate of 9 Gbps or less. Supports 4K@60p (4:2:0) and 1080@60p (48-bit), etc.
■Power Supply/Power Consumption: AC 100 V (50/60 Hz) / 28 W
■Accessories: 1 x 3P-3SL power cord (AC 100V, with locking mechanism), 1 x 3P-2P power adapter, 2 x HDMI connector retainers (CL-1), 2 x cable ties, 1 x set of EIA rack mount brackets
■Dimensions/Weight: 422 (W), 44 (H), 250 (D) (excluding protrusions) / Approx. 3.2 kg
*CEC is pass-through between input and output 1. HEC and ARC are not supported.
*For CAT5e/6 cables, please use STP cables (recommended, sold separately) that are less susceptible to electromagnetic waves and static electricity.
*HDCP for DVI-based signals is not supported.
