IMAGENICS / HCS-41

This switcher has 4 inputs and 1 output (2 distribution). Plug-and-play settings are possible for each input system with respect to the source device.

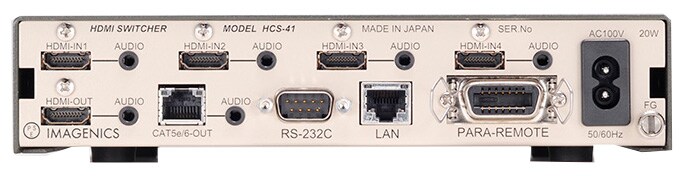

■4 Input, 1 Output Switcher
■4K Signal Format: TMDS Clock: 25 MHz to 300 MHz, Pixel Clock: 25 MHz to 600 MHz, Data Rate: 0.75 to 9 Gbps, HDCP: 1.4/2.2, Supported Resolutions: 4K60p 4:2:0 24-bit, 4K30p 4:4:4 24-bit, etc.
■Digital Video Input: HDMI-A Rev. 2.0 compliant 19-pin connector (4 channels)
■Digital Video Output: HDMI-A Rev. 2.0 compliant 19-pin connector (1 channel)
■CAT5e/6 Video Output: HDBaseT signal, RJ-45 (1 channel)
■Embedded Audio Input: 50 kΩ unbalanced, 2 channels, 4 channels (3.5mm mini stereo jack)
■De-embedded Audio Output: 150 Ω unbalanced, 2 channels, 2 channels 3.5mm mini stereo jack
■Maximum audio input level: +10 dBu
■Audio embedding: 48 kHz 24-bit linear PCM (2 channels)
■Audio de-embedding: 32 kHz to 48 kHz 24-bit linear PCM (2 channels), +1 dBu output at 0 dBFs
■Video delay: 1 ms or less
■External control: RS-232C (D-sub 9-pin male), parallel remote (Amphenol 14-pin female)
■Ethernet: RJ-45 (1 channel), 10BASE-T / 100BASE-TX (Auto Negotiation, Auto MDI/MDI-X)
■Accessories: Domestic power cable (2P-2S), power switch cover (SK-2)
■Dimensions: 210 (W) x 44.0 (H) x 23.0 (D) mm (excluding protrusions) Weight: Approx. 2.1 kg
*Using a high-power radio (transceiver) for business or leisure use nearby may cause temporary communication failure (interference), resulting in flickering of the image.
*For CAT5e/6 cables, please use an STP cable (sold separately, manufacturer-recommended cable) that is less susceptible to electromagnetic waves and static electricity.
*Does not support HDCP for DVI-based signals.
